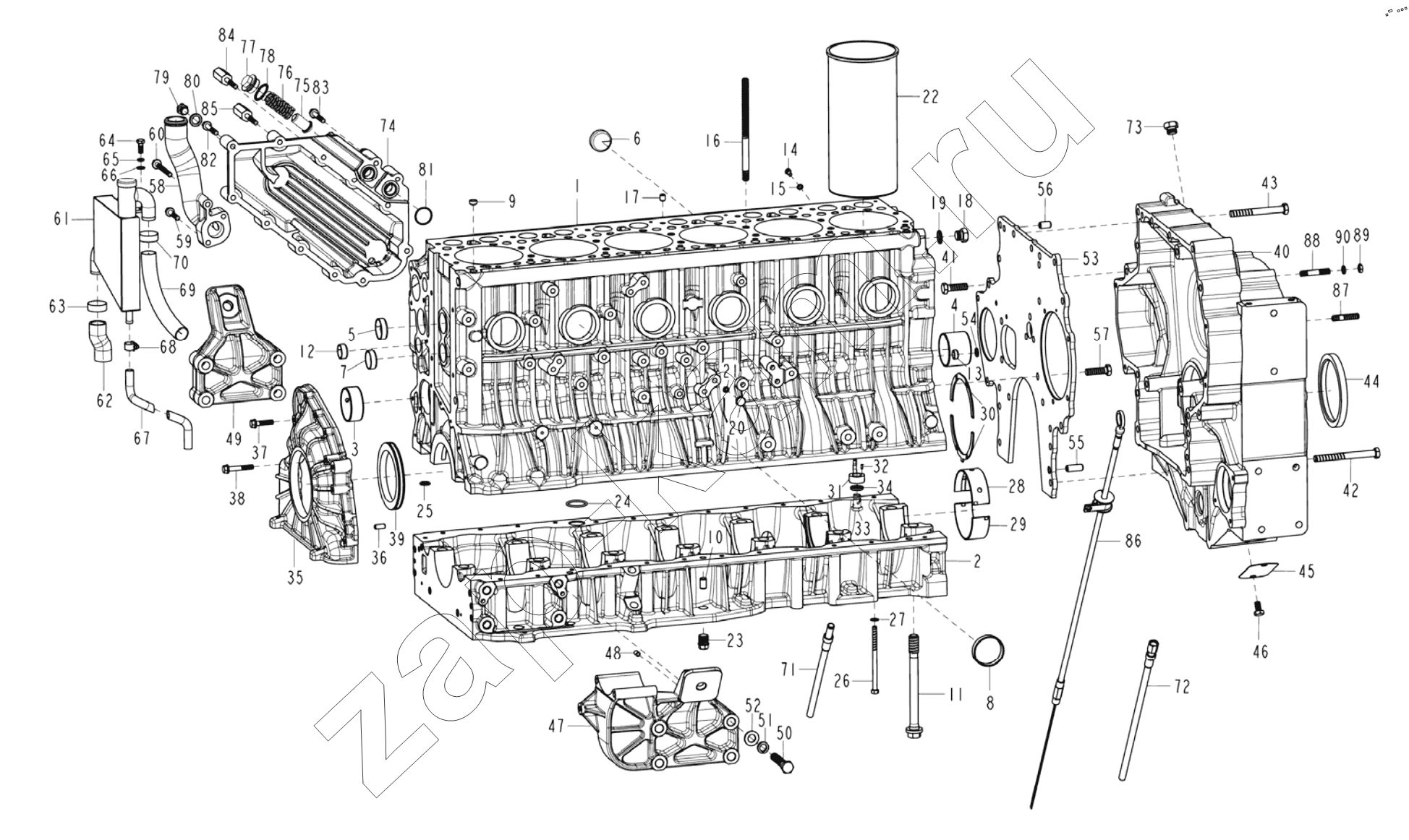

Cylinder Block
/ HOWO T12.38-30

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
Поз. Артикул Название детали T12.38-30 (HOWO)T12.42-30 (HOWO)T12.38-30 (A7)T12.42-30 (A7)
AZ1238010002 AZ1238010002 Cylinder block assembly 1111
VG1246070004 VG1246070004 Oil cooler cover assembly 1111
1 AZ1238010004 Cylinder block 1111
2 AZ1246010029 Crankcase 1111
3 VG1246010042 Camshaft bush 6666
4 VG1246010043 Camshaft bush 1111
5 190003989289 Core plug 9999
6 VG1246010044 Core hole plug 1111
7 VG1246010041 Core hole plug 2222
8 VG1246010046 Core hole plug 6666
9 VG1246010048 Core hole plug 2222
10 VG1246010032 Positioning pin 3333
11 VG1246010033 Main bearing bolt 14141414
12 190003989204 Core plug 2222
13 190003989480 Core plug 1111
14 Q617B08 Screw plug 1111
15 VG9003080002 Gasket 1111
16 VG1246010093 Stud 14141414
17 Q5211014 Dowel pin 12121212
18 Q617B18 Plug 3333
19 VG9003080007 Gasket 3333
20 VG1246010129 Socket plug 1111
21 VG9003080003 Washer 1111
22 VG1246010028 Cylinder liner 6666
23 VG1246010055 Screw plug 2222
24 VG1400010032 манжета 1111
25 VG1246010031 O-ring 1111
26 Q150B08125 Hex head bolt 24242424
27 Q41808 Пружинная шайба 24242424
28 VG1246010034 Crankshaft main bearing 7777
29 VG1246010035 Crankshaft main bearing 7777
30 VG1246010049 Oil injection nozzle assembly 6666
30 VG1246010036 Thrust washers 2222
31 VG1246010039 Oil injection nozzle assembly 6666
32 Q5280308 Spring dowel pin 6666
33 190003962621 Hollow bolt 6666
34 VG9003080005 Sealing washer 6666
35 VG1246010001A Front cover 1111
36 Q5210820 Шпилька 2222
37 Q1840835 Hex head bolt 7777
38 Q1840850 Hex head bolt 4444
39 VG1246010005 Front crankshaft oil seal 1111
40 AZ1246010019 Flywheel housing 1111
41 Q150B1240TF2 Screw 4444
42 Q150B12120TF2 Hex head bolt 11111111
43 Q150B12105TF2 Hex head bolt 2222
44 VG1047010050 Oil sealing 1111
45 VG1800210011 покрышка 1111
46 Q150B1018 болт 2222
47 VG1246010024 Support 1111
48 Q5210814 Штифт 2222
49 VG1246010023 Support 1111
50 Q150B1475TF2 Hex head bolt 8888
51 Q40314 Пружинная шайба 8888
52 Q40114 Шайба 8888
53 VG1246010025 Transition plate 1111
54 VG407010046 Washer 1111
55 Q5211232 Dowel pin 1111
56 Q5211222 Dowel pin 1111
57 Q150B1240TF2 Screw 4444
58 VG1246010085 Oil filler 1111
59 Q1840845 Hex head bolt 2222
60 Q1840890 Hex head bolt 1111
61 VG1246010086 Oil separator 1111
62 VG1246010100 Hose 1111
63 190003989301 Хомут 2222
64 Q150B0820 болт 2222
65 Q40308 Пружинная шайба 2222
66 Q40108 Шайба 2222
67 VG1246010101 Oil drain pipe 1111
68 190003989336 Хомут 2222
69 VG1246010102 Vent-pipe 1111
70 190003989301 Хомут 1111
71 VG1246010096 Oil drain pipe connector assembly 1111
72 VG2600010705 низкие агрегаты 1111
73 Q617B18 Plug 1111
74 VG1246070005A Oil cooler cover 1111
75 VG1246070006 Safety relief valve 1111
76 VG1246070007 Safety relief valve spring 1111
77 VG1246070008 Screw plug 1111
78 VG9003080012 Sealing washer 1111
79 190003962020 Plug 1111
80 VG9003080005 Sealing washer 1111
81 VG1246070010 O-ring 2222
82 Q1840855 Hex head bolt 7777
83 Q1840870 Hex head bolt 4444
84 VG1246070028 Support bolt 1111
85 VG1246070080 Support bolt 1111
86 VG1246150001 Oil dipstick assembly 1111
87 VG9003813543 Stud 10101010
88 Q1201045F3 Stud 2222
89 Q340B10 гайка 12121212
90 Q40310 Пружинная шайба 12121212
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
