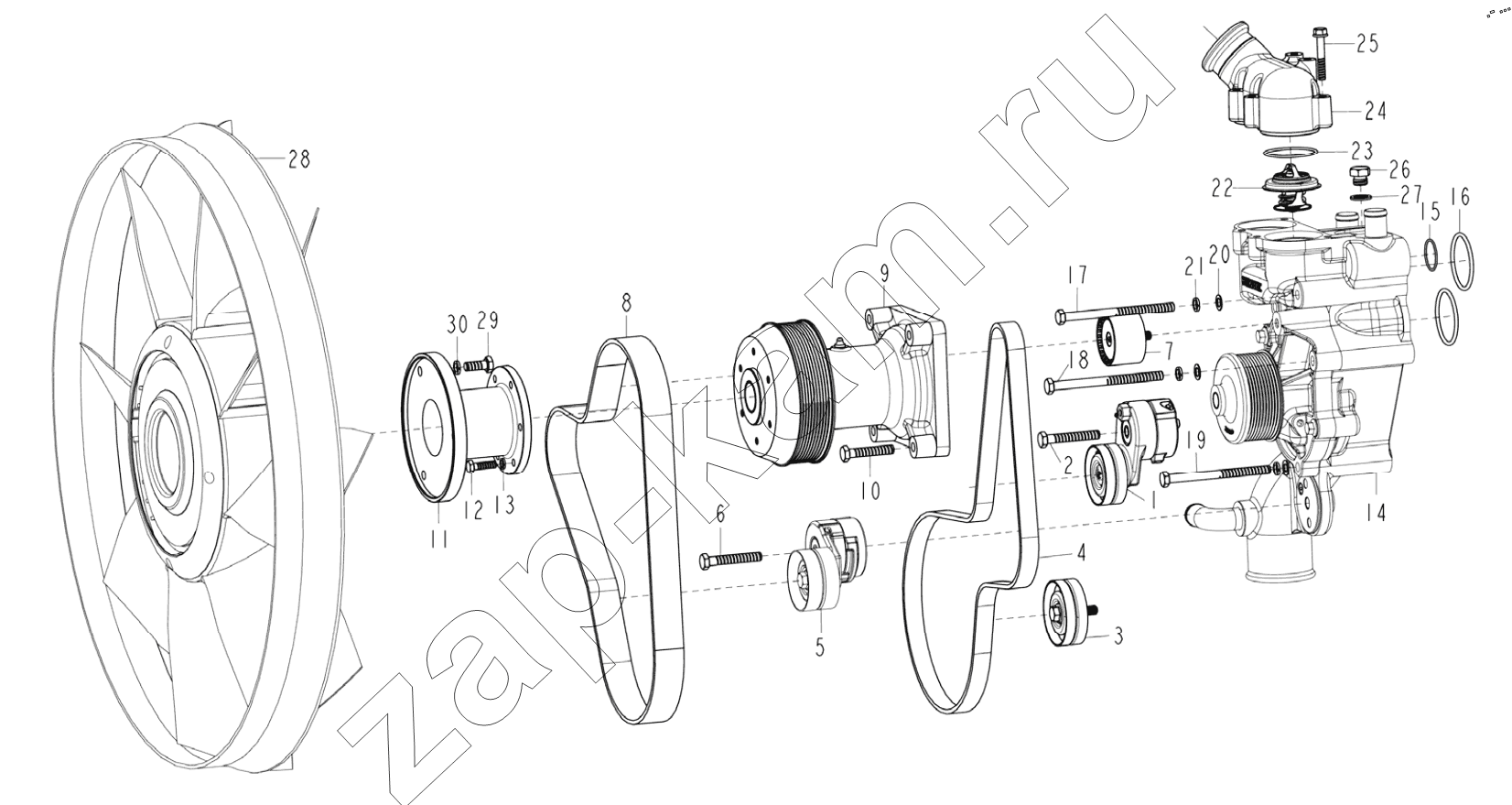

Water Pump and Cooling System
/ HOWO T12.38-30
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
28
29
30
| Поз. | Артикул | Название детали | T12.38-30 (HOWO) | T12.42-30 (HOWO) | T12.38-30 (A7) | T12.42-30 (A7) | |
|---|---|---|---|---|---|---|---|
| 1 | VG1246060005 | Automatic tensioning roller assembly | 1 | 1 | 1 | 1 | |
| 2 | Q150B1065TF2 | Hex head bolt | 1 | 1 | 1 | 1 | |
| 3 | VG1246060006 | Idle pulley | 1 | 1 | 1 | 1 | |
| 4 | VG1246060091 | Poly V belt | 1 | 1 | 1 | 1 | |
| 5 | VG1246060022 | Automatic tensioning roller assembly | 1 | 1 | 1 | 1 | |
| 6 | Q150B1070TF2 | Hex head bolt | 1 | 1 | 1 | 1 | |
| 7 | VG1246060057 | Idle pulley | 1 | 1 | 1 | 1 | |
| 8 | VG1246060088 | Poly V belt | 1 | 1 | 1 | 1 | |
| 9 | VG1246060070 | Fan support assembly | 1 | 1 | 1 | 1 | |
| 10 | Q150B1055 | болт | 4 | 4 | 4 | 4 | |
| 11 | VG1246060045 | Flange | 1 | 1 | |||
| 11 | VG1246060046A | Flange | 1 | 1 | |||
| 12 | Q150B0830 | болт | 6 | 6 | 6 | 6 | |
| 13 | Q40308 | Пружинная шайба | 6 | 6 | 6 | 6 | |
| 14 | VG1246060094 | Water pump assembly | 1 | 1 | 1 | 1 | |
| 15 | VG1246060027 | O-ring | 1 | 1 | 1 | 1 | |
| 16 | VG1246060028 | O-ring | 2 | 2 | 2 | 2 | |
| 17 | Q150B10150 | Hex head bolt | 3 | 3 | 3 | 3 | |
| 18 | Q150B10135 | Hex head bolt | 1 | 1 | 1 | 1 | |
| 19 | Q150B10125 | Hex head bolt | 1 | 1 | 1 | 1 | |
| 20 | Q40110 | Шайба | 5 | 5 | 5 | 5 | |
| 21 | Q40310 | Пружинная шайба | 5 | 5 | 5 | 5 | |
| 22 | VG1246060024 | Thermostat | 2 | 2 | 2 | 2 | |
| 22 | VG1246060029 | Thermostat | 2 | 2 | 2 | 2 | |
| 23 | VG1246060025 | O-ring | 2 | 2 | 2 | 2 | |
| 24 | VG1246060023 | Thermostat housing | 1 | 1 | 1 | 1 | |
| 25 | Q1840850 | Hex head bolt | 4 | 4 | 4 | 4 | |
| 26 | Q617B14 | Screw plug | 1 | 1 | 1 | 1 | |
| 27 | VG9003080005 | Sealing washer | 1 | 1 | 1 | 1 | |
| 28 | VG1246060030 | Si-Viscous fan-704 | 1 | 1 | |||
| 28 | VG1246060051 | Jet ring fan & viscous drive assembly | 1 | 1 | |||
| 29 | Q150B1025 | болт | 3 | 3 | 3 | 3 | |
| 30 | Q40310 | Пружинная шайба | 3 | 3 | 3 | 3 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
