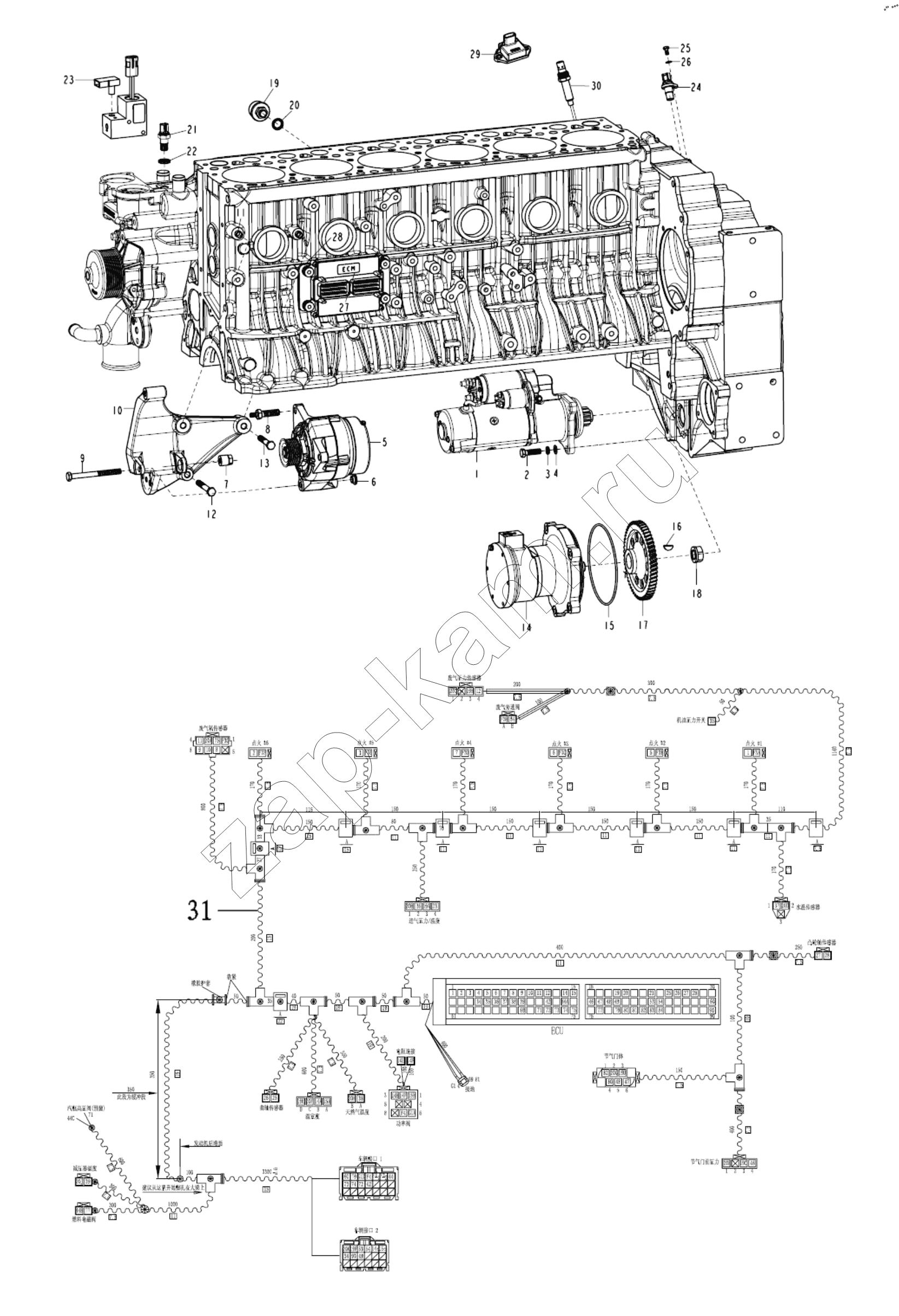

Electrical System
/ HOWO T12.42-30
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
| Поз. | Артикул | Название детали | T12.38-30 (HOWO) | T12.42-30 (HOWO) | T12.38-30 (A7) | T12.42-30 (A7) | |
|---|---|---|---|---|---|---|---|
| 1 | VG1246090002 | Starter motor | 1 | 1 | 1 | 1 | |
| 2 | Q150B1035 | Болт | 3 | 3 | 3 | 3 | |
| 3 | Q40310 | Пружинная шайба | 3 | 3 | 3 | 3 | |
| 4 | Q40110 | Шайба | 3 | 3 | 3 | 3 | |
| 5 | VG1246090017 | Alternator | 1 | 1 | 1 | 1 | |
| 6 | VG1246090006 | Bush | 1 | 1 | 1 | 1 | |
| 7 | VG1246090007 | Positioning nut | 1 | 1 | 1 | 1 | |
| 8 | VG1246090027 | Bolt | 1 | 1 | 1 | 1 | |
| 9 | Q150B10110 | Screw | 1 | 1 | 1 | 1 | |
| 10 | VG1246090008 | Bracket | 1 | 1 | 1 | 1 | |
| 11 | VG1246090009 | Positioning bush | 2 | 2 | 2 | 2 | |
| 12 | Q150B1075 | Hex bolt | 1 | 1 | 1 | 1 | |
| 13 | Q150B1060 | Hex bolt | 2 | 2 | 2 | 2 | |
| 14 | VG1238090003 | T12 signal installing assembly | 1 | 1 | 1 | 1 | |
| 15 | VG1246080027 | O-ring | 1 | 1 | 1 | 1 | |
| 16 | R61540080312 | ключ | 1 | 1 | 1 | 1 | |
| 17 | VG1246080029 | Gear | 1 | 1 | 1 | 1 | |
| 18 | VG1246130010 | Nut | 1 | 1 | 1 | 1 | |
| 19 | VG1092090311 | Oil pressure sensor | 1 | 1 | 1 | 1 | |
| 20 | VG9003080007 | Gasket | 1 | 1 | 1 | 1 | |
| 21 | R61540090004 | Cooling water temperature s | 1 | 1 | 1 | 1 | |
| 22 | VG9003080006 | Gasket | 1 | 1 | 1 | 1 | |
| 23 | VG1540090055 | Inlet pressure/temp sensor | 2 | 2 | 2 | 2 | |
| 24 | R61540090008 | датчик скоростей карданного вала | 1 | 1 | 1 | 1 | |
| 25 | Q150B0612 | болт | 1 | 1 | 1 | 1 | |
| 26 | Q41806 | Шайба | 1 | 1 | 1 | 1 | |
| 27 | VG1238090006 | ECM | 1 | 1 | 1 | 1 | |
| 28 | VG1238090009 | ECM braket | 1 | 1 | 1 | 1 | |
| 29 | VG1540090002 | Envirotech sensor | 1 | 1 | 1 | 1 | |
| 30 | VG1238090008 | BOSCH UEGO Sensor | 1 | 1 | 1 | 1 | |
| 31 | VG1238090101 | Wire harness | 1 | 1 | 1 | 1 | |
| 32 | Q150B1045TF2 | Hex head bolt | 2 | 2 | 2 | 2 | |
| 33 | Q150B1035TF2 | Hex head bolt | 2 | 2 | 2 | 2 | |
| 34 | VG1246080042 | Sealing washer | 4 | 4 | 4 | 4 | |
| 35 | VG1238090005 | Knock Sensor | 2 | 2 | 2 | 2 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
