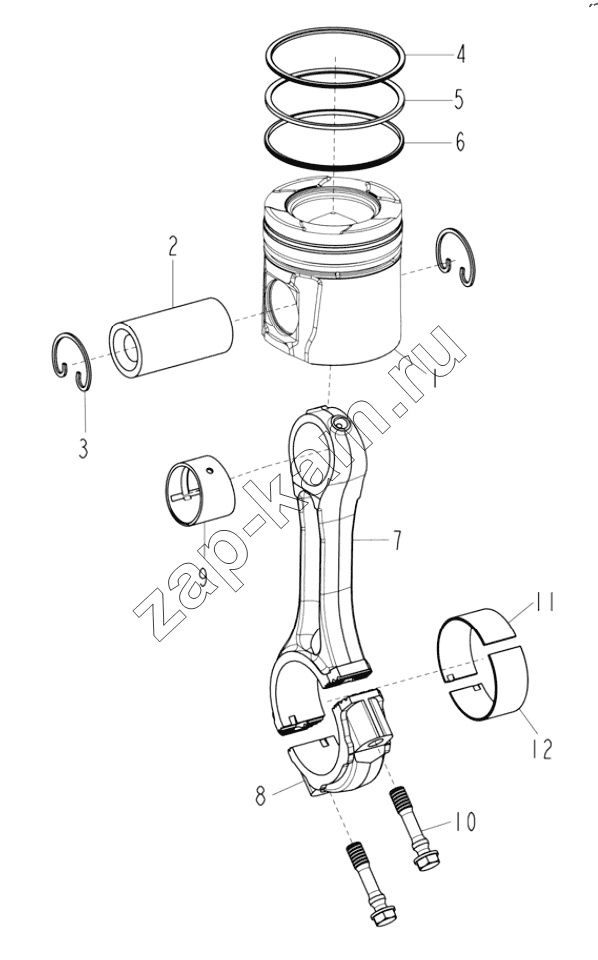

Piston and connecting Rod
/ HOWO T12.42-30
1
2
3
4
5
6
7
8
9
10
11
12
| Поз. | Артикул | Название детали | T12.38-30 (HOWO) | T12.42-30 (HOWO) | T12.38-30 (A7) | T12.42-30 (A7) | Цена | |
|---|---|---|---|---|---|---|---|---|
| AZ1246030007 | AZ1246030007 | Connecting rod assembly | 6 | 6 | 6 | 6 | - | |
| 1 | VG1238030001 | Piston | 6 | 6 | 6 | 6 | - | |
| 2 | VG1246030002 | Piston pin | 6 | 6 | 6 | 6 | - | |
| 3 | VG1246030003 | Retaining ring | 12 | 12 | 12 | 12 | - | |
| 4 | VG1540030022 | Double ladder ring | 6 | 6 | 6 | 6 | - | |
| 5 | VG1540030006 | кольцо | 6 | 6 | 6 | 6 | - | |
| 6 | VG1540030024 | Oil ring | 6 | 6 | 6 | 6 | - | |
| 7 | AZ1246030008 | Connecting rod | 6 | 6 | 6 | 6 | - | |
| 8 | AZ1246030009 | Connecting rod cover | 6 | 6 | 6 | 6 | - | |
| 9 | VG1246030010 | Connecting rod bush | 6 | 6 | 6 | 6 | - | |
| 10 | VG1246030013 | Connecting rod bolt | 12 | 12 | 12 | 12 | - | |
| 11 | VG1246030011 | Connecting rod bearing | 6 | 6 | 6 | 6 | - | |
| 12 | VG1246030012 | Connecting rod bearing | 6 | 6 | 6 | 6 | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
