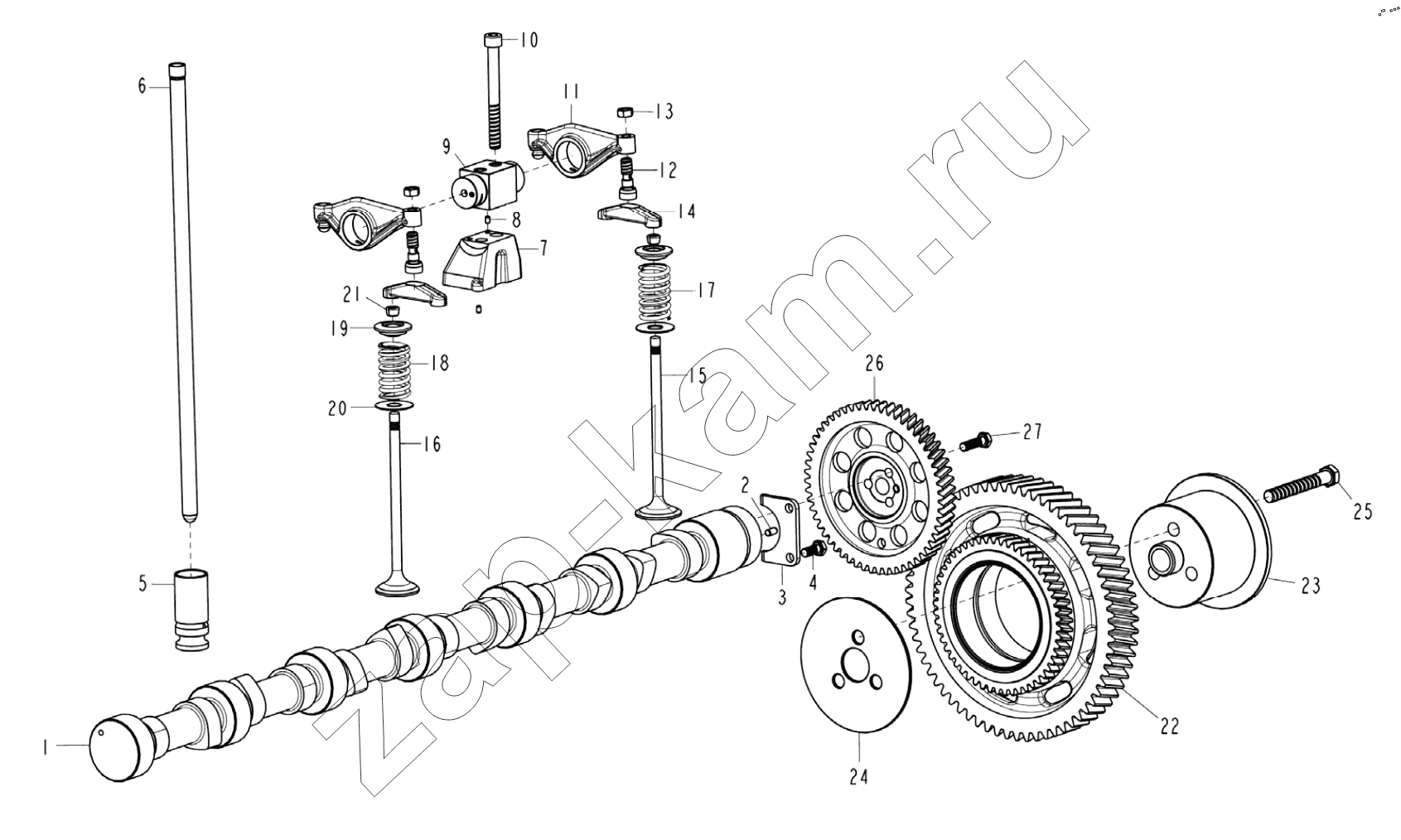

Valve-Gear Mechanism
/ HOWO T12.42-30
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
| Поз. | Артикул | Название детали | T12.38-30 (HOWO) | T12.42-30 (HOWO) | T12.38-30 (A7) | T12.42-30 (A7) | |
|---|---|---|---|---|---|---|---|
| VG1246050001 | VG1246050001 | Camshaft assembly | 1 | 1 | 1 | 1 | |
| 1 | VG1246050038 | Camshaft | 1 | 1 | 1 | 1 | |
| 2 | Q5210612 | Dowel pin | 1 | 1 | 1 | 1 | |
| 3 | VG1246050039 | Thrust flange | 1 | 1 | 1 | 1 | |
| 4 | Q150B0820TF2 | Hex head bolt | 2 | 2 | 2 | 2 | |
| 5 | VG1246050029 | Valve tappet | 12 | 12 | 12 | 12 | |
| 6 | VG1246050020 | Valve push rod | 12 | 12 | 12 | 12 | |
| 7 | VG1246050005 | Rocker arm support | 6 | 6 | 6 | 6 | |
| 8 | Q5210406 | Dowel pin | 24 | 24 | 24 | 24 | |
| 9 | VG1246050006 | Rocker arm shaft assembly | 6 | 6 | 6 | 6 | |
| 10 | Q150B10100TF2 | Hex head bolt | 12 | 12 | 12 | 12 | |
| 11 | VG1246050008 | Rocker arm assembly | 12 | 12 | 12 | 12 | |
| 12 | VG1246050011 | Valve setting screw | 12 | 12 | 12 | 12 | |
| 13 | VG2130050065 | Клапан очистки регулировочную гайку | 12 | 12 | 12 | 12 | |
| 14 | VG1246050013 | Valve bridge | 12 | 12 | 12 | 12 | |
| 15 | VG1246050021 | Intake valve | 12 | 12 | 12 | 12 | |
| 16 | VG1246050022 | Exhaust valve | 12 | 12 | 12 | 12 | |
| 17 | VG1246050023 | Intake valve spring | 12 | 12 | 12 | 12 | |
| 18 | VG1246050064 | Exhaust valve spring | 12 | 12 | 12 | 12 | |
| 19 | VG1246050025 | Spring cup | 24 | 24 | 24 | 24 | |
| 20 | VG1246050026 | Spring seat | 24 | 24 | 24 | 24 | |
| 21 | VG1246050028 | Valve cone | 48 | 48 | 48 | 48 | |
| 22 | VG1246050060 | Idle gear assembly | 1 | 1 | 1 | 1 | |
| 23 | VG1246050034 | Idle gear axle | 1 | 1 | 1 | 1 | |
| 24 | VG1246050035 | Thrust washer | 1 | 1 | 1 | 1 | |
| 25 | Q150B1290TF2 | Hex head bolt | 3 | 3 | 3 | 3 | |
| 26 | VG1246050036 | Camshaft gear | 1 | 1 | 1 | 1 | |
| 27 | Q150B0830TF2 | Hex head bolt | 3 | 3 | 3 | 3 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
