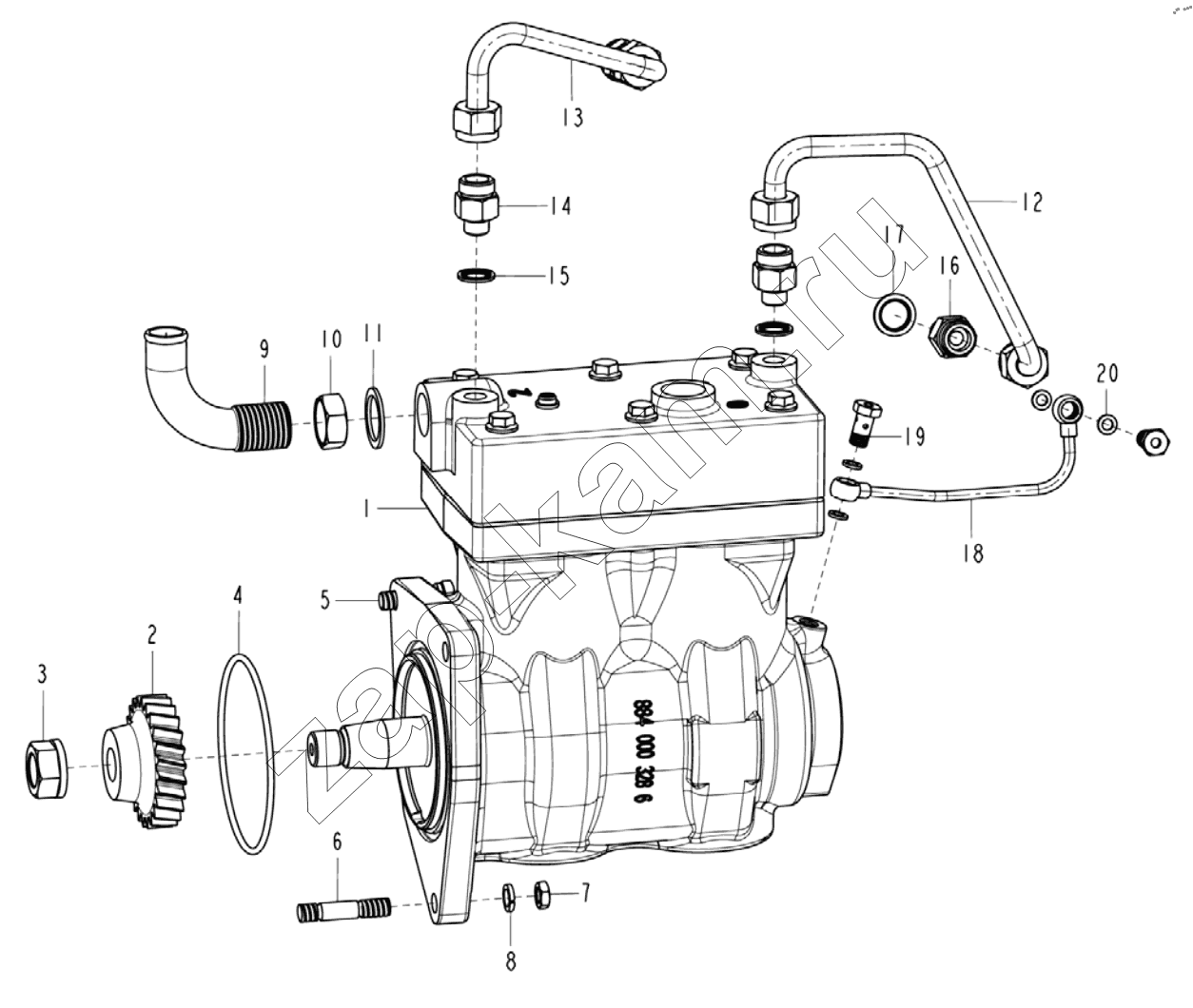

Water-cooled air compressor
/ HOWO T12.42-30
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
| Поз. | Артикул | Название детали | T12.38-30 (HOWO) | T12.42-30 (HOWO) | T12.38-30 (A7) | T12.42-30 (A7) | Цена | |
|---|---|---|---|---|---|---|---|---|
| 1 | VG1246130008 | Air compressor | 1 | 1 | 1 | 1 | - | |
| 2 | VG1246130009 | Air compressor gear | 1 | 1 | 1 | 1 | - | |
| 3 | VG1246130010 | Nut | 1 | 1 | 1 | 1 | - | |
| 4 | VG1246130012 | O-ring | 1 | 1 | 1 | 1 | - | |
| 5 | Q150B1030 | болт | 1 | 1 | 1 | 1 | - | |
| 6 | Q1201040F3 | Stud | 2 | 2 | 2 | 2 | - | |
| 7 | Q340B10 | гайка | 2 | 2 | 2 | 2 | 80 ₽ | |
| 8 | Q40310 | Пружинная шайба | 3 | 3 | 3 | 3 | - | |
| 9 | VG1246130016 | Joint | 1 | 1 | 1 | 1 | - | |
| 10 | 190003559778 | Nut | 1 | 1 | 1 | 1 | - | |
| 11 | VG2600130037 | Washer | 1 | 1 | 1 | 1 | - | |
| 12 | VG1246130023 | Water supply pipe assembly | 1 | 1 | 1 | 1 | - | |
| 13 | VG1246130024 | Water drain pipe assembly | 1 | 1 | 1 | 1 | - | |
| 14 | VG1246130025 | Pipe connector | 2 | 2 | 2 | 2 | - | |
| 15 | VG9003080005 | Sealing washer | 2 | 2 | 2 | 2 | - | |
| 16 | VG1246130026 | Pipe connector | 2 | 2 | 2 | 2 | - | |
| 17 | VG9003080006 | Gasket | 2 | 2 | 2 | 2 | - | |
| 18 | VG1246130006 | Oil supply pipe assembly | 1 | 1 | 1 | 1 | - | |
| 19 | 190003962607 | Female Screw | 2 | 2 | 2 | 2 | - | |
| 20 | VG9003080003 | Washer | 4 | 4 | 4 | 4 | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
