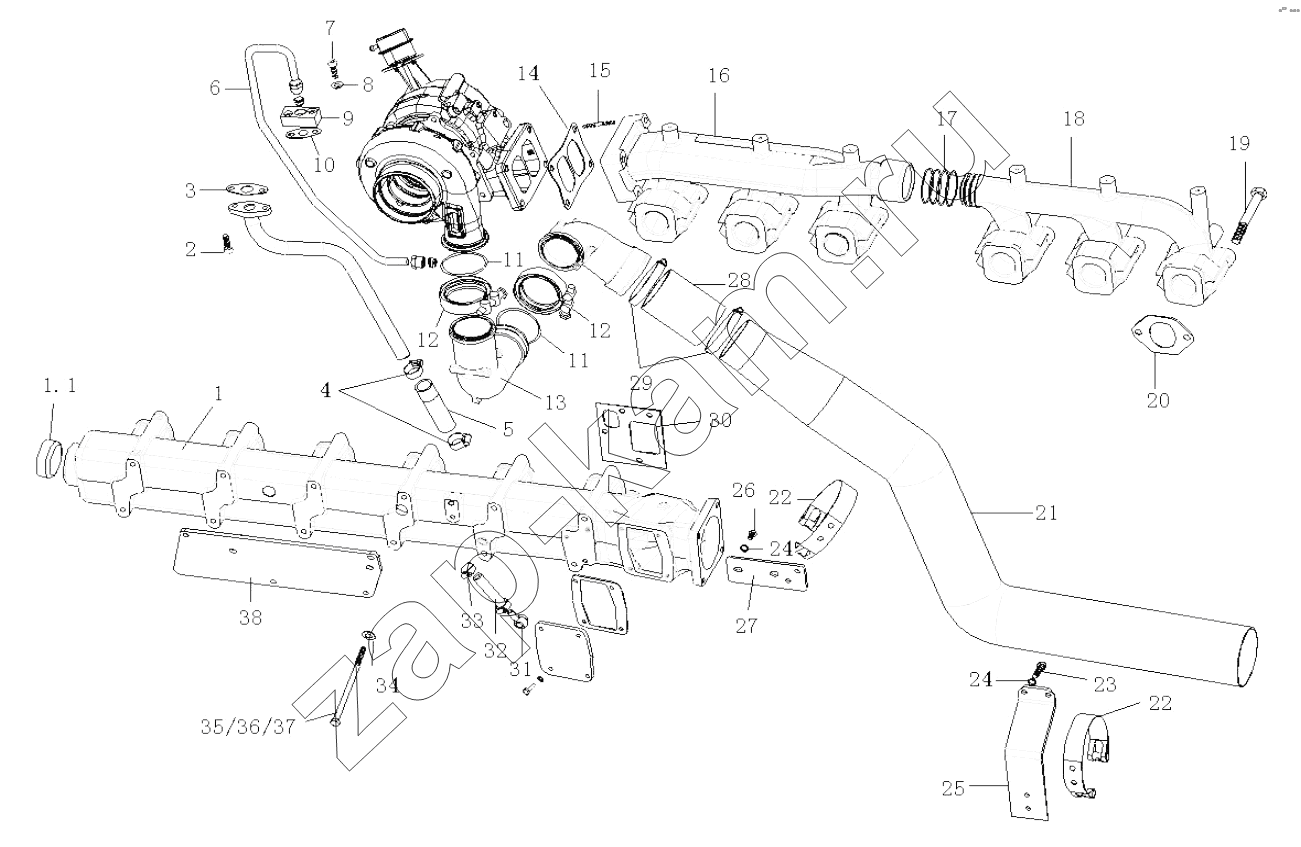

Intake and Exhaust Manifold
/ HOWO WD615.47
1
1.1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
17
18
19
20
21
22
22
23
24
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | VG2600110812 | Intake manifold assy | 1; | - | |
| 1.1 | 190003989286 | Shim | 1; | - | |
| 2 | VG1460070014 | Болт | 2; | - | |
| 3 | VG2600110048 | подкладка фланеца | 1; | - | |
| 4 | 190003989340 | Стопорное кольцо | 2; | - | |
| 5 | VG2600070071 | Шланг | 1; | - | |
| 6 | VG1095110143 | Tube assembly | 1; | - | |
| 7 | 190003862428 | Screw | 2; | - | |
| 8 | VG188250083 | Стопорное кольцо | 4; | - | |
| 9 | VG1560110152 | Соединительная планка | 1; | - | |
| 10 | VG1500110024 | Прокладка | 1; | - | |
| 11 | VG190320035 | Прокладка | 2; | - | |
| 12 | VG1560110226 | Прокладка | 2; | - | |
| 13 | VG1800110045 | Tube | 1; | - | |
| 14 | VG1560110210 | Соединительная планка | 1; | - | |
| 15 | VG1560110241 | Болт | 4; | - | |
| 16 | VG2600111136 | Exhaust manifold | 1; | - | |
| 17 | VG260110162 | Поршневое кольцо | 4; | - | |
| 18 | VG2600111137 | Exhaust manifold | 1; | - | |
| 19 | VG2600111052 | Bolt | 12; | - | |
| 20 | VG1560110111 | Прокладка | 6; | - | |
| 21 | VG1047110115 | Tube | 1; | - | |
| 22 | VG1096110025 | Clamp | 2; | - | |
| 23 | 190003802419 | Screw | 4; | - | |
| 24 | 190003932023 | Spring washer | 4; | - | |
| 25 | VG1047110117 | Plate | 1; | - | |
| 26 | 190003802411 | Bolt | 4; | - | |
| 27 | VG1047110102 | Bracket | 1; | - | |
| 28 | VG1047110103 | Hose | 1; | - | |
| 29 | VG9003980003 | Clamp | 2; | - | |
| 30 | VG1500110024 | Прокладка | 6; | - | |
| 31 | VG1540110038 | Nozzle | 1; | - | |
| 32 | VG1540110035 | Hose | 1; | - | |
| 33 | 190003989300 | Хомут | 2; | - | |
| 34 | 190003932023 | Spring washer | 12; | - | |
| 35 | VG1540110025 | болт | 4; | - | |
| 36 | 190003800497 | Болт | 6; | - | |
| 37 | VG1540110054 | болт | 2; | - | |
| 38 | VG1099110115 | Bracket assembly | 1; | - | |
| 39 | VG2600111429 | Stud | 4; | - | |
| 40 | 190003802331 | Bolt | 4; | - | |
| 41 | 190003931082 | Spring washer | 4; | - | |
| 42 | VG2600111142 | Cover | 1; | - | |
| 43 | VG2600111143 | Cover | 1; | - | |
| 44 | 190014320002 | Washer | 12; | - | |
| 45 | VG2600110963 | Screw | 12; | - | |
| 46 | Q150B0615 | болт | 2; | - | |
| 47 | 190014350003 | Spring washer | 2; | - | |
| 48 | VG1034110100 | Clamp | 1; | - | |
| 49 | VG1540110211 | Block | 2; | - | |
| 50 | 190003932023 | Spring washer | 6; | - | |
| 51 | Q150B0860 | болт | 2; | - | |
| 52 | Q40108 | Шайба | 2; | - | |
| 53 | Q40308 | Пружинная шайба | 2; | 10 ₽ - 60 ₽ | |
| 54 | Q218B0815 | Screw | 4; | - | |
| 55 | VG1095110051 | Plate | 1; | - | |
| 56 | VG1540110053 | Bracket | 1; | - | |
| 57 | VG1096119055 | Bracket | 1; | - | |
| 58 | VG1047090092 | Bracket | 1; | - | |
| 59 | VG1540110037 | Hollow bolt | 1; | - | |
| 60 | VG9003080003 | Washer | 2; | - | |
| 61 | VG2600110457 | Gasket | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
