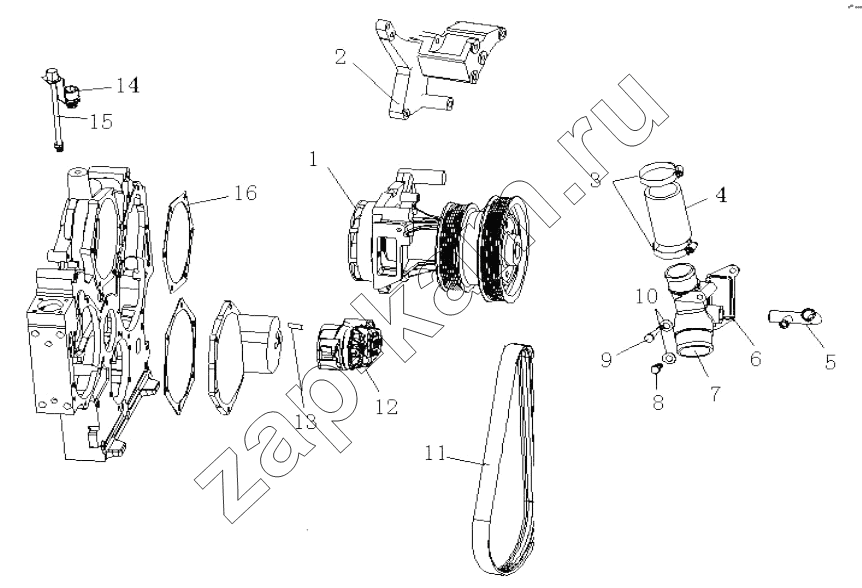

Water Pump and Fan
/ HOWO WD615.47
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | VG1500060051 | Water pump assembly | 1; | |
| 2 | VG1500130018 | Опора кондиционера | 1; | |
| 3 | Q150B1075TF2 | Bolt | 1; | |
| 4 | VG61000060276 | Патрубок | 1; | |
| 5 | VG1560060004 | Pipe connecting piece | 1; | |
| 6 | VG14060024 | Gasket | 1; | |
| 7 | VG1560060023 | Connector | 1; | |
| 8 | 190003802424 | Screw | 1; | |
| 9 | 190003800467 | Screw | 1; | |
| 10 | 190003932023 | Spring washer | 2; | |
| 11 | VG1069020010 | Belt for water pump | 1; | |
| 12 | VG2600060313 | Tensioning roller | 1; | |
| 13 | Q5211022 | Pin | 1; | |
| 14 | Q150B1625 | Bolt | 1; | |
| 15 | VG2600060460 | Grease nozzle | 1; | |
| 16 | VG140608 | Gasket | 1; | |
| 17 | 190003802424 | Screw | 6; | |
| 18 | 190003888451 | Nut | 6; | |
| 19 | 190003989308 | Hose clip | 2; | |
| 20 | 190003802432 | Bolt | 1; | |
| 21 | 190014040007 | Washer | 1; | |
| 22 | 190014040008 | Washer | 1; | |
| 23 | 190003800575 | Bolt | 1; | |
| 24 | 190014070002 | Washer | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
