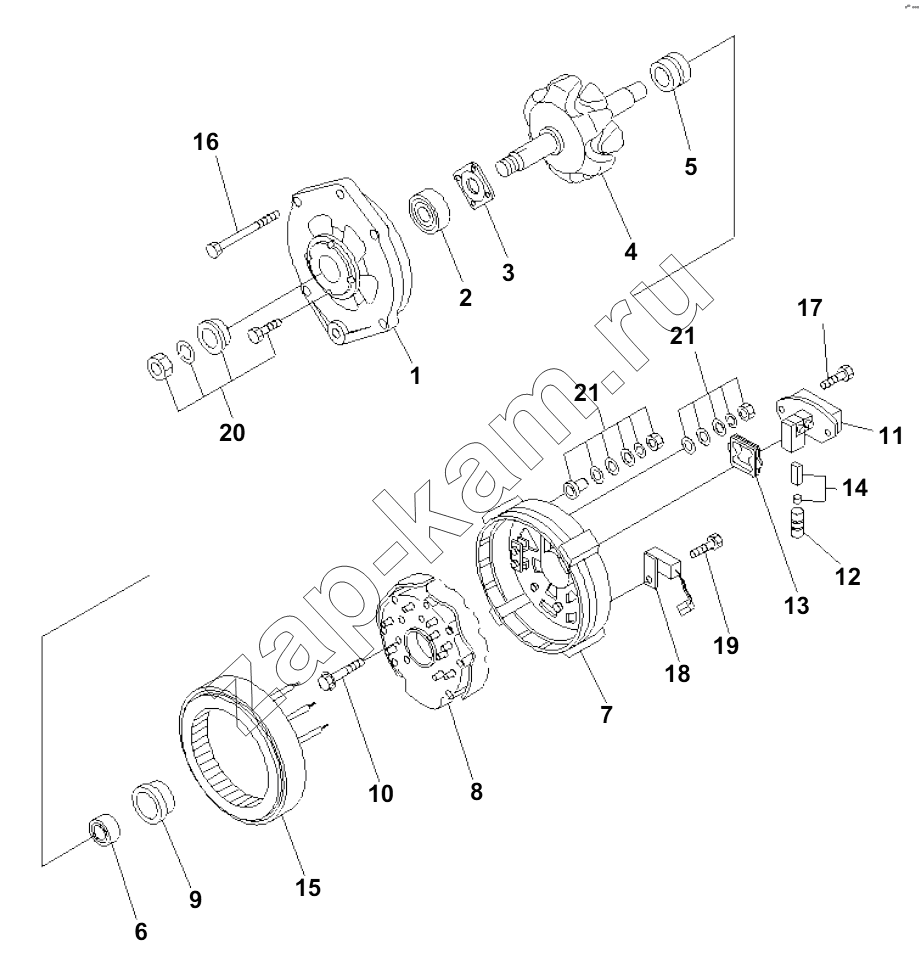

ALTERNATOR (INNER PARTS)
/ Komatsu SA4D102E-1AB
6735-81-6110
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 6735-81-6110 | 6735-81-6110 | Alternator | 1; | |
| 1 | 20Y-01-K1510 | Cover | 1; | |
| 2 | 20Y-01-K1520 | Bearing | 1; | |
| 3 | 20Y-01-K1530 | Plate | 1; | |
| 4 | 20Y-01-K1540 | Rotor assembly | 1; | |
| 5 | 20Y-01-K1550 | Collar | 1; | |
| 6 | 20Y-01-K1560 | Bearing, ball | 1; | |
| 7 | 20Y-01-K1570 | Cover | 1; | |
| 8 | 20Y-01-K1580 | Rectifier | 1; | |
| 9 | 20Y-01-K1590 | Guard | 1; | |
| 10 | 20Y-01-K1610 | Screw | 1; | |
| 11 | 20Y-01-K1620 | Regulator | 1; | |
| 12 | 20Y-01-K1630 | Spring | 1; | |
| 13 | 20Y-01-K1640 | Gasket | 1; | |
| 14 | 20Y-01-K1650 | Brush assembly | 1; | |
| 15 | 20Y-01-K1660 | Stator | 1; | |
| 16 | 20Y-01-K1670 | Screw | 1; | |
| 17 | 20Y-01-K1680 | Screw | 1; | |
| 18 | 20Y-01-K1690 | Suppressor | 1; | |
| 19 | 20Y-01-K1710 | Screw | 1; | |
| 20 | 20Y-01-K1720 | Armature assembly | 1; | |
| 21 | 20Y-01-K1730 | Terminal assembly | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
