BELT TENSIONER
/ Komatsu SA4D102E-1AB

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано SA4D102E-1AB (2015) SAA4D102E-2-PW (2015) SAA4D107E-1A (2015)

Схема > Не выбрано CYLINDER HEAD HEAD GASKET REAR HANGER HEAD COVER AIR INTAKE HEATER AFTER COOLER WATER PIPING EXHAUST CONNECTOR CLAMP TURBOCHARGER MOUNTING (#21271444-) TURBOCHARGER (INNER PARTS) (#21271444-) EXHAUST MANIFOLD AND AFTER COOLER TURBOCHARGER LUBRICATING THERMOSTAT HOUSING THERMOSTAT WATER TEMPERATURE SENSOR CYLINDER BLOCK FRONT COVER CAMFOLLOWER COVER CYLINDER BLOCK BLIND PLUG OIL PAN AND SUCTION TUBE OIL PAN BOLT OIL LEVEL GAUGE FLYWHEEL HOUSING FLYWHEEL CRANKSHAFT PISTON AND CONNECTING ROD (#21271444-) CRANK PULLEY ACCESSORY PULLEY (FOR AIR CONDITIONER) ROCKER ARM CAMSHAFT TAPPETS FRONT GEAR TRAIN COVER TACHOMETER DRIVE COVER UNDER PLATE LUBRICATING OIL PUMP OIL PRESSURE SWITCH OIL COOLER AND OIL FILTER FUEL INJECTION PUMP (#21271444-) BOOST TUBE FUEL INJECTION PUMP MOUNTING INJECTION PIPING FUEL FILTER FUEL PIPING FUEL LIFT PUMP (#21271444-) INJECTION NOZZLE (#21271444-) FUEL DRAIN CONNECTOR SHUTOFF VALVE WATER PUMP WATER CONNECTOR WATER CONNECTOR PLUG FAN DRIVE PULLEY FAN PULLEY BOLT FAN SPACER BELT TENSIONER ALTERNATOR ALTERNATOR (INNER PARTS) ALTERNATOR SUPPORT STARTING MOTOR STARTING MOTOR MOUNTING NAME PLATE

6732-61-3960

1

2

3

4

5

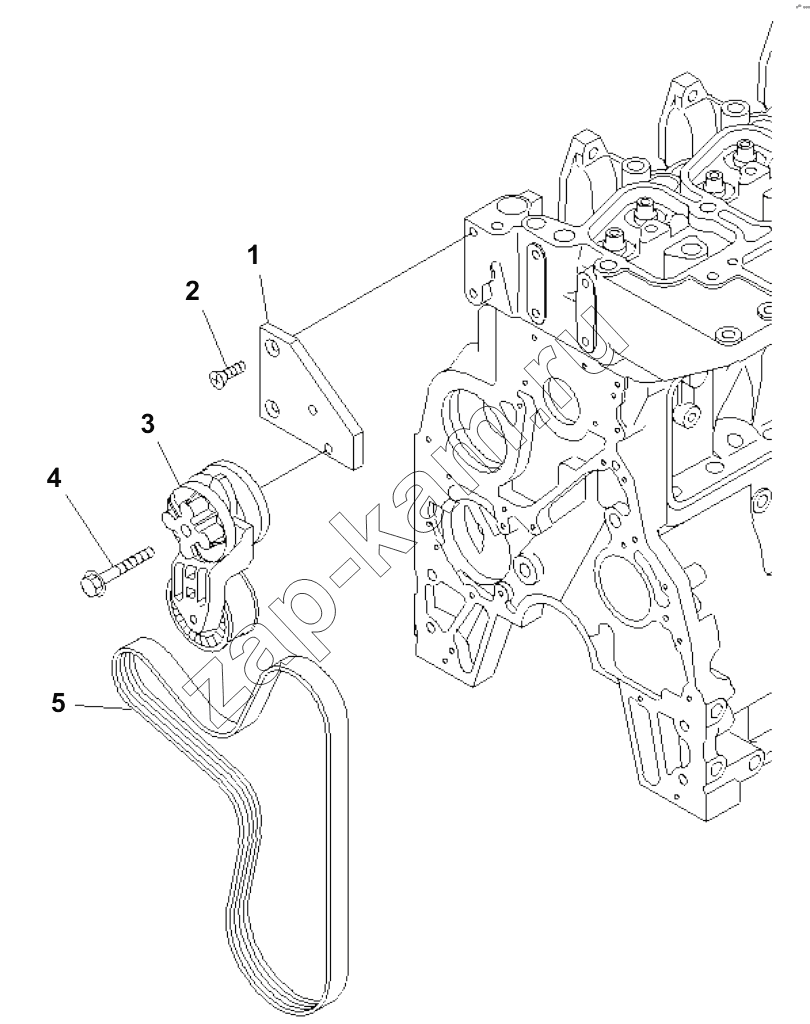

Поз.	Артикул		Название детали	Кол-во
6732-61-3960	6732-61-3960		Belt	1;
1	6733-81-6250		Bracket, belt tensioner	1;
2	6732-61-4220		SCREW	2;
3	6742-01-3810		Tensioner	1;
4	6732-61-4710		Bolt	1;
5	6732-61-4170		BELT	1;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
