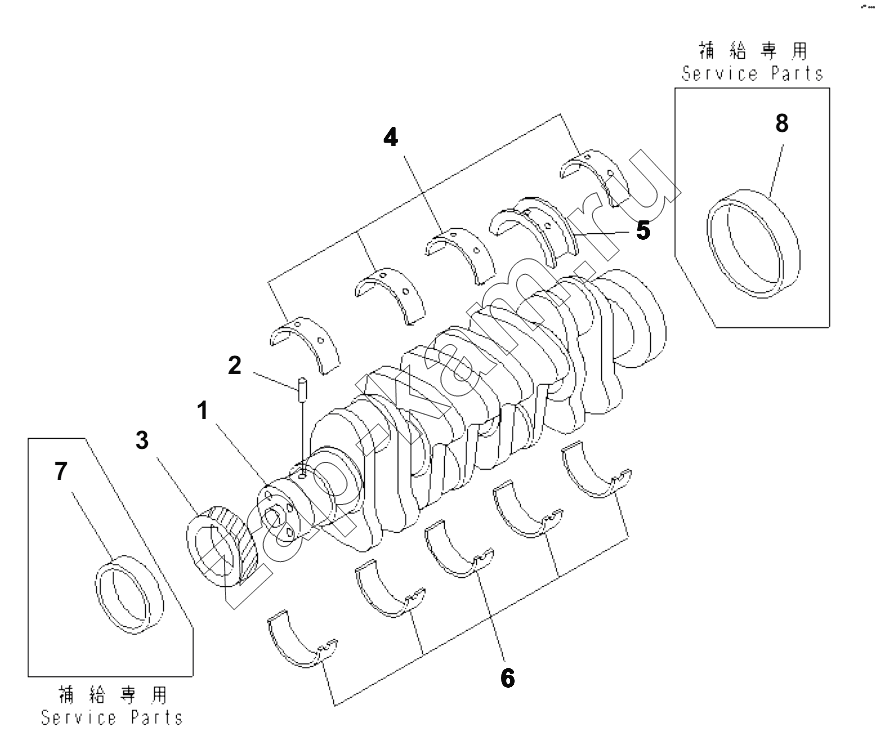

CRANKSHAFT
/ Komatsu SA4D102E-1AB
6732-31-1100
6736-28-8700
6736-29-8700
6732-25-8100
6732-26-8100
6732-27-8100
6732-28-8100
6732-29-8110
1
2
3
4
4
4
4
4
5
5
5
5
5
5
5
6
6
6
6
6
6
6
7
8
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 6732-31-1100 | 6732-31-1100 | Crankshaft assembly | 1; | |
| 6736-28-8700 | 6736-28-8700 | THRUST METAL ASSY | 1; | |
| 6736-29-8700 | 6736-29-8700 | THUST METAL ASSY | 1; | |
| 6732-25-8100 | 6732-25-8100 | Main bearing assembly | 1; | |
| 6732-26-8100 | 6732-26-8100 | Main bearing assembly | 1; | |
| 6732-27-8100 | 6732-27-8100 | Main bearing assembly | 1; | |
| 6732-28-8100 | 6732-28-8100 | Main bearing assembly | 1; | |
| 6732-29-8110 | 6732-29-8110 | Main bearing assembly | 1; | |
| 1 | 6732-31-1111 | Crankshaft | 1; | |
| 2 | 6732-21-6150 | PIN | 1; | |
| 3 | 6732-31-1220 | Gear, crankshaft | 1; | |
| 4 | 6735-28-8110 | Metal, upper | 4; | |
| 4 | 6735-21-8110 | Metal, upper | 4; | |
| 4 | 6735-26-8110 | Metal, upper | 4; | |
| 4 | 6735-29-8110 | Metal, upper | 4; | |
| 4 | 6735-27-8110 | Metal, upper | 4; | |
| 5 | 6736-26-8140 | Metal, thrust | 1; | |
| 5 | 6736-27-8140 | Metal, thrust | 1; | |
| 5 | 6736-29-8730 | Metal, thrust | 1; | |
| 5 | 6736-28-8720 | Metal, thrust | 1; | |
| 5 | 6736-28-8120 | Metal, thrust | 1; | |
| 5 | 6736-29-8140 | Metal, thrust | 1; | |
| 5 | 6732-21-8180 | Metal, thrust | 1; | |
| 6 | 6735-26-8210 | Metal, lower | 1; | |
| 6 | 6735-28-8210 | Metal, lower | 1; | |
| 6 | 6735-21-8210 | Metal, lower | 5; | |
| 6 | 6735-26-8210 | Metal, lower | 5; | |
| 6 | 6735-27-8210 | Metal, lower | 5; | |
| 6 | 6735-28-8210 | Metal, lower | 5; | |
| 6 | 6735-29-8210 | Metal, lower | 5; | |
| 7 | 6736-39-1220 | SLEEVE, WEAR | 1; | |
| 8 | 6736-39-1120 | Sleeve, rear | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
