FUEL LIFT PUMP
/ Komatsu SAA4D102E-2-PW

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано SA4D102E-1AB (2015) SAA4D102E-2-PW (2015) SAA4D107E-1A (2015)

Схема > Не выбрано CYLINDER HEAD HEAD GASKET COOLANT PLUG HANGER HEAD COVER AIR INTAKE MANIFOLD AIR INTAKE HEATER AIR INTAKE CONNECTOR AIR INTAKE CONNECTOR MOUNTING AIR INTAKE HEATER AIR TRANSHER CONNECTOR EXHAUST MANIFOLD EXHAUST MANIFOLD MOUNTING TURBOCHARGER MOUNING HEAT SHIELD TURBOCHARGER LUBRICATING THERMOSTAT HOUSING THERMOSTAT WATER TEMPERATURE SENSOR CYLINDER BLOCK FRONT COVER FRONT GEAR COVER CAMFOLLOWER COVER BREATHER HOSE OIL PAN AND SUCTION TUBE OIL PAN BOLT OIL LEVEL GAUGE FLYWHEEL HOUSING FLYWHEEL FLYWHEEL MOUNTING CRANKSHAFT PISTON AND CONNECTING ROD CRANK PULLEY ROCKER ARM CAMSHAFT TAPPETS FRONT GEAR TRAIN COVER HEAD HOLD COVER LUBRICATING OIL PUMP OIL FILTER OIL PRESSURE SWITCH OIL COOLER COOLANT HEATER PLUG FUEL INJECTION PUMP FUEL INTLE FITTING FUEL INJECTION PUMP MOUNTING FUEL INJECTION PUMP PIPING INJECTION PIPING INJECTION PIPING FUEL FILTER FUEL FILTER PIPING FUEL LIFT PUMP INJECTION NOZZLE WATER PUMP WATER CONNECTOR CABIN CONNECTOR PLUG FAN DRIVE PULLEY FAN DRIVE MOUNTING FAN SPACER BELT TENSIONER WATER PUMP VELT ALTERNATOR ALTERNATOR SUPPORT STARTING MOTOR STARTING MOTOR MOUNTING NAME PLATE

1

2

3

4

5

6

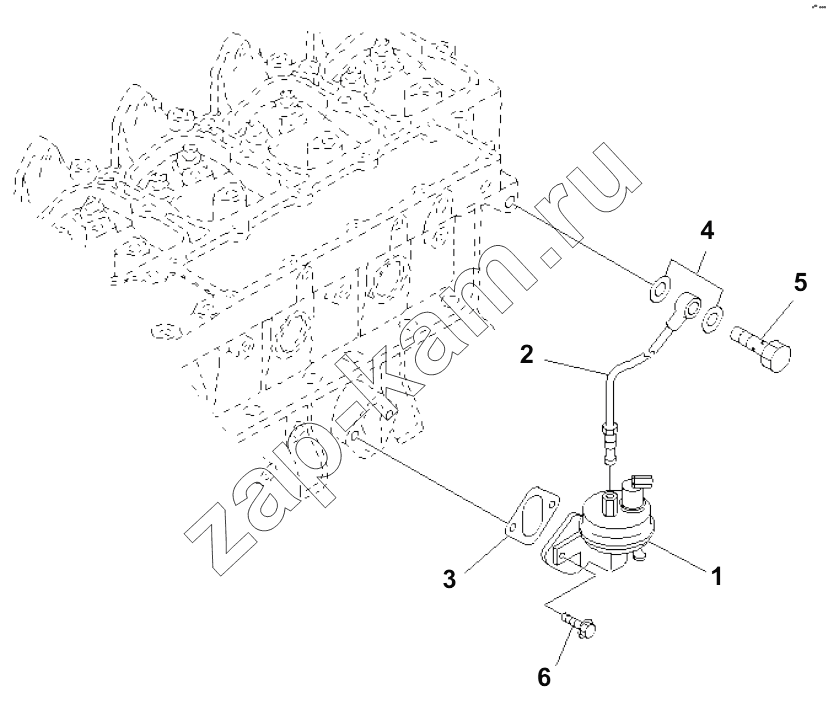

Поз.	Артикул		Название детали	Кол-во	Цена
1	6736-71-6590		Fuel pump assembly	1;	-
2	6731-71-6230		Tube	1;	-
3	6735-71-6610		Gasket, cover plate	1;	-
4	6742-01-5157		Washer	2;	-
5	6732-71-6510		BOLT, JOINT	1;	-
6	6732-21-5160		BOLT	2;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
