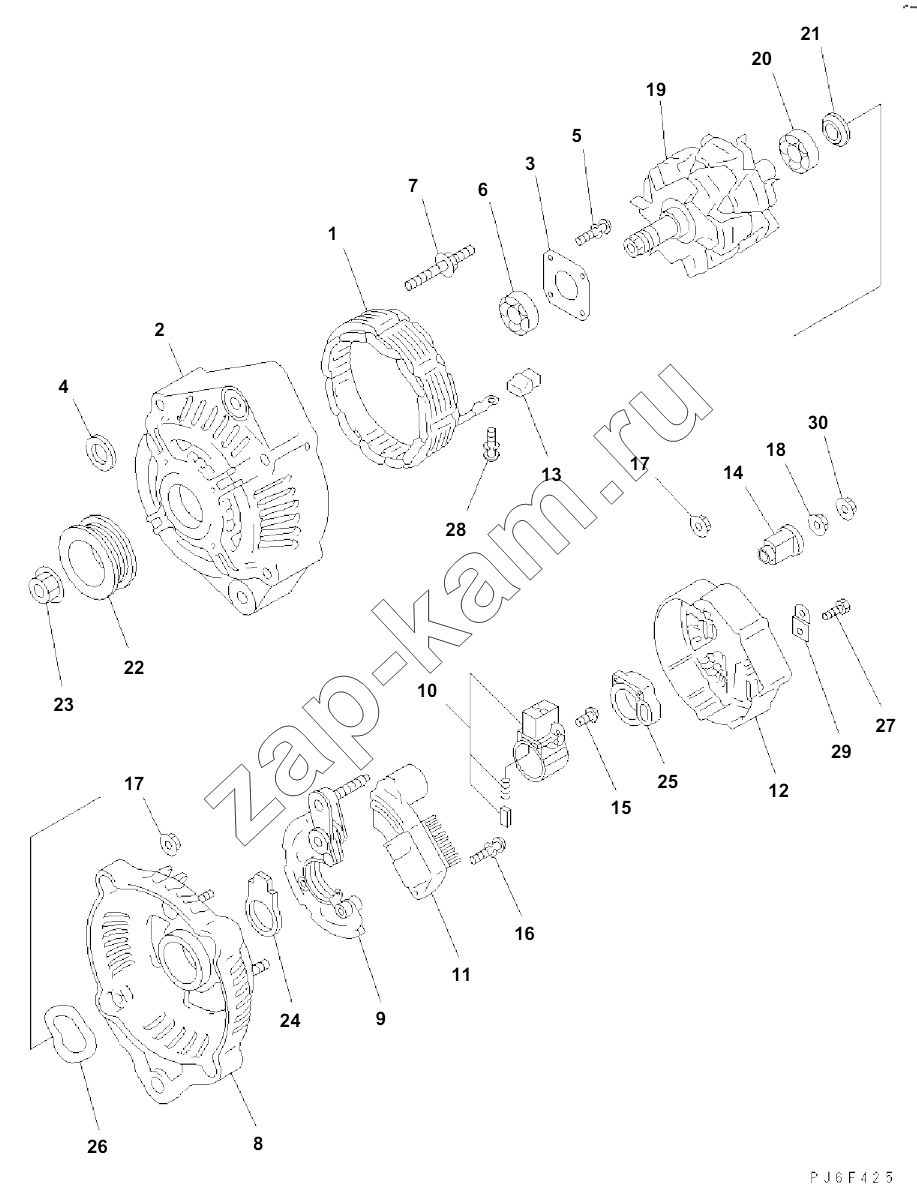

ALTERNATOR (60A) (INNER PARTS)
/ Komatsu SAA4D107E-1A
600-861-6420
ND949007-5110
ND121400-0800
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 600-861-6420 | 600-861-6420 | Alternator | 1; | |
| ND949007-5110 | ND949007-5110 | SCREW | 2; | |
| ND121400-0800 | ND121400-0800 | RAME ASSY | 1; | |
| 1 | ND021100-4210 | TATOR ASSY | 1; | |
| 2 | ND021401-4980 | FRAME | 1; | |
| 3 | ND021411-0570 | PLATE | 1; | |
| 4 | ND021045-0530 | COLLAR | 1; | |
| 5 | ND949006-5590 | SCREW | 4; | |
| 6 | ND949100-5010 | BEARING, BALL | 1; | |
| 7 | ND949043-2000 | BOLT, STUD | 4; | |
| 8 | ND021501-8050 | FRAME, REAR | 1; | |
| 9 | ND021580-4820 | HOLDER | 1; | |
| 10 | ND021620-2720 | BRUSH HOLDER ASSY | 1; | |
| 11 | ND126000-2320 | BRUSH HOLDER ASSY | 1; | |
| 12 | ND021551-2480 | COVER | 1; | |
| 13 | ND021605-1970 | BUSHING | 4; | |
| 14 | ND021605-2481 | Bushing | 1; | |
| 15 | ND949006-5460 | SCREW | 3; | |
| 16 | ND91310-04251 | SCREW | 2; | |
| 17 | ND949056-2481 | NUT | 7; | |
| 18 | ND949056-3080 | NUT | 1; | |
| 19 | ND021200-8380 | Rotor assembly | 1; | |
| 20 | ND949100-2790 | BEARING, BALL | 1; | |
| 21 | ND021506-0070 | COVER | 1; | |
| 22 | ND021041-8620 | PULLEY | 1; | |
| 23 | ND949056-2520 | NUT | 1; | |
| 24 | ND021626-0190 | SEAL | 1; | |
| 25 | ND021626-0250 | SEAL | 1; | |
| 26 | ND021542-0160 | WASHER | 1; | |
| 27 | ND949006-6401 | SCREW | 1; | |
| 28 | ND949007-6280 | SCREW | 4; | |
| 29 | ND021602-5230 | PLATE | 1; | |
| 30 | ND92150-06061 | NUT | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
