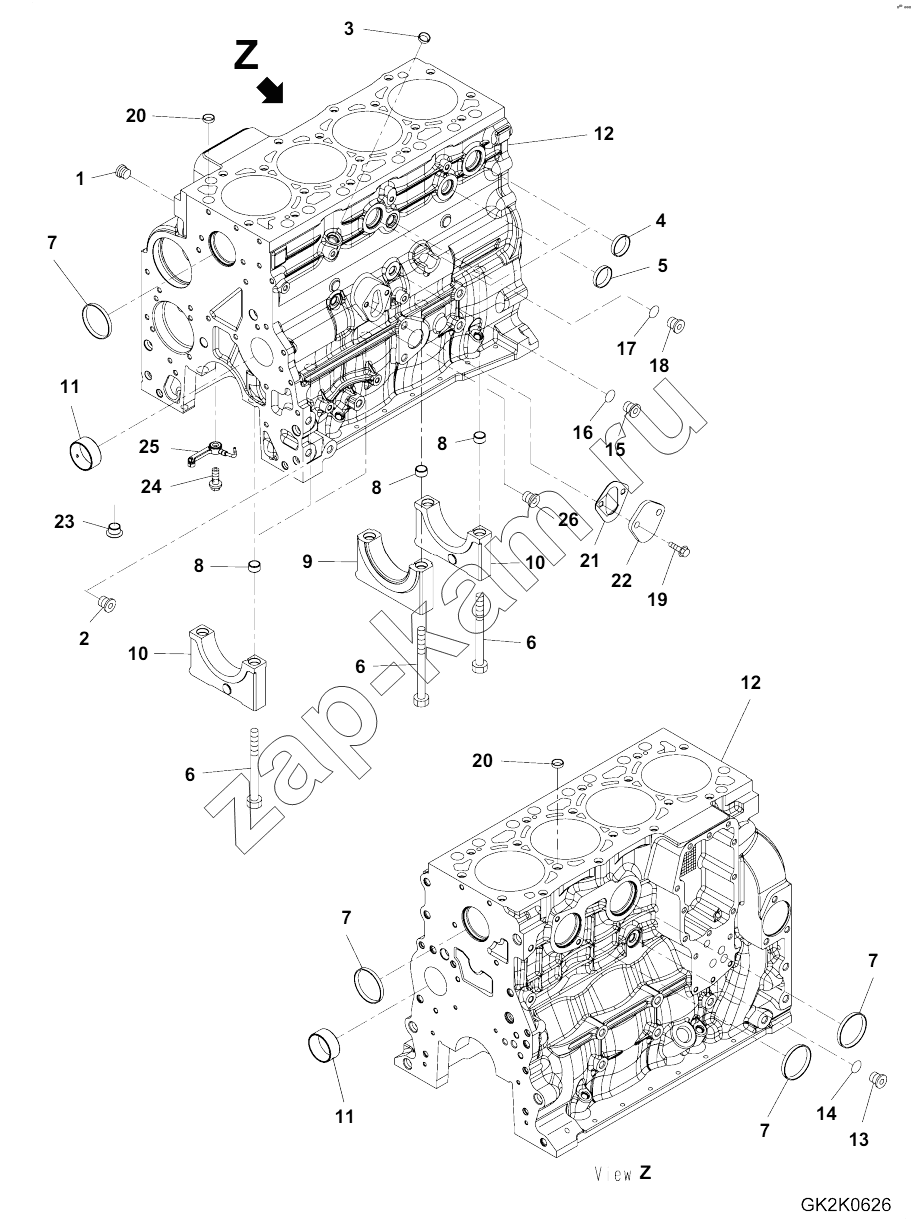

CYLINDER BLOCK (1/2)
/ Komatsu SAA4D107E-1A
CU4955475
BLOCK
6216-24-5130
6732-21-1960
6560-81-7110
6560-81-7110
6754-21-1220
6754-21-1240
6754-21-1240
6754-21-1240
6754-21-1240
1
2
3
4
5
6
6
6
7
7
7
7
8
8
8
8
8
8
9
10
10
11
11
12
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| CU4955475 | CU4955475 | Kit, cylinder block | 1; | - | |
| BLOCK | BLOCK | BLOCK, VALVE | 1; | - | |
| 6216-24-5130 | 6216-24-5130 | Screw | 1; | - | |
| 6732-21-1960 | 6732-21-1960 | PLUG | 2; | - | |
| 6560-81-7110 | 6560-81-7110 | Screw | 2; | - | |
| 6754-21-1220 | 6754-21-1220 | Cap, main bearing | 4; | - | |
| 6754-21-1240 | 6754-21-1240 | Cap, main bearing | 1; | - | |
| 1 | 6745-71-5820 | Screw | 1; | - | |
| 2 | 6754-22-6310 | Screw | 1; | - | |
| 3 | 6732-21-1810 | Plug | 2; | - | |
| 4 | 6742-01-1420 | Plug | 2; | - | |
| 5 | 6736-21-1820 | Plug | 1; | - | |
| 6 | 6732-21-1611 | BOLT | 10; | - | |
| 7 | 6731-22-1610 | Plug | 4; | - | |
| 8 | 6732-21-1910 | PLUG | 2; | - | |
| 8 | 6732-21-1910 | PLUG | 2; | - | |
| 9 | CAP | CAP | 1; | - | |
| 10 | CAP | CAP | 1; | - | |
| 11 | 6732-21-1411 | BUSHING | 2; | - | |
| 12 | BLOCK | BLOCK, VALVE | 1; | - | |
| 13 | 6560-81-7130 | O-ring | 1; | - | |
| 14 | SCREW | SCREW | 1; | - | |
| 15 | SCREW | SCREW | 1; | - | |
| 16 | 6735-21-1970 | O-ring | 1; | - | |
| 17 | 6735-21-1930 | O-RING | 1; | - | |
| 18 | SCREW | SCREW | 1; | - | |
| 19 | 6732-71-3220 | BOLT | 2; | - | |
| 20 | 6732-21-6140 | RING | 2; | - | |
| 21 | 6735-71-6610 | Gasket, cover plate | 1; | - | |
| 22 | 6736-71-5830 | Cover | 1; | - | |
| 23 | 6754-22-1110 | Plug, piston cooling | 4; | - | |
| 24 | 6754-21-1180 | Screw, banjo connector | 4; | - | |
| 25 | 6754-21-1190 | Nozzle, piston cooling | 4; | - | |
| 26 | 6754-22-6330 | Screw | 1; | - |
