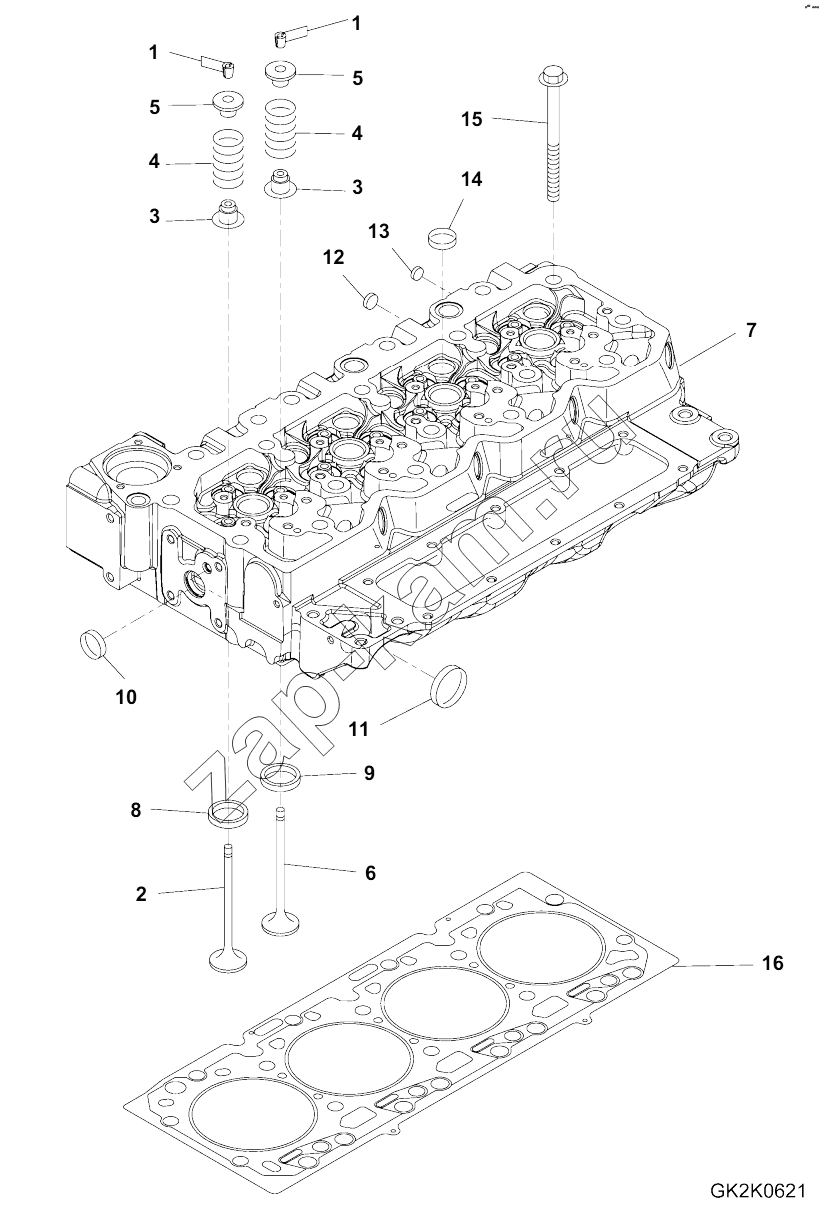

ENGINE
/ Komatsu SAA4D107E-1A
CU3939725
CU3939724
CU3939721
CU3939720
6735-21-5530
6751-11-1100
6751-11-1101
6754-41-4200
6754-41-4200
1
1
1
1
2
3
3
4
4
5
5
6
7
8
8
9
9
10
11
12
13
14
15
16
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 6754-41-4100 | 6754-41-4100 | Kit, intake valve | 8; | - | |
| CU3939725 | CU3939725 | Insert, valve | ; | - | |
| CU3939724 | CU3939724 | Insert, valve | ; | - | |
| CU3939721 | CU3939721 | Insert, valve | ; | - | |
| CU3939720 | CU3939720 | Insert, valve | ; | - | |
| 6735-21-5530 | 6735-21-5530 | PLUG | 7; | - | |
| 6751-11-1100 | 6751-11-1100 | Head, cylinder | 1; | - | |
| 6751-11-1101 | 6751-11-1101 | Head, cylinder | 1; | - | |
| 6754-41-4200 | 6754-41-4200 | Kit, exhaust valve | 8; | - | |
| 6751-11-1010 | 6751-11-1010 | Head, cylinder | 1; | - | |
| 1 | 6744-11-1020 | Collet, valve | 2; | - | |
| 1 | 6744-11-1020 | Collet, valve | 2; | - | |
| 2 | VALVE | VALVE | 1; | - | |
| 3 | 6754-41-4540 | Seal, valve | 16; | - | |
| 4 | 6754-41-4432 | Spring, valve | 16; | - | |
| 5 | 6754-41-4510 | Retainer, valve spring | 8; | - | |
| 6 | VALVE | VALVE | 1; | - | |
| 7 | HEAD | HEAD, BRACE | 1; | - | |
| 8 | CU3939719 | Insert, valve | ; | - | |
| 8 | 6754-11-1170 | Insert, valve | 8; | - | |
| 9 | 6754-11-1180 | Insert, valve | 8; | - | |
| 9 | CU3939723 | Insert, valve | ; | - | |
| 10 | 6736-21-1820 | Plug | 9; | - | |
| 11 | 6744-11-1070 | Plug | 1; | - | |
| 12 | 6754-11-1160 | Plug | 2; | - | |
| 13 | 6754-11-1150 | Plug | 5; | - | |
| 14 | 6735-21-5531 | Plug | 7; | - | |
| 15 | 6754-11-1610 | Screw | 18; | - | |
| 16 | 6751-11-1810 | Gasket, cylinder head | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
