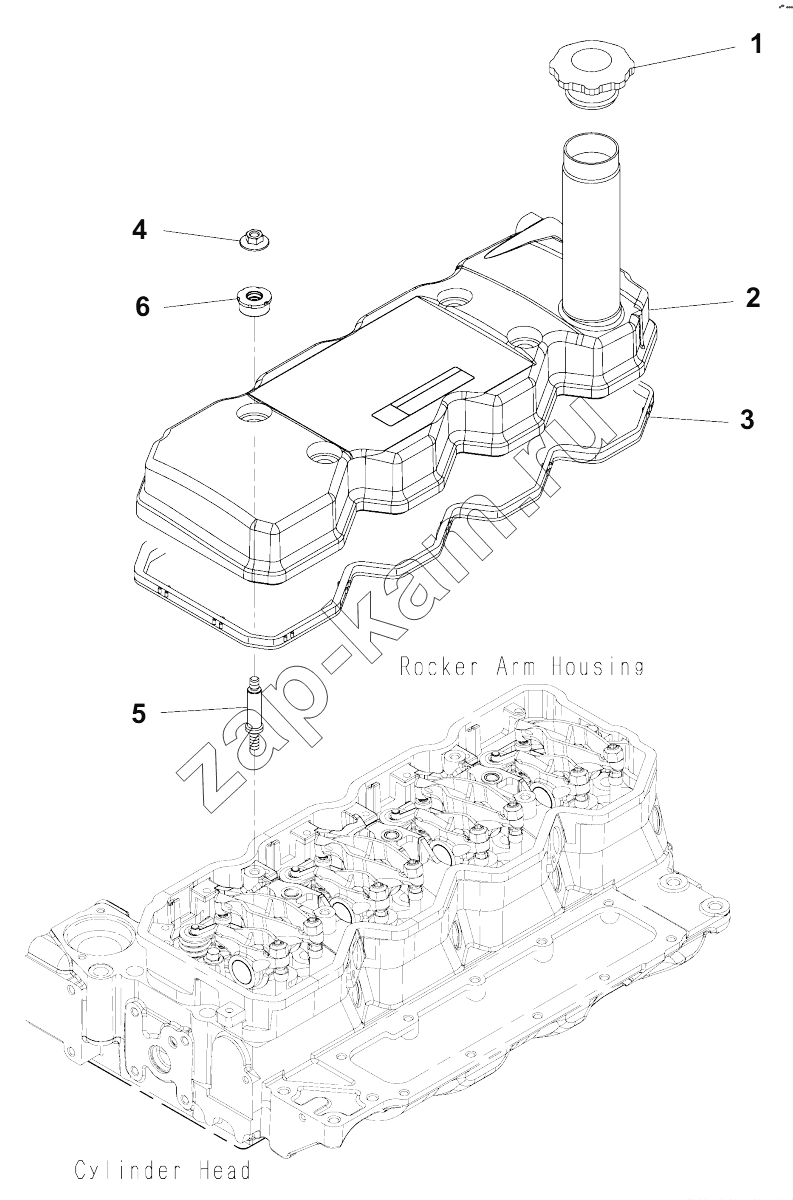

HEAD COVER (SN: 21714587 - 21967624)
/ Komatsu SAA4D107E-1A

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано SA4D102E-1AB (2015) SAA4D102E-2-PW (2015) SAA4D107E-1A (2015)

Схема > Не выбрано ENGINE LIFTING BRACKETS AND MOUNTING PARTS HEAD COVER (SN: 21714587 - 21967624) HEAD COVER (SN: 21969419 - ) BREATHER AIR INTAKE CONNECTOR AIR INTAKE HEATER EXHAUST MANIFOLD TURBOCHARGER TURBOCHARGER OIL PIPING AIR INTAKE COVER AIR TRANSFER CONNECTION THERMOSTAT AND WATER OUTLET CONNECTOR CYLINDER BLOCK (1/2) CYLINDER BLOCK (2/2) PLUG (TORQUE CONVERTER COOLING) FRONT GEAR COVER CYLINDER BLOCK BLIND PLUG REAR GEAR COVER FITTING PARTS REAR GEAR HOUSING ACCESSORY DRIVE PULLEY OIL PAN OIL PAN DRAIN OIL LEVEL SENSOR OIL LEVEL GAUGE OIL PUMP OIL FILTER OIL COOLER FLYWHEEL HOUSING FLYWHEEL AND MOUNTING CRANKSHAFT DAMPER PISTON AND CONNECTING ROD ROCKER ARM CAMSHAFT FUEL SYSTEM RELATED PARTS FUEL FILTER FUEL FILTER PIPING FUEL PIPING FUEL SYSTEM COVER COMMON RAIL INJECTOR FUEL INJECTION CONTROLLER FUEL INJECTION CONTROLLER RELATED PARTS WATER PUMP WATER INLET CONNECTOR COOLING FAN DRIVE PULLEY FAN SPACER ALTERNATOR (60A) ALTERNATOR (60A) (INNER PARTS) COOLING FAN BELT ALTERNATOR MOUNTING BELT TENSIONER STARTING MOTOR (4.5KW) STARTING MOTOR (4.5KW) (INNER PARTS) STARTING MOTOR MOUNTING (4.5KW) WIRING (ENGINE HARNESS) REPAIR PARTS

6751-11-8021

1

2

3

4

5

6

Поз.	Артикул		Название детали	Кол-во	Цена
6751-11-8021	6751-11-8021		Cover, valve	1;	-
1	6130-12-8610		CAP	1;	-
2	COVER		COVER	1;	-
3	6751-11-8110		Gasket, valve cover	1;	-
4	6754-11-8160		Nut, hexagon flange	4;	-
5	6754-11-8150		Stud	4;	-
6	6754-11-8210		Isolator, noise	4;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
