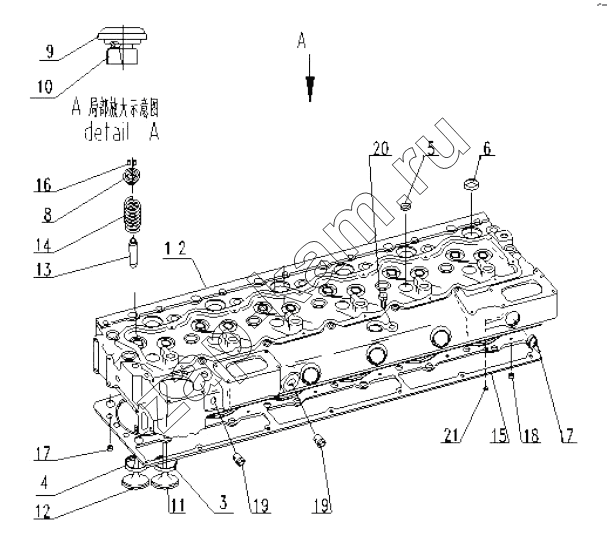

Cover group
/ SDEC SC11CB220G2B1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 4110001003075 | Cover | 1; | - | |
| 2 | 4110001003077 | Cover | 1; | - | |
| 3 | 4190000536569 | Air inlet hatch | 6; | - | |
| 4 | 4190000536570 | Air inlet hatch | 6; | - | |
| 5 | 4110000565268 | Plug | 6; | - | |
| 6 | 4110000907034 | Plug | 13; | - | |
| 7 | 4110000907035 | Plug | 7; | - | |
| 8 | 4110000186102 | Seat | 12; | - | |
| 9 | 4110000907036 | Spring seat | 1; | - | |
| 10 | 4110000907037 | Cover | 1; | - | |
| 11 | 4110000186106 | Inlet valve | 6; | - | |
| 12 | 4110001003076 | Exhaust valve | 6; | - | |
| 13 | 4110000186112 | Valve guide | 12; | - | |
| 14 | 4110000186110 | Valve spring | 12; | - | |
| 15 | 4110000186108 | Gasket | 1; | - | |
| 16 | 4110000907038 | Collet | 24; | - | |
| 17 | 4110000186111 | Sealing ring | 18; | - | |
| 18 | 4110000186109 | Sealing ring | 6; | - | |
| 19 | 4110000186113 | Plug | 3; | - | |
| 20 | 4110000186053 | Plug | 1; | - | |
| 21 | 4110000186114 | O-ring | 1; | - |
