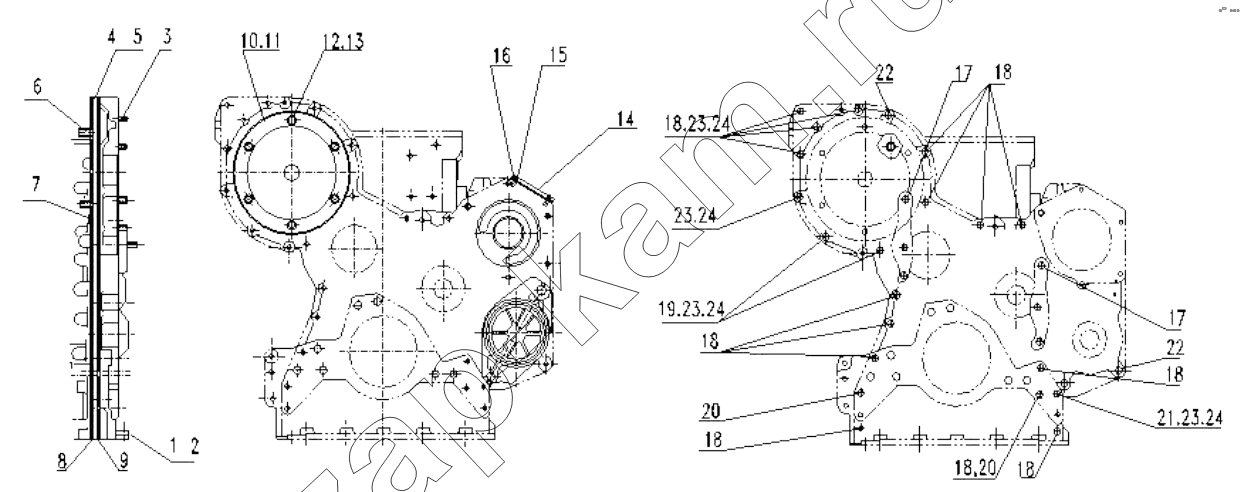

Front housing, cover and fastener group
/ SDEC SC11CB220G2B1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
18
18
18
18
18
19
20
20
21
22
22
23
23
23
23
24
24
24
24
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 4110001003123 | Housing | 1; | - | |
| 2 | 4110000186162 | Gear housing | 1; | - | |
| 3 | 4110000186166 | Stud | 6; | - | |
| 4 | 4110001003124 | Plate | 1; | - | |
| 5 | 4110000186161 | Bracket | 1; | - | |
| 6 | 4110001003125 | Stud | 3; | - | |
| 7 | 4110000186089 | Plug | 1; | - | |
| 8 | 4110000186163 | Gasket | 1; | - | |
| 9 | 4110000565227 | Gasket | 1; | - | |
| 10 | 4110000565194 | Cover plate | 1; | - | |
| 11 | 4110000907152 | Spacer | 1; | - | |
| 12 | 4110001003139 | Hexagon nut | 6; | - | |
| 13 | 4110001003126 | Washer | 6; | - | |
| 14 | 4110000907153 | Cover plate | 1; | - | |
| 15 | 4190000536479 | Bolt | 2; | - | |
| 16 | 4110000565037 | Gasket | 1; | - | |
| 17 | 4110000186171 | Screw | 6; | - | |
| 18 | 4110000186132 | Screw | 15; | - | |
| 19 | 4110000186132 | Screw | 2; | - | |
| 20 | 4110000186132 | Screw | 2; | - | |
| 21 | 4110000186132 | Screw | 1; | - | |
| 22 | 4110000186172 | Screw | 2; | - | |
| 23 | 4110000186027 | Washer | 8; | - | |
| 24 | 4110000186170 | Nut | 8; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
