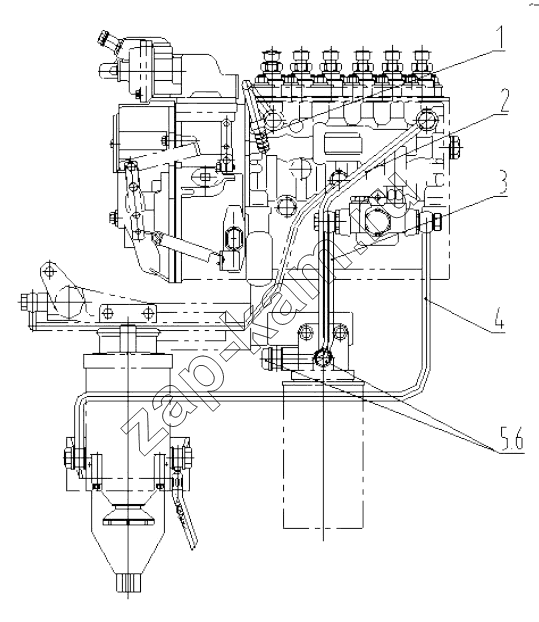

Lines group-drain
/ SDEC SC11CB220G2B1

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано SC11CB220G2B1 (2013) SC9D220G2B1 (2015) SC9DF260Q5 SC9DF290Q4 (2015) SDEC 6CL280-2 (2015) SDEC 6CL320-2 SDEC C6121ZG57a (2010) SDEC серии 6114В (2010)

Схема > Не выбрано Cylinder block Seal group-crankshaft Filler group-oil Pan group-oil Gage group-oil level Cover group Piston and group-rod Crankshaft group Pulley group-crankshaft Flywheel group Damper group Muffler group Camshaft group Lines group-air Manifold group-exhaust Cleaner group-air Oil pump assembly (double section) Drive group-fan Fan and guard group Cooler and filter group-oil Cooler group-oil Lines group-engine oil Lines group-turbocharger oil Pump group-water Regulator and group-housing Lines group-water Lines group-drain Support group-engine Compressor group-air Lines group-air compressor Shut-off group-electrical Front oil seal seat assembly (trunnion) Filter group-secondary Housing group-flywheel Turbocharger group Plate Cover group, cylinder head Fastener group, cylinder head Engine lifting group Gear group-front Exhaust ejection group Motor group Alternator group Air intake and exhaust kine group Ejector group-dust Pulley group, fan, v-belt group Radiator pipes group Puel injection lines group Support group-engine Front housing, cover and fastener group Mehanism group-valve Valve cover group Cap group, breather Fumes disposal group Pump group-gov

1

2

3

4

5

6

Поз.	Артикул		Название детали	Кол-во	Цена
1	4110000565312		Hose assembly	1;	-
2	4110000186537		Tube	1;	-
3	4110000186536		Hose assembly	1;	-
4	4110000907144		Fuel pipe	1;	-
5	4110000997413		Gasket	4;	-
6	4110000997109		Bolt	2;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
