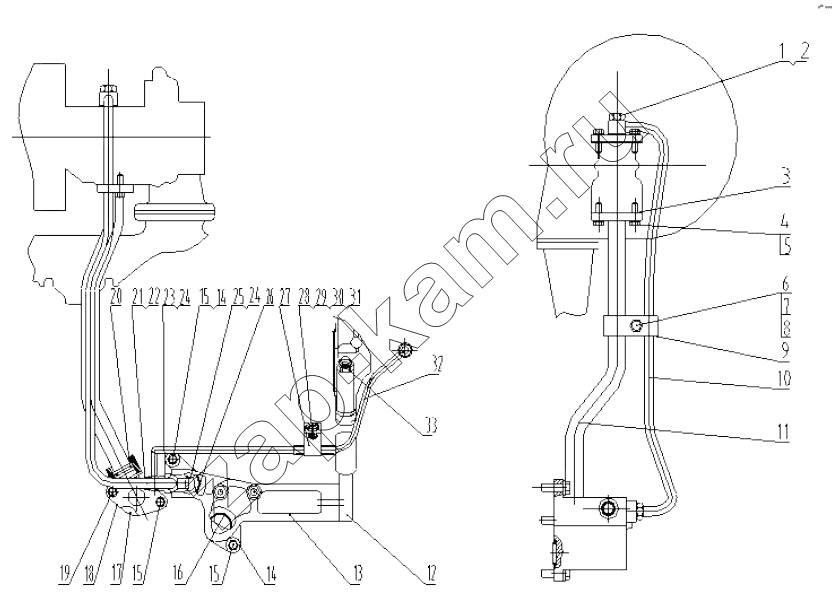

Lines group-turbocharger oil
/ SDEC SC11CB220G2B1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
30
31
32
33
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 4110001003062 | Screw | 1; | |
| 2 | 4110000186485 | Washer | 2; | |
| 3 | 4110000186705 | Gasket | 1; | |
| 4 | 4011000912 | Bolt | 2; | |
| 5 | 4110000186492 | Washer | 2; | |
| 6 | 4110000997014 | Bolt | 1; | |
| 7 | 4110000997019 | Nut-b00000793 | 1; | |
| 8 | 4110000907105 | Washer | 2; | |
| 9 | 4110000186477 | Collet | 2; | |
| 10 | 4110000186280 | Tube | 1; | |
| 11 | 4110000186466 | Tube | 1; | |
| 12 | 4110000186488 | Bracket | 1; | |
| 13 | 4110000186487 | Bracket | 1; | |
| 14 | 4110000186027 | Washer | 2; | |
| 15 | 4110000186135 | Screw | 3; | |
| 16 | 4110000186479 | O-ring | 2; | |
| 17 | 4110000565021 | Gasket | 1; | |
| 18 | 4110000565021 | Gasket | 1; | |
| 19 | 4110000186132 | Screw | 1; | |
| 20 | 4110000186483 | O-ring | 1; | |
| 21 | 4110000186484 | Washer | 2; | |
| 22 | 4110000781004 | Screw | 1; | |
| 23 | 4110000186489 | Nipple | 1; | |
| 24 | 4110000186473 | O-ring | 3; | |
| 25 | 4110000186478 | Nipple | 1; | |
| 26 | 4110000186480 | O-ring | 1; | |
| 27 | 4110000186494 | Collet | 1; | |
| 28 | 4110000186496 | Screw | 1; | |
| 29 | 4013000248 | Nut | 1; | |
| 30 | 4110000997039 | Washer | 1; | |
| 31 | 4110000186502 | Washer | 1; | |
| 32 | 4110000186465 | Tube | 1; | |
| 33 | 4110000036093 | Bolt | 2; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
