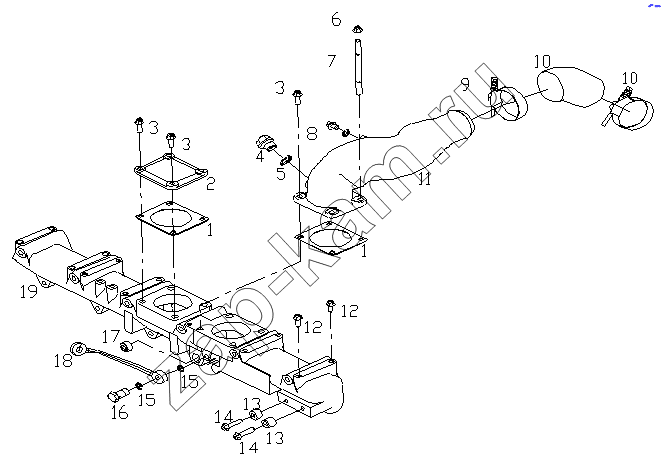

AIR INTAKE SYSTEM GROUP D12-000-134+B
/ SDEC SC9D220G2B1
1
1
2
3
3
3
4
5
6
7
8
9
10
10
11
12
12
13
13
14
14
15
15
16
17
18
19
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | D12-308-01+C | GASKET, AIR INTAKE PIPE | 2; | |
| 2 | D12-305-02+B | COVER PLATE | 1; | |
| 3 | B00002137 | HEX HEAD BOLT | 6; | |
| 4 | B00001729 | HEXAGON PIPE PLUG | 1; | |
| 5 | B00001550 | COMPOSITE HARD SEAL GASKET | 1; | |
| 6 | B00000846 | NUT, HEX FLANGE HEAD CAP | 2; | |
| 7 | B00001191 | Double end studs (clamping type)-Product grade B | 2; | |
| 8 | B00001724 | HEXAGON PIPE PLUG | 1; | |
| 9 | B00001539 | SPRING CLAMP | 2; | |
| 10 | D12-104-37+B | Hose | 1; | |
| 11 | D12-301-11+A | Hose | 1; | |
| 12 | B00002134 | HEX HEAD BOLT | 4; | |
| 13 | D12-304-01+A | SPACE | 2; | |
| 14 | B00002142 | HEX HEAD BOLT | 2; | |
| 15 | B00001545 | RUBBER COATED HARD WASHER | 3; | |
| 16 | B00002177 | BANJO BOLT | 1; | |
| 17 | D02A-164-01+B | PLUG, PIPE | 1; | |
| 18 | D12-002-30+B | HOSE ASSY, AIR/FUEL RATIO CONTROL | 1; | |
| 19 | D12-300-11+B | INTAKE MANIFOLD | 1; | |
| 20 | D12-309-01B+C | NAMEPLATE | 1; | |
| 21 | D12-306-04B+A | BRACKET | 1; | |
| 22 | B00002114 | HEX HEAD BOLT | 2; | |
| 23 | B00000958 | NAMEPLATE RIVET | 4; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
