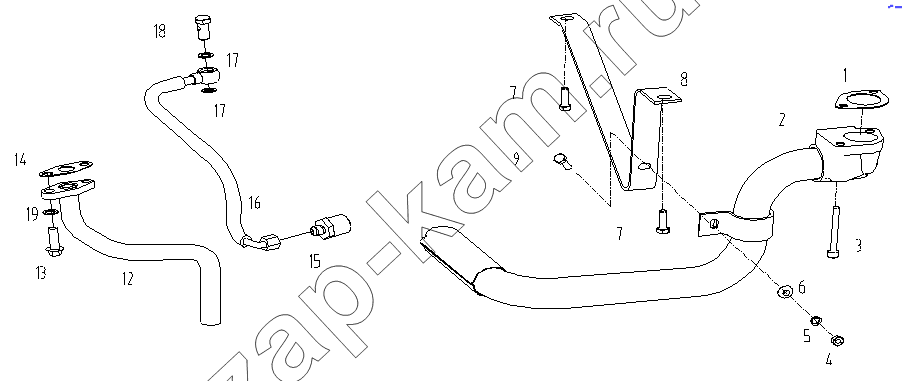

ENGINE OIL LINES GROUP D19-000-106+C
/ SDEC SC9D220G2B1
1
2
3
4
5
6
7
7
8
9
12
13
14
15
16
17
17
18
19
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | D19-114-01A+B | GASKET, SUCTION TUBE | 1; | |
| 2 | D19-001-41+B | SUCTION TUBE WELDING | 1; | |
| 3 | B00003351 | HEXAGON SOCKET HEAD CAP SCREW | 2; | |
| 4 | B00000790 | NUT, HEX FLANGE HEAD CAP | 1; | |
| 5 | B00001252 | SPRING WASHER | 1; | |
| 6 | B00001297 | PLAIN WASHER | 3; | |
| 7 | B00000603 | BOLT, HEX FLANGE HEAD CAP | 2; | |
| 8 | D19-105-01+A | BRAKET, SUCTION TUBE | 1; | |
| 9 | B00000609 | BOLT, HEX FLANGE HEAD CAP | 1; | |
| 12 | S00003138+02 | OIL RETURN TUBE, TURBOCHARGER | 1; | |
| 13 | B00000505 | BOLT, HEX FLANGE HEAD CAP | 2; | |
| 14 | D19-113-02+C | GASKET | 1; | |
| 15 | D19-118-01+B | CONNECTOR | 1; | |
| 16 | D19-110-01C+B | OIL INLET TUBE, TURBOCHARGER | 1; | |
| 17 | B00002193 | WASHER | 2; | |
| 18 | B00002178 | BANJO BOLT | 1; | |
| 19 | B00001275 | PLAIN WASHER | 2; |
