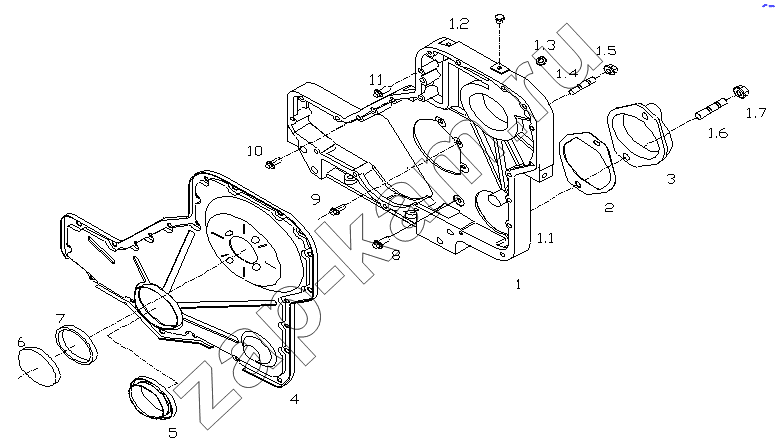

GEAR HOUSING GROUP D02B-000-47+B
/ SDEC SC9D220G2B1
1
1.1
1.2
1.3
1.4
1.5
1.6
1.7
2
3
4
5
6
7
8
9
10
11
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | D02B-001-40+A | ASSEMBLY PARTS FOR GEAR CHAMBER | 1; | |
| 1.1 | D02B-101-40+B | GEAR HOUSING | 1; | |
| 1.2 | D04-132-01+A | PLUG, PIPE | 4; | |
| 1.3 | B00000307 | SEAL, O RING | 1; | |
| 1.4 | B00001104 | STUD | 4; | |
| 1.5 | B00000833 | NUT, HEX FLANGE HEAD CAP | 4; | |
| 1.6 | B00001127 | STUD | 2; | |
| 1.7 | B00000836 | NUT, HEX FLANGE HEAD CAP | 2; | |
| 2 | D02B-106-40+B | GASKET, PTO | 1; | |
| 3 | D02B-105-40+B | COVER PLATE, PTO | 1; | |
| 4 | D02B-102-40+B | COVER, GEAR HOUSING | 1; | |
| 5 | D02B-104-02A+B | SEAL, FRONT GRANKSHAFT | 1; | |
| 6 | D02B-109-03+A | SEAL, THREAD COVER | 1; | |
| 7 | D02B-108-01B+A | THREAD COVER, OIL FILLER | 1; | |
| 8 | D02B-300-01+A | BOLT, HEX FLANGE HEAD CAP | 17; | |
| 9 | B00002135 | HEX HEAD BOLT | 3; | |
| 10 | B00002147 | HEX HEAD BOLT | 1; | |
| 11 | B00002150 | HEX HEAD BOLT | 9; | |
| 12 | B00002142 | HEX HEAD BOLT | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
