PISTON AND CONNECTING ROD GROUP D05-000-40+C
/ SDEC SC9D220G2B1

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано SC11CB220G2B1 (2013) SC9D220G2B1 (2015) SC9DF260Q5 SC9DF290Q4 (2015) SDEC 6CL280-2 (2015) SDEC 6CL320-2 SDEC C6121ZG57a (2010) SDEC серии 6114В (2010)

Схема > Не выбрано CYLINDER BLOCK D02A-000-18+B(1), D02A-000-18+B(2) GEAR HOUSING GROUP D02B-000-47+B FLYWHEEL HOUSING GROUP D02C-000-39+C OIL SUMP GROUP D03-000-31A+D CYLINDER HEAD GROUP D04-000-30A+F(1), D04-000-30A+F(2) PISTON AND CONNECTING ROD GROUP D05-000-40+C CRANKSHAFT GROUP D06A-000-41+D FLYWHEEL GROUP D06B-000-48+B DRIVE GEAR GROUP D07-000-42+B CAMSHAFT GROUP D09-000-40+A STARTING SYSTEM GROUP D11-000-89+A AIR INTAKE SYSTEM GROUP D12-000-134+B EXHAUST LINES GROUP D13-000-48+C OIL PUMP GROUP D15-000-41+B FRONT GEAR SYSTEM GROUP D16A-000-191+A OIL FILTER ASSY D17-002-02+B OIL COOLER GROUP D18-000-130+C ENGINE OIL LINES GROUP D19-000-106+C WATER PUMP GROUP D20-000-32+C THERMOSTAT GROUP D22-000-35+B COOLANT LINES GROUP D24A-000-108+B ASSORTED WATER PIPELINE GROUP S00002996+02 FUEL LINES GROUP D26-000-104+C INJECTOR GROUP D28-000-32+C ENGINE SUPPORT GROUP D33-000-32+A TURBOCHARGER GROUP D38-000-720+A CRANKCASE VENT FILTER GROUP D42-000-30A+C AIR COMPRESSOR GROUP D47-000-30+B FAN C16DB-16DB032+A FUEL SHUTOFF SOLENOID GROUP D59-000-42+B FUEL FILTER GROUP D638-000-02+A AIR FILTER GROUP S00004342+05 FUEL INJECTION PUMP GYL233+A MUFFLER GROUP XSG-08L-000+C ENGINE APPLICATION PARTS GROUP S00007823+03 ENGINE APPLICATION COOLANT LINE GROUP S00004833+02 EJECTION TAILPIPE GROUP, EXHAUST S00004880+01

1

2

3

4

5

6

7

8

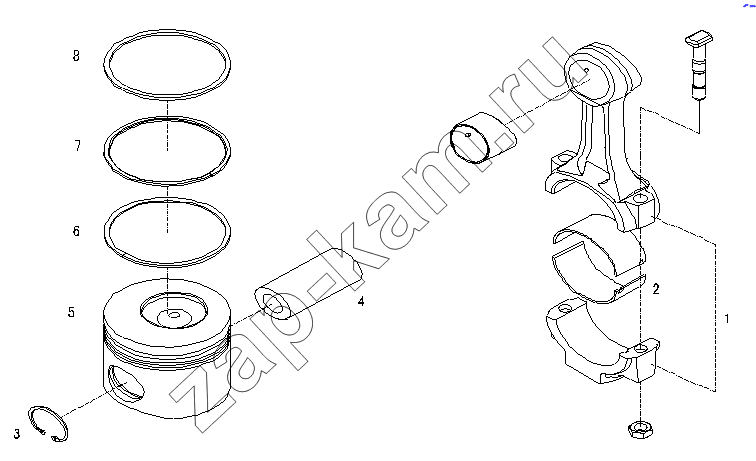

Поз.	Артикул		Название детали	Кол-во	Цена
1	D05-001-30A+B		MACHINING PARTS FOR CONNECTING-ROD	6;	-
2	D05-113-31+A		CONNECTING-ROD BEARING SHELL	12;	-
3	B00001039		A-TYPE ELASTIC RETAINING RING FOR HOLE APPLICATION	12;	-
4	D05-112-40+A		PISTON PIN	6;	-
5	D05-101-44+A		PISTON	6;	-
6	D05-002-31Y+A		OIL RING FITTINGS	6;	-
7	D05-108-31Y+A		INSCRIBE CONE-FACE RING	6;	-
8	D05-107-31Y+A		TRAPEZOID DRUM-FACE RING	6;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
