AIR LINE GROUP, ENGINE APPLICATION
/ SDEC SC9DF260Q5

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано SC11CB220G2B1 (2013) SC9D220G2B1 (2015) SC9DF260Q5 SC9DF290Q4 (2015) SDEC 6CL280-2 (2015) SDEC 6CL320-2 SDEC C6121ZG57a (2010) SDEC серии 6114В (2010)

Схема > Не выбрано CYLINDER BLOCK GROUP CYLINDER BLOCK ASSY CYLINDER BLOCK ASSY (MACHINED) HOUSING GROUP, GEAR HOUSING ASSY, GEAR SCREW PLUG ASSEMBLY, GEAR HOUSING FLYWHEEL HOUSING GROUP RAIL TUBE GROUP OIL PAN GROUP CYLINDER HEAD GROUP CYLINDER HEAD ASSY POWER CYLINDER GROUP CRANKSHAFT GROUP CRANKSHAFT ASSY FLYWHEEL GROUP CAMSHAFT GROUP OIL PUMP GROUP FRONT GEAR MECHANISM GROUP FAN GROUP OIL FILTER GROUP OIL COOLER GROUP ENGINE OIL LINE GROUP THERMOSTAT COOLANT PIPING AND CORROSION RESISTOR GROUP INJECTOR GROUP FUEL INJECTION PUMP GROUP CRANKCASE VENT FILTER ASSY FUEL FILTER GROUP CONTROL SYSTEM GROUP STARTING SYSTEM GROUP ENGINE BRAKE GROUP, EXHAUST TURBOCHARGER GROUP AIR INTAKE PIPE GROUP AIR LINE GROUP, ENGINE APPLICATION ENGINE APPLICATION OPTION, FOR CUSTOMER FUEL LINE GROUP GEAR GROUP, DRIVE PUMP AIR COMPRESSOR GROUP WATER PUMP ASSY PARTS GROUP, ENGINE APPLICATION EXHAUST MANIFOLD GROUP ENGINE APPLICATION COOLANT LINE GROUP SUPPORT GROUP, ENGINE WATER/FUEL SEPARATOR ASSY

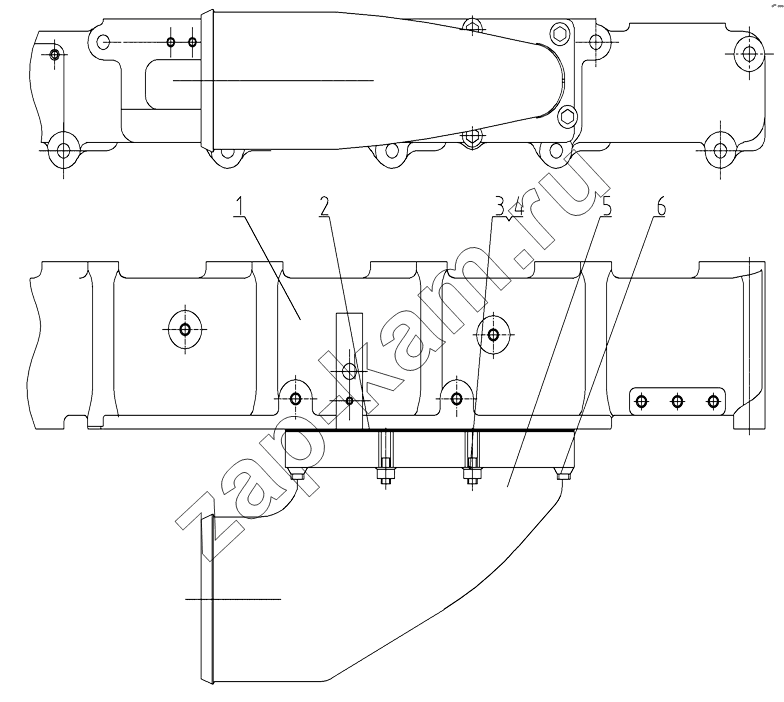

1

2

3

4

5

6

Поз.	Артикул		Название детали	Кол-во	Цена
1	D12B-101-74		Air outlet pipe, compressor	1;	-
2	D00-214-03		Clamp	1;	-
3	B00002136		Hexagon bolts with flange	2;	-
4	B00000847		NUT, HEX FLANGE HEAD CAP	2;	-
5	D12B-115-54		Compressor outlet pipe bracket	1;	-
6	D12B-001-900		Clamp assy	1;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
