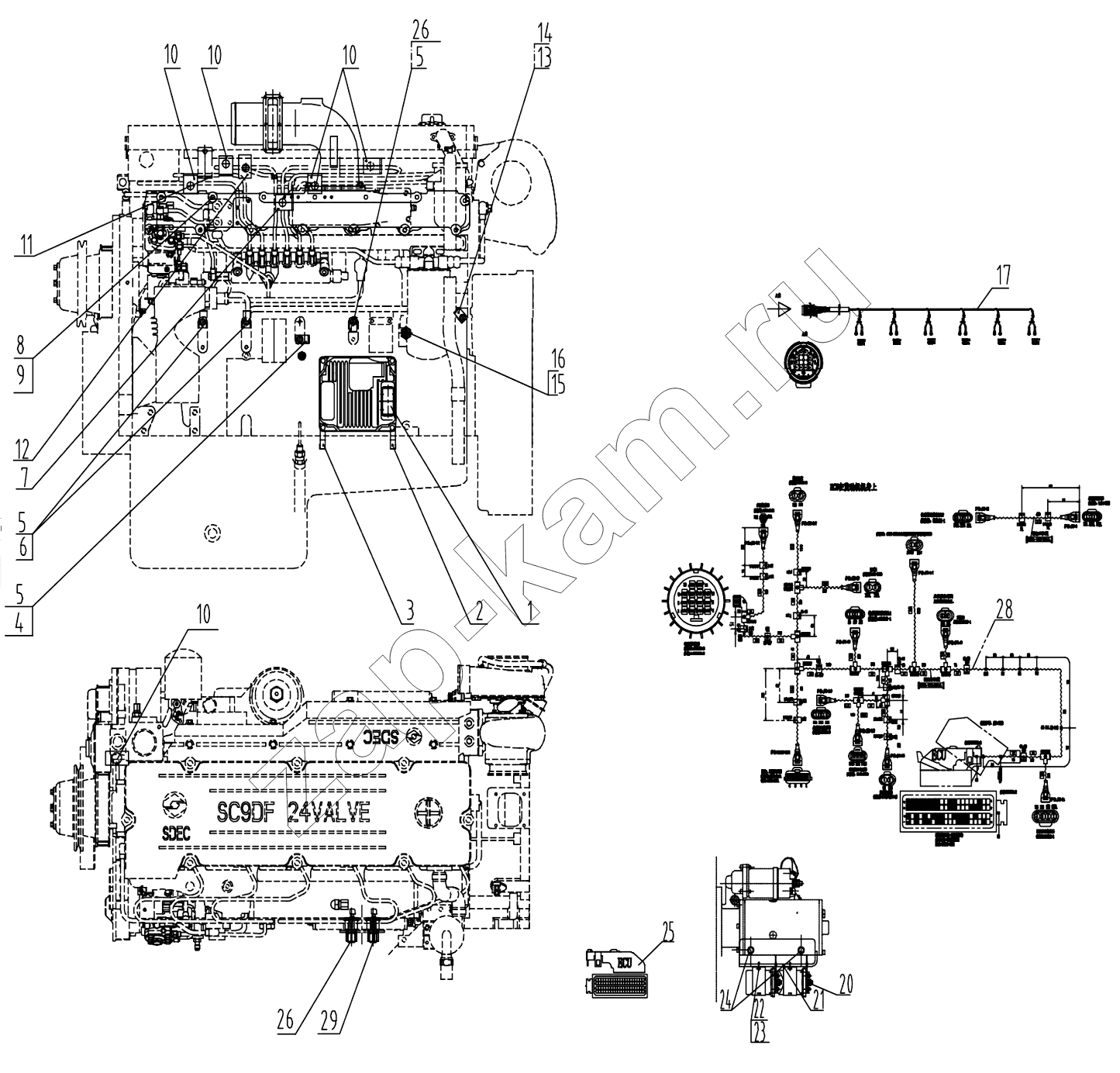

ENGINE APPLICATION OPTION, FOR CUSTOMER
/ SDEC SC9DF260Q5
1
2
3
4
5
5
5
6
7
8
9
10
10
10
10
11
12
13
14
15
16
17
20
21
22
23
24
25
26
26
28
29
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | D88A-160-900 | Guard, ecu (electronic control unit) | 1; | |
| 2 | D88A-109-900 | Bracket, harness electrical-control | 1; | |
| 3 | D88A-103-900 | Bracket, harness electrical-control | 1; | |
| 4 | D88A-101-800 | Bracket, harness electrical-control | 1; | |
| 5 | B00002130 | HEX HEAD BOLT | 6; | |
| 6 | D88A-107-900 | Bracket, harness electrical-control | 3; | |
| 7 | D88A-102-900 | Bracket, harness electrical-control | 1; | |
| 8 | S00001429 | Bracket, harness electrical-control | 1; | |
| 9 | B00002110 | Hexagon bolts with flange | 2; | |
| 10 | D88A-100-900 | Bracket, harness electrical-control | 5; | |
| 11 | D88A-108-900 | Bracket, harness electrical-control | 1; | |
| 12 | S00008429 | Bracket, harness electrical-control | 1; | |
| 13 | D88A-105-900 | Bracket, ecu | 1; | |
| 14 | B00002045 | Hexagon bolts with flange | 1; | |
| 15 | D88A-008-800 | Sensor, oil pressure | 1; | |
| 16 | D00-169-50 | Joint adapter, oil pressure sensor | 1; | |
| 17 | S00014938 | Engine harness, inside cylinder | 1; | |
| 18 | D100X-015-801 | Switch, engine start | 1; | |
| 20 | D11-116-01A | STARTING RELAY | 2; | |
| 21 | D100X-105-802 | Relay bracket | 1; | |
| 22 | B00002118 | HEX HEAD BOLT | 4; | |
| 23 | B00000843 | NUT, HEX FLANGE HEAD CAP | 4; | |
| 24 | B00002047 | BOLT, HEX FLANGE HEAD CAP | 2; | |
| 25 | D100X-001-999 | Connectorvehicle | 1; | |
| 26 | D88A-101-900 | Bracket, harness electrical-control | 1; | |
| 28 | S00028573 | Main engine harness wiring | 1; | |
| 29 | D100X-015-802 | Switch, engine stop | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
