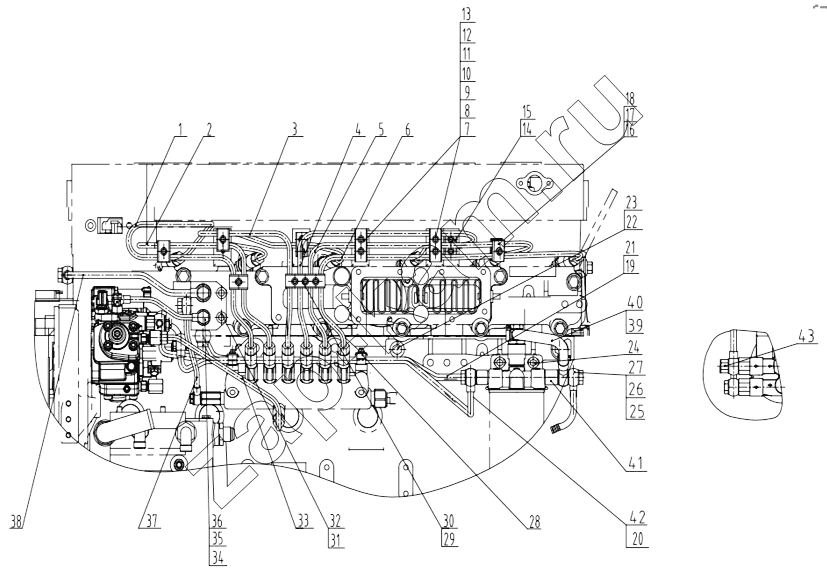

FUEL LINE GROUP
/ SDEC SC9DF260Q5

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
Поз. Артикул Название детали Кол-во
1 D26C-001-903 High pressure fuel pipe assy 1;
2 D26C-002-900 High pressure fuel pipe assy 1;
3 D26C-003-900 High pressure fuel pipe assy 1;
4 D26C-004-900 High pressure fuel pipe assy 1;
5 D26C-005-900 High pressure fuel pipe assy 1;
6 D26C-006-900 High pressure fuel pipe assy 1;
7 B00002123 Hexagon bolts with flange 20;
8 B00001297 PLAIN WASHER 20;
9 B00001252 SPRING WASHER 20;
10 D26C-130-800 Clamp 4;
11 D26C-131-904 Cushion, clamp-low pessure fuel pipe 4;
12 D26C-113-901 Fuel pipe bracket 5;
13 B00002134 HEX HEAD BOLT 5;
14 D26C-130-902 Clamp 2;
15 D26C-131-902 Cushion, clamp-low pessure fuel pipe 4;
16 D26C-105-800 Clamp 5;
17 D26C-131-01 Cushion, clamp-low pessure fuel pipe 10;
18 D26C-130-903 Clamp 3;
19 B00001547 RUBBER COATED HARD WASHER 14;
20 B00002179 BANJO BOLT 4;
21 D26C-017-902 Fuel inlet pipe assy, fuel injection pump 1;
22 B00002040 Hexagon bolts with flange 2;
23 D26C-111-900 Bracket, fuel filter 1;
24 B00002146 BOLT, HEX FLANGE HEAD CAP 2;
25 D26C-142-901 Hinge bolt 1;
26 D26C-015-902 Fuel return pipe assy, low pressure 1;
27 D26-007-07 Oil return connector 2;
28 D26C-131-905 Cushion, clamp-low pessure fuel pipe 4;
29 D26C-105-900 Clamp 1;
30 D26C-131-900 Cushion, clamp-low pessure fuel pipe 2;
31 B00002139 HEX HEAD BOLT 2;
32 D26C-143-901 Joint adapter, fuel pipe 1;
33 D26C-007-900 Fuel inlet pipe assy, rail 1;
34 B00002178 BANJO BOLT 2;
35 B00001546 RUBBER COATED HARD WASHER 5;
36 D26C-019-902 Fuel return pipe assy, fuel injection pump 1;
37 D26C-011-902 Fuel return pipe assy, rail 1;
38 D26C-009-900 Fuel return pipe assy, injector 1;
39 B00001563 CLAMP 2;
40 D26C-144-900 Oil return rubber tube – oil filter 1;
41 D26C-022-900 Joint 1;
42 D26C-018-900 Fuel return pipe assy, fuel injection pump 1;
43 D26C-142-902 Hinge bolt 1;
