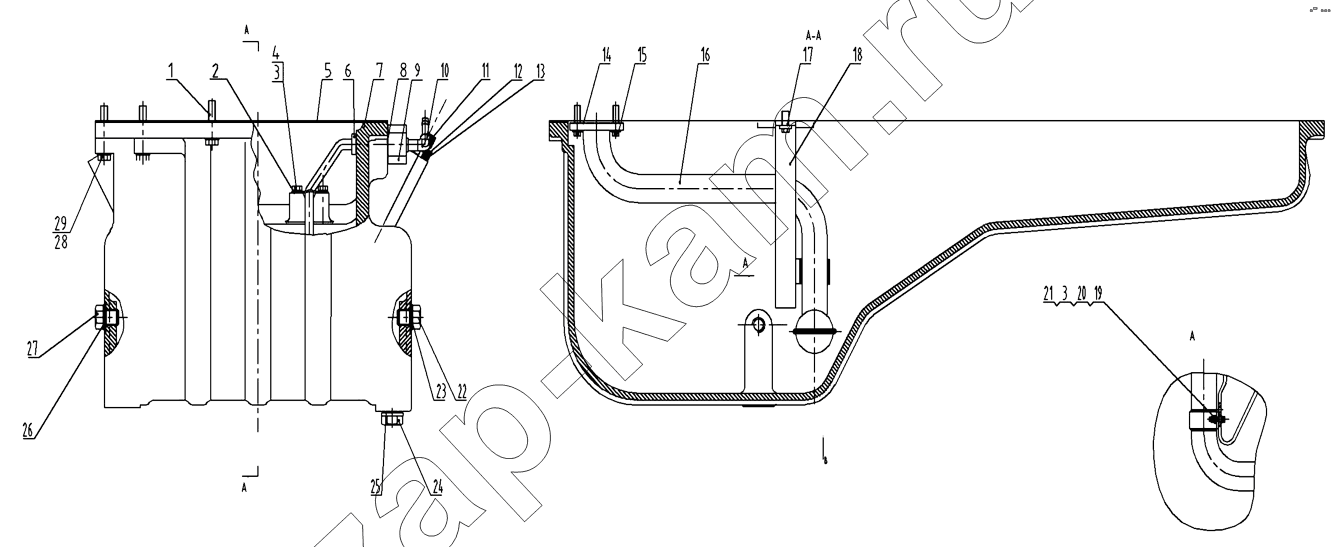

OIL PAN GROUP
/ SDEC SC9DF260Q5
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | B00002142 | HEX HEAD BOLT | 30; | |
| 2 | D03-307-01 | Clamp | 2; | |
| 3 | B00001252 | SPRING WASHER | 5; | |
| 4 | B00002114 | HEX HEAD BOLT | 4; | |
| 5 | D03-104-901 | Bracket, oil pan | 1; | |
| 6 | D03-030-902 | Fuel return pipe assy | 1; | |
| 7 | D03-001-902 | Oil pan assy | 1; | |
| 8 | B00001552 | RUBBER COATED HARD WASHER | 1; | |
| 9 | B00000782 | HEXAGON HEAD NUT, TYPE 1 | 1; | |
| 10 | D03-304-02 | ELBOW JOINT | 1; | |
| 11 | B00001555 | RUBBER COATED HARD WASHER | 1; | |
| 12 | D03-108-01A | Joint (threaded), oil dipstick | 1; | |
| 13 | B00001547 | RUBBER COATED HARD WASHER | 1; | |
| 14 | D19-114-900 | Gasket, pipe flange-oil suction pump | 1; | |
| 15 | B00001999 | HEX HEAD BOLT | 2; | |
| 16 | D19-001-902 | Oil suction pipe assy, oil suction pump | 1; | |
| 17 | B00002111 | HEX HEAD BOLT | 2; | |
| 18 | D19-105-900 | Brace, oil suction pipe-oil suction pump | 1; | |
| 19 | B00002118 | HEX HEAD BOLT | 1; | |
| 20 | B00000843 | NUT, HEX FLANGE HEAD CAP | 1; | |
| 21 | B00001297 | PLAIN WASHER | 1; | |
| 22 | B00001730 | Hexagonal head screw piug | 1; | |
| 23 | D03-110-03 | Composite hard seal gasket | 1; | |
| 24 | B00001728 | HEXAGON PIPE PLUG | 1; | |
| 25 | D03-110-02 | RUBBER COATED HARD WASHER | 1; | |
| 26 | D03-110-01 | RUBBER COATED HARD WASHER | 1; | |
| 27 | B00001727 | HEXAGON HEAD SCREW PLUG | 1; | |
| 28 | B00002147 | HEX HEAD BOLT | 2; | |
| 29 | B00001253 | Single coil spring lock washers, normal type | 12; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
