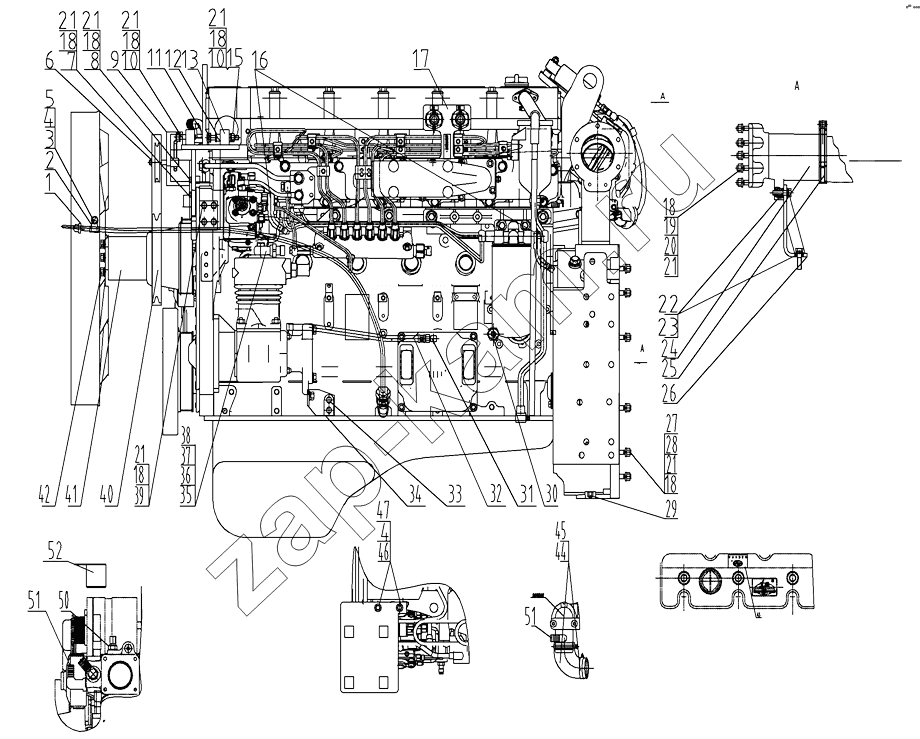

PARTS GROUP, ENGINE APPLICATION
/ SDEC SC9DF260Q5
1
2
3
4
4
5
6
7
8
9
10
10
11
12
13
15
16
17
18
18
18
18
18
18
18
19
20
21
21
21
21
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
44
45
46
47
50
51
51
52
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | D00-037-902 | Oil dipstick and tube adapter assy | 1; | - | |
| 2 | D00-138-03 | Clamp | 1; | - | |
| 3 | B00002133 | BOLT, HEX FLANGE HEAD CAP | 1; | - | |
| 4 | B00001254 | Single coil spring lock washers, normal type | 3; | - | |
| 5 | B00000846 | NUT, HEX FLANGE HEAD CAP | 1; | - | |
| 6 | D16A-003-04 | Tensioner assy | 1; | - | |
| 7 | B00002161 | Hexagon bolts with flange | 1; | - | |
| 8 | B00002145 | HEX HEAD BOLT | 1; | - | |
| 9 | D00-028-01 | Bracket assy, tensioner | 1; | - | |
| 10 | B00002007 | Hexagon bolts with flange | 2; | - | |
| 11 | D00-163-08 | Joint, warm water outlet from engine | 1; | - | |
| 12 | D11-104-01 | Распорная втулка | 1; | - | |
| 13 | D00-010-902 | Bracket, air conditioner compressor | 1; | - | |
| 14 | B00002026 | Hexagon bolts with flange | 2; | - | |
| 15 | B00000833 | NUT, HEX FLANGE HEAD CAP | 2; | - | |
| 16 | D26-007-07 | Oil return connector | 4; | - | |
| 17 | D00-143-908 | Bracket switch, engine start | 1; | - | |
| 18 | B00001276 | WASHER, PLAIN | 26; | - | |
| 19 | D13-304-900 | Nut, flange-turbocharger | 6; | - | |
| 20 | D13-103-01 | Палец | 6; | - | |
| 21 | B00001238 | Single coil spring lock washers, Normal type | 26; | - | |
| 22 | B00002049 | BOLT, HEX FLANGE HEAD CAP | 4; | - | |
| 23 | B00001799 | Bigger black washers | 4; | - | |
| 24 | D00-119-900 | Exhaust pipe, turbocharger | 1; | - | |
| 25 | D13-001-01 | Зажим | 1; | - | |
| 26 | D00-143-900 | Exhaust pipe adapter bracket | 1; | - | |
| 27 | B00001107 | Stud | 12; | - | |
| 28 | B00000834 | NUT, HEX FLANGE HEAD CAP | 12; | - | |
| 29 | D02A-163-02 | Hex socket pipe plug | 1; | - | |
| 30 | D00-169-50 | Joint adapter, oil pressure sensor | 1; | - | |
| 31 | D02A-167-01 | Колено, трубка | 1; | - | |
| 32 | D00-106-02A | OIL INLET PIPE, AIR COMPRESSOR | 1; | - | |
| 33 | B00001996 | HEXAGON BOLTS WITH FLANGE-SMALL SERIES | 2; | - | |
| 34 | D00-101-40A | BRACKET, AIR COMPRESSOR | 1; | - | |
| 35 | D00-160-58 | Joint, air outlet pipe-air compressor | 1; | - | |
| 36 | D00-296-04 | Hinge bolt | 1; | - | |
| 37 | D00-140-18 | Spacer | 1; | - | |
| 38 | B00002196 | Washer | 3; | - | |
| 39 | B00002001 | BOLT, HEX FLANGE HEAD CAP | 4; | - | |
| 40 | B00001330 | Automotive v-belt | 1; | - | |
| 41 | D16A-128-46 | Spacer, fan | 1; | - | |
| 42 | B00002040 | Hexagon bolts with flange | 4; | - | |
| 43 | D04-163-22 | Label plate | 1; | - | |
| 44 | D24A-107-02A | WATER INLET ELBOW | 1; | - | |
| 45 | B00001537 | Spring clamp | 2; | - | |
| 46 | B00002150 | HEX HEAD BOLT | 2; | - | |
| 47 | B00001300 | WASHER, PLAIN | 2; | - | |
| 50 | D00-219-01 | Joint adapter, water temperature sensor | 1; | - | |
| 51 | D00-163-15 | Joint, warm water outlet from engine | 1; | - | |
| 52 | D87-023-900 | Ambient temperature sensor box | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
