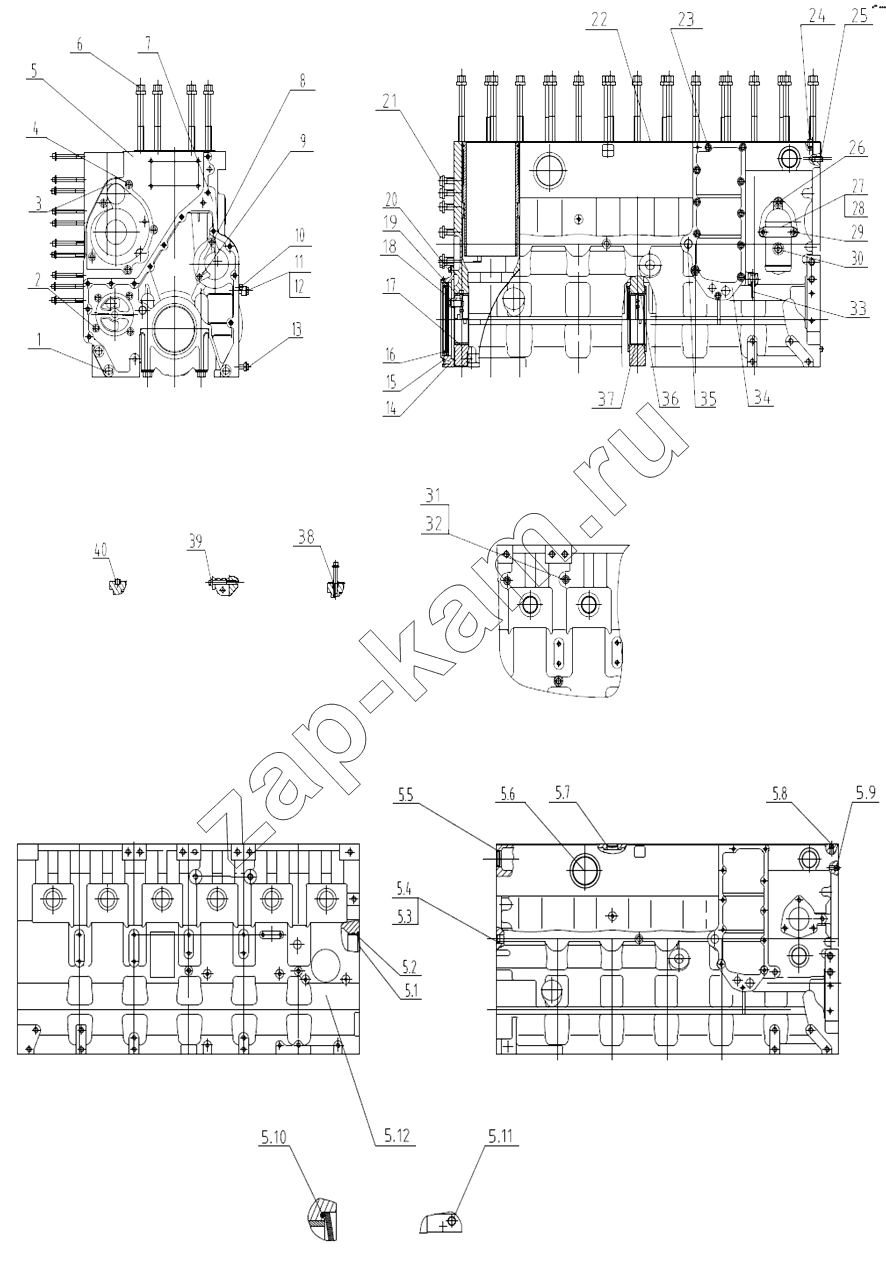

CYLINDER BLOCK GROUP
/ SDEC SC9DF290Q4
27
14
15
16
17
18
19
20
21
22
23
24
25
26
13
28
29
30
31
32
33
34
35
36
37
38
39
40
2
3
4
5
1
6
7
8
9
10
11
12
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 27 | D02A-502-900 | Water pump inlet pipe | 1; | - | |
| 14 | S00016074 | Rear cylinder block plate | 1; | - | |
| 15 | D02A-116-01 | Манжета задней крышки, 0-кольцо | 1; | - | |
| 16 | D02A-118-02B | CRANKSHAFT REAR SEAL | 1; | - | |
| 17 | D02A-112-900 | Lower main bearing | 6; | - | |
| 18 | B00000102 | DOWEL,PIN | 2; | - | |
| 19 | D02A-110-900 | Upper main bearing | 6; | - | |
| 20 | B00002134 | HEX HEAD BOLT | 8; | - | |
| 21 | B00002058 | Hexagon bolts with flange | 12; | - | |
| 22 | D02A-109-901 | Gasket, cylinder head | 1; | - | |
| 23 | B00002159 | Hexagon bolts with flange | 11; | - | |
| 24 | D02A-312-01 | ШтиФт, шпилька | 2; | - | |
| 25 | B00000098 | SPRING PIN | 2; | - | |
| 26 | B00001999 | HEX HEAD BOLT | 1; | - | |
| 13 | D02A-321-900 | Spacer | 2; | - | |
| 28 | D02A-500-900 | Water pump inlet gasket | 1; | - | |
| 29 | B00001992 | Hexagon bolts with flange | 2; | - | |
| 30 | D02A-164-01 | Заглушка, трубка | 1; | - | |
| 31 | D02A-168-01 | HEXAGON PIPE PLUG | 1; | - | |
| 32 | B00001378 | O-RING | 1; | - | |
| 33 | D02A-178-900 | Water drain cock | 1; | - | |
| 34 | D02A-133-900 | Gasket, oil cooler | 1; | - | |
| 35 | D02A-304-900 | Dowel sleeve | 1; | - | |
| 36 | D02A-111-900 | Thrust bearing, crankshaft | 1; | - | |
| 37 | D02A-323-900 | Thrust bearing, crankshaft | 1; | - | |
| 38 | B00001020 | ELASTIC PIN | 2; | - | |
| 39 | B00002153 | HEX HEAD BOLT | 3; | - | |
| 40 | D02A-305-900 | Dowel sleeve | 2; | - | |
| 5.10 | D02A-324-40 | O-RING | 1; | - | |
| 2 | B00002142 | HEX HEAD BOLT | 4; | - | |
| 3 | S00013391 | Gasket, water pump | 1; | - | |
| 4 | B00002150 | HEX HEAD BOLT | 2; | - | |
| 5 | Cylinderblock | Cylinder block assy | 1; | - | |
| 5.1 | D02A-162-40 | CUP PLUG | 1; | - | |
| 5.2 | D02A-113-01B | CAMSHAFT BEARING | 7; | - | |
| 5.3 | D02A-310-01 | Заглушка, развальцовка | 1; | - | |
| 5.4 | D02A-161-01 | Заглушка, развальцовка | 1; | - | |
| 5.5 | D04-167-01A | CUP PLUG | 9; | - | |
| 5.6 | D04-133-01 | Заглушка | 1; | - | |
| 5.7 | D04-166-01A | CUP PLUG | 1; | - | |
| 5.8 | D02A-813-900 | Throttle plug | 1; | - | |
| 5.9 | D02A-813-901 | Throttle plug | 1; | - | |
| 1 | B00002042 | Hexagon bolts with flange | 4; | - | |
| 5.11 | D02A-161-31 | CUP PLUG | 1; | - | |
| 5.12 | D02A-002-900 | Cylinder block assy | 1; | - | |
| 5.12.1 | D02A-106-900 | Bolt, main bearing cap | 14; | - | |
| 5.12.2 | D02A-105-901 | Cap, main bearing | 1; | - | |
| 5.12.3 | D02A-322-900 | Dowel sleeve | 2; | - | |
| 5.12.4 | D02A-105-900 | Cap, main bearing | 6; | - | |
| 6 | D02A-107-900 | Bolt, cylinder head | 26; | - | |
| 7 | D02A-129-900 | Gasket, gear housing | 1; | - | |
| 8 | S00019351 | Thrust plate, camshaft | 1; | - | |
| 9 | B00000506 | Hexagon head bolts-full thread | 3; | - | |
| 10 | D02A-166-01 | Заглушка, трубка | 3; | - | |
| 11 | B00002139 | HEX HEAD BOLT | 4; | - | |
| 12 | D02A-321-901 | Spacer | 2; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
