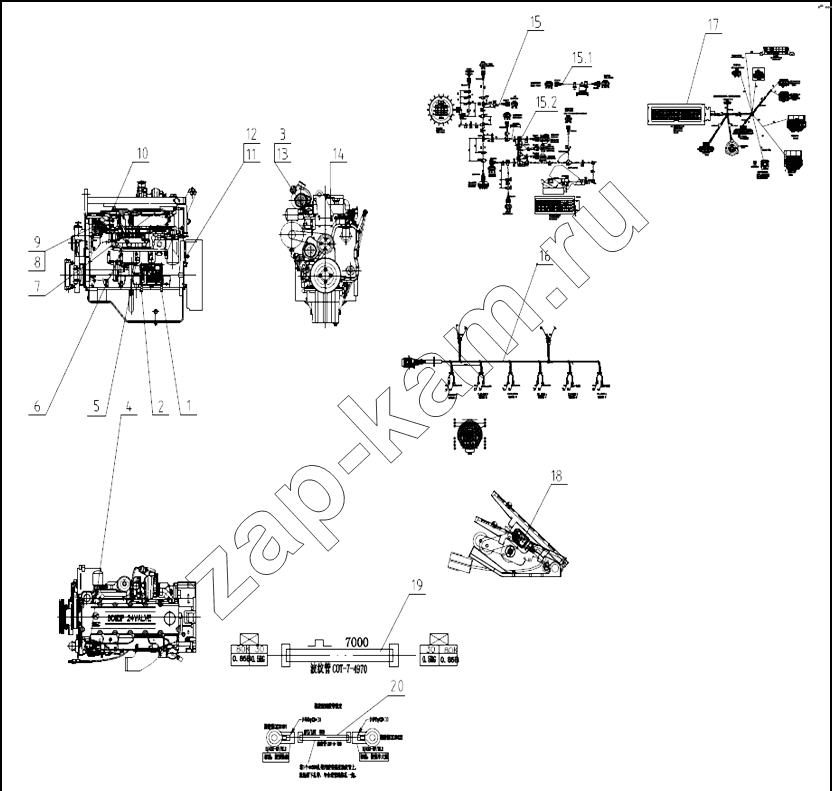

ENGINE APPLICATION OPTION, FOR CUSTOMER
/ SDEC SC9DF290Q4
12
20
19
18
17
16
15
14
13
1
11
10
9
8
7
6
5
4
3
2
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 12 | B00002045 | Hexagon bolts with flange | 1; | - | |
| 20 | S00016889 | Harness, battery | 1; | - | |
| 19 | D100X-002-821 | Harness, water/fuel separator | 1; | - | |
| 18 | S00006195 | Ectronic foot pedal | 1; | - | |
| 17 | S00019087 | Harness, ecu (electronic control unit) | 1; | - | |
| 16 | D88A-012-905 | Engine harness, inside cylinder | 1; | - | |
| 15.2 | S00008362 | Main engine harness wiring | 1; | - | |
| 15.1 | D88A-110-908 | Wire, g sensor | 1; | - | |
| 15 | ELECTRONICALLY CONTROLLED ENGINE HARNESS | Electronically controlled engine harness | 1; | - | |
| 14 | S00003765 | Bracket, harness electrical-control | 1; | - | |
| 13 | B00002132 | HEX HEAD BOLT | 1; | - | |
| 1 | D88A-109-900 | Bracket, harness electrical-control | 1; | - | |
| 11 | S00007868 | Bracket, harness electrical-control | 1; | - | |
| 10 | S00008429 | Bracket, harness electrical-control | 1; | - | |
| 9 | B00002110 | Hexagon bolts with flange | 2; | - | |
| 8 | S00001429 | Bracket, harness electrical-control | 1; | - | |
| 7 | D88A-103-800 | Bracket, harness electrical-control | 5; | - | |
| 6 | D88A-107-900 | Bracket, harness electrical-control | 2; | - | |
| 5 | D88A-101-800 | Bracket, harness electrical-control | 2; | - | |
| 4 | B00002130 | HEX HEAD BOLT | 6; | - | |
| 3 | D88A-101-900 | Bracket, harness electrical-control | 2; | - | |
| 2 | D88A-103-900 | Bracket, harness electrical-control | 1; | - |
