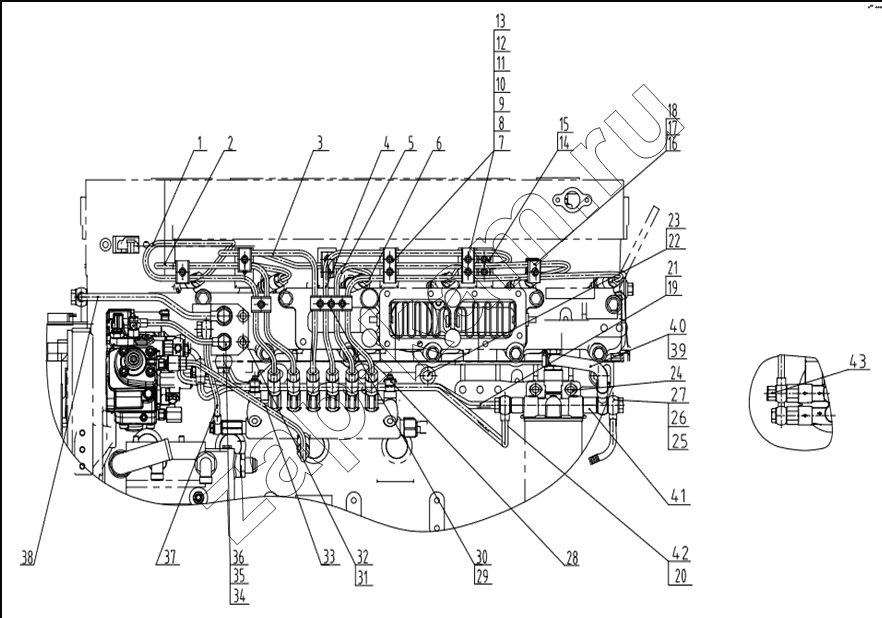

FUEL LINE GROUP
/ SDEC SC9DF290Q4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | S00021371 | High pressure fuel pipe assy | 1; | - | |
| 2 | S00021372 | High pressure fuel pipe assy | 1; | - | |
| 3 | S00021373 | High pressure fuel pipe assy | 1; | - | |
| 4 | S00021374 | High pressure fuel pipe assy | 1; | - | |
| 5 | S00021375 | High pressure fuel pipe assy | 1; | - | |
| 6 | S00021376 | High pressure fuel pipe assy | 1; | - | |
| 7 | B00002123 | Hexagon bolts with flange | 20; | - | |
| 8 | B00001297 | PLAIN WASHER | 20; | - | |
| 9 | B00001252 | SPRING WASHER | 20; | - | |
| 10 | D26C-130-800 | Clamp | 4; | - | |
| 11 | D26C-131-904 | Cushion, clamp-low pessure fuel pipe | 4; | - | |
| 12 | D26C-113-901 | Fuel pipe bracket | 5; | - | |
| 13 | B00002134 | HEX HEAD BOLT | 5; | - | |
| 14 | D26C-130-902 | Clamp | 2; | - | |
| 15 | D26C-131-902 | Cushion, clamp-low pessure fuel pipe | 4; | - | |
| 16 | D26C-105-800 | Clamp | 5; | - | |
| 17 | D26C-131-01 | Cushion, clamp-low pessure fuel pipe | 10; | - | |
| 18 | D26C-130-903 | Clamp | 3; | - | |
| 19 | B00001547 | RUBBER COATED HARD WASHER | 14; | - | |
| 20 | B00002179 | BANJO BOLT | 4; | - | |
| 21 | D26C-017-902 | Fuel inlet pipe assy, fuel injection pump | 1; | - | |
| 22 | B00002050 | HEXAGON BOLTS | 2; | - | |
| 23 | D26C-111-900 | Bracket, fuel filter | 1; | - | |
| 24 | B00002146 | BOLT, HEX FLANGE HEAD CAP | 2; | - | |
| 25 | D26C-142-901 | Hinge bolt | 1; | - | |
| 26 | D26C-015-902 | Fuel return pipe assy, low pressure | 1; | - | |
| 27 | S00008850 | Oil return connector | 2; | - | |
| 28 | D26C-131-905 | Cushion, clamp-low pessure fuel pipe | 4; | - | |
| 29 | D26C-105-900 | Clamp | 1; | - | |
| 30 | D26C-131-900 | Cushion, clamp-low pessure fuel pipe | 2; | - | |
| 31 | B00002139 | HEX HEAD BOLT | 2; | - | |
| 32 | D26C-143-901 | Joint adapter, fuel pipe | 1; | - | |
| 33 | S00021377 | Fuel inlet pipe assy, rail | 1; | - | |
| 34 | B00002178 | BANJO BOLT | 2; | - | |
| 35 | B00001546 | RUBBER COATED HARD WASHER | 5; | - | |
| 36 | D26C-019-902 | Fuel return pipe assy, fuel injection pump | 1; | - | |
| 37 | D26C-011-902 | Fuel return pipe assy, rail | 1; | - | |
| 38 | D26C-009-900 | Fuel return pipe assy, injector | 1; | - | |
| 39 | B00001563 | CLAMP | 2; | - | |
| 40 | D26C-144-900 | Oil return rubber tube – oil filter | 1; | - | |
| 41 | D26C-022-900 | Joint | 1; | - | |
| 42 | D26C-018-900 | Fuel return pipe assy, fuel injection pump | 1; | - | |
| 43 | D26C-142-902 | Hinge bolt | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
