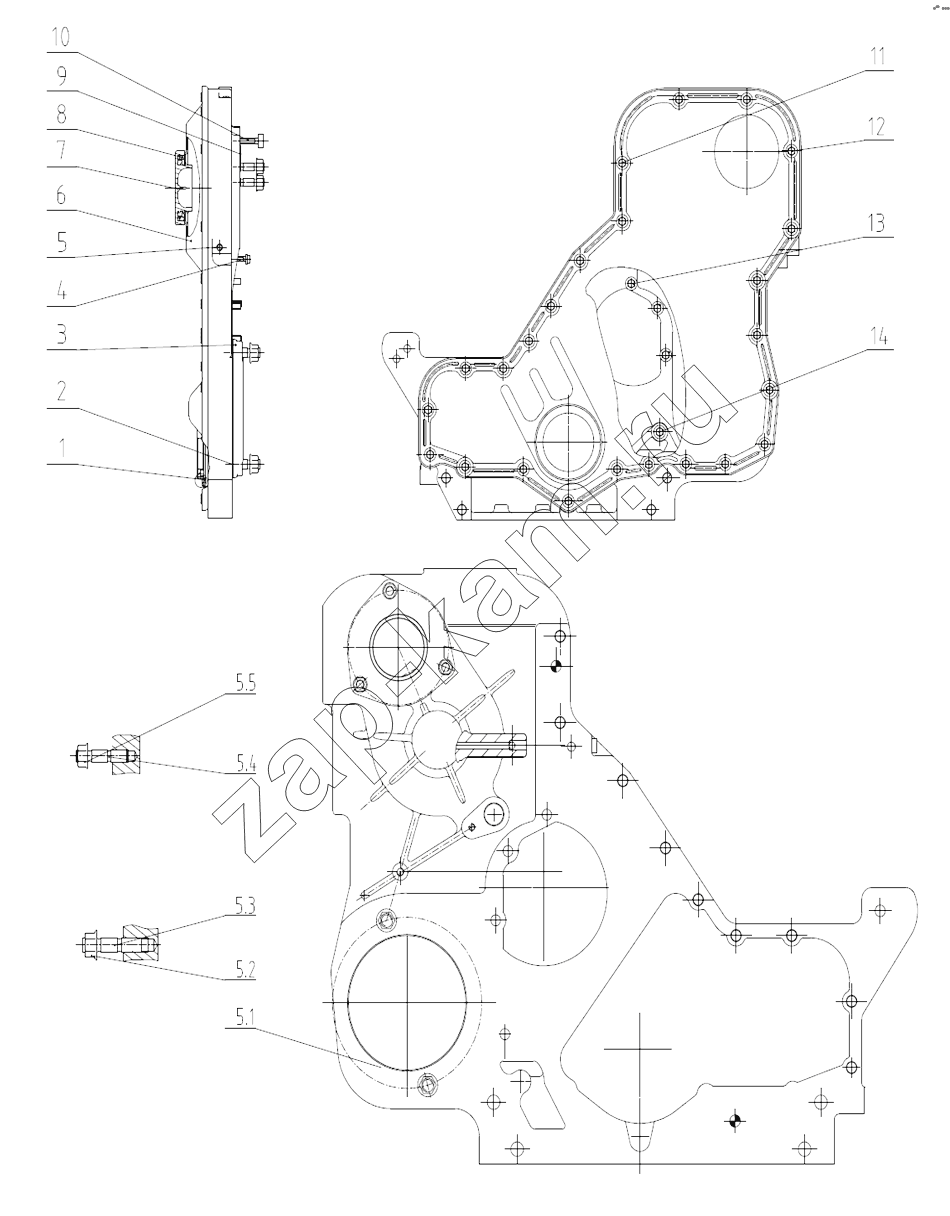

GEAR HOUSING GROUP
/ SDEC SC9DF290Q4
14
13
12
11
10
9
8
7
6
1
5
4
3
2
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 5.4 | D13-303-01 | STUD | 3; | - | |
| 14 | B00002142 | HEX HEAD BOLT | 1; | - | |
| 13 | B00002135 | HEX HEAD BOLT | 3; | - | |
| 12 | D02B-300-01 | Болт | 15; | - | |
| 11 | B00002150 | HEX HEAD BOLT | 9; | - | |
| 10 | B00000918 | Hexagon socket head cap screws | 1; | - | |
| 9 | B00001387 | O-ring | 1; | - | |
| 8 | D02B-109-03 | SEALING RING | 1; | - | |
| 7 | D02B-108-01B | GEAR HOUSING OIL FILL SCREW CAP | 1; | - | |
| 6 | D02B-102-901 | Cover, gear housing | 1; | - | |
| 5.5 | B00000846 | NUT, HEX FLANGE HEAD CAP | 3; | - | |
| 1 | D02B-104-02A | CRANKSHAFT FRONT SEAL | 1; | - | |
| 5.3 | B00001125 | STUD | 2; | - | |
| 5.2 | B00000836 | NUT, HEX FLANGE HEAD CAP | 2; | - | |
| 5.1.2 | D04-132-01 | Заглушка, трубка | 3; | - | |
| 5.1.1 | D02B-101-900 | Housing, gear | 1; | - | |
| 5.1 | S00011533 | Screw plug assembly, gear housing | 1; | - | |
| 5 | HOUSING ASSY, GEAR | Housing assy, gear | 1; | - | |
| 4 | B00002111 | HEX HEAD BOLT | 1; | - | |
| 3 | D02B-105-40 | PTO PLATE | 1; | - | |
| 2 | D02B-106-900 | Gasket, pto | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
