5. INJECTOR GROUP

INJECTOR GROUP
/ SDEC SC9DF290Q4

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано SC11CB220G2B1 (2013) SC9D220G2B1 (2015) SC9DF260Q5 SC9DF290Q4 (2015) SDEC 6CL280-2 (2015) SDEC 6CL320-2 SDEC C6121ZG57a (2010) SDEC серии 6114В (2010)

Схема > Не выбрано CYLINDER BLOCK GROUP GEAR HOUSING GROUP FLYWHEEL HOUSING GROUP RAIL TUBE GROUP OIL PAN GROUP CYLINDER BLOCK GROUP POWER CYLINDER GROUP CRANKSHAFT GROUP GEAR GROUP, DRIVE PUMP CAMSHAFT GROUP OIL PUMP GROUP FRONT GEAR MECHANISM GROUP FAN GROUP, INFLOW TYPE OIL FILTER GROUP OIL COOLER GROUP ENGINE OIL GROUP THERMOSTAT COOLING LINE GROUP ENGINE APPLICATION COOLING LINE GROUP INJECTOR GROUP FUEL INJECTION PUMP GROUP CRANKCASE VENT FILTER GROUP AIR COMPRESSOR ASSY FINE FUEL FILTER GROUP CONTROL SYSTEM GROUP CRANKING SYSTEM GROUP ENGINE BRAKE GROUP, EXHAUST TURBOCHARGER AIR INTAKE PIPE GROUP AIR LINE GROUP, ENGINE APPLICATION ENGINE APPLICATION OPTION, FOR CUSTOMER SCR GROUP PARTS GROUP, ENGINE APPLICATION WATER PUMP GROUP FUEL LINE GROUP EXHAUST MANIFOLD GROUP SUPPORT GROUP, ENGINE

1

2

3

4

5

6

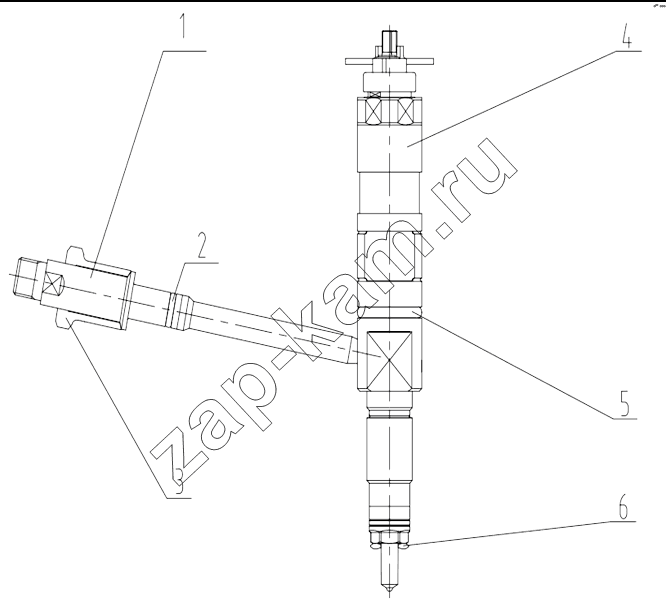

Поз.	Артикул		Название детали	Кол-во
1	D28-003-901		Injector connector	6;
2	D28-107-02		O-ring	6;
3	D28-106-900		Fixing bolt	6;
4	D28-001-906		Injector assy	6;
5	D28-106-01		O-ring	6;
6	D28-105-900		Gasket, injector	6;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
