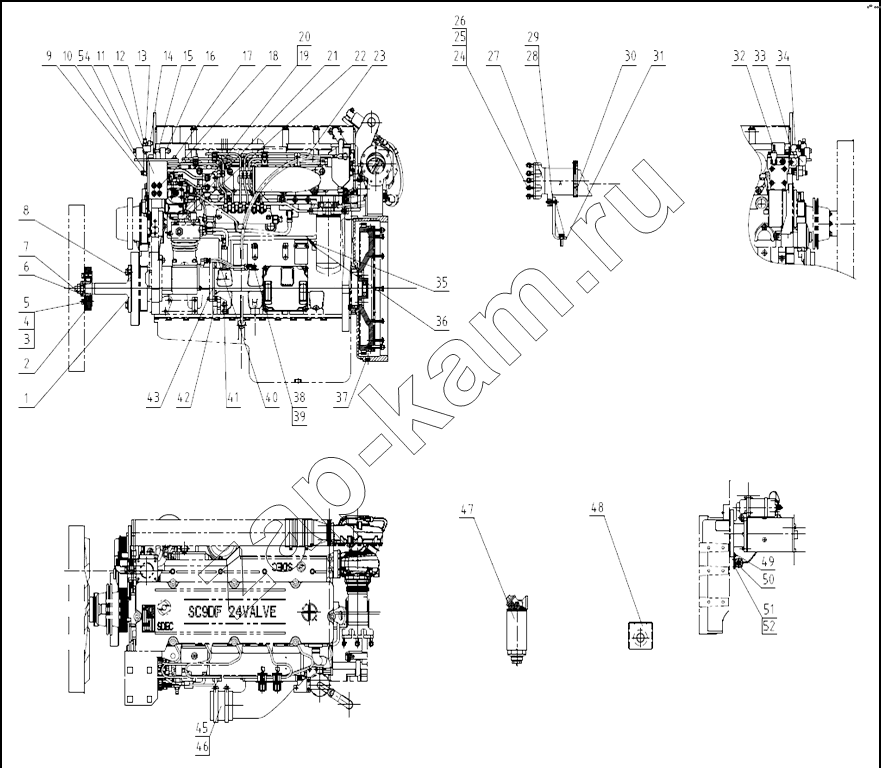

PARTS GROUP, ENGINE APPLICATION
/ SDEC SC9DF290Q4
42
29
30
31
32
33
34
35
36
37
38
39
40
41
28
43
45
46
47
48
49
50
51
52
54
S00022039
15
2
3
4
5
6
7
8
9
10
11
12
13
14
1
16
17
18
19
20
21
22
23
24
25
26
27
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 42 | D00-101-40A | BRACKET, AIR COMPRESSOR | 1; | - | |
| 29 | B00001799 | Bigger black washers | 4; | - | |
| 30 | D13-001-01 | Зажим | 1; | - | |
| 31 | D00-143-900 | Exhaust pipe adapter bracket | 1; | - | |
| 32 | T04-151-01 | Bleeding joint | 1; | - | |
| 33 | D00-219-01 | Joint adapter, water temperature sensor | 1; | - | |
| 34 | D00-163-08 | Joint, warm water outlet from engine | 1; | - | |
| 35 | D00-169-50 | Joint adapter, oil pressure sensor | 1; | - | |
| 36 | D88A-008-800 | Sensor, oil pressure | 1; | - | |
| 37 | D02A-163-01 | Заглушка, трубка | 1; | - | |
| 38 | S00000509 | Air compressor oil inlet elbow connector | 1; | - | |
| 39 | D31-106-30 | Sensor, oil pressure | 1; | - | |
| 40 | D00-106-02A | OIL INLET PIPE, AIR COMPRESSOR | 1; | - | |
| 41 | B00001996 | HEXAGON BOLTS WITH FLANGE-SMALL SERIES | 2; | - | |
| 28 | B00002049 | BOLT, HEX FLANGE HEAD CAP | 4; | - | |
| 43 | D02B-115-01A | Gasket, steering pump | 1; | - | |
| 45 | B00002282 | Rubber hose, water | 1; | - | |
| 46 | B00001532 | Spring clamp | 2; | - | |
| 47 | D00-034-901 | Water/fuel separator assy | 1; | - | |
| 47.1 | D00-305-02 | Filter, water/fuel separator | 1; | - | |
| 47.2 | S00004489 | Water drain cock and water level sensor connector assy | 1; | - | |
| 48 | D87-023-900 | Ambient temperature sensor box | 1; | - | |
| 49 | D11-115-02 | BRACKET STARTING RELAY | 1; | - | |
| 50 | D11-116-01A | STARTING RELAY | 1; | - | |
| 51 | B00002118 | HEX HEAD BOLT | 2; | - | |
| 52 | B00000843 | NUT, HEX FLANGE HEAD CAP | 2; | - | |
| 54 | B00000398 | Hexagon head bolts | 1; | - | |
| S00022039 | S00022039 | Heat shield, turbocharger | 1; | - | |
| 15 | B00002026 | Hexagon bolts with flange | 1; | - | |
| 2 | D00-002-01A | RUBBER VULCANIZED COUPLING PLATE, FAN | 1; | - | |
| 3 | B00001240 | Single coil spring lock washers, Normal type | 4; | - | |
| 4 | B00004836 | HEXAGON HEAD BOLT | 4; | - | |
| 5 | B00001279 | WASHER, PLAIN | 4; | - | |
| 6 | D00-110-01 | Зажим | 1; | - | |
| 7 | D00-147-01 | Колпачок винта, вентилятор | 1; | - | |
| 8 | B00002001 | BOLT, HEX FLANGE HEAD CAP | 4; | - | |
| 9 | B00002003 | BOLT, HEX FLANGE HEAD CAP | 4; | - | |
| 10 | B00001276 | WASHER, PLAIN | 2; | - | |
| 11 | S00022056 | Bracket, air conditioner compressor | 1; | - | |
| 12 | B00000834 | NUT, HEX FLANGE HEAD CAP | 13; | - | |
| 13 | D00-242-07 | Bolt | 1; | - | |
| 14 | D00-176-01 | Rod sleeve | 1; | - | |
| 1 | D00-109-05 | Shaft, fan drive | 1; | - | |
| 16 | D11-104-01 | Распорная втулка | 1; | - | |
| 17 | B00002136 | Hexagon bolts with flange | 2; | - | |
| 18 | B00002000 | BOLT, HEX FLANGE HEAD CAP | 4; | - | |
| 19 | D00-296-04 | Hinge bolt | 1; | - | |
| 20 | B00002196 | Washer | 3; | - | |
| 21 | D00-160-64 | Joint, air outlet pipe-air compressor | 1; | - | |
| 22 | D00-140-18 | Spacer | 1; | - | |
| 23 | D00-037-901 | Oil dipstick and tube adapter assy | 1; | - | |
| 24 | B00001238 | Single coil spring lock washers, Normal type | 7; | - | |
| 25 | D13-103-01 | Палец | 6; | - | |
| 26 | D13-304-01 | Гайка | 6; | - | |
| 27 | D00-119-900 | Exhaust pipe, turbocharger | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
