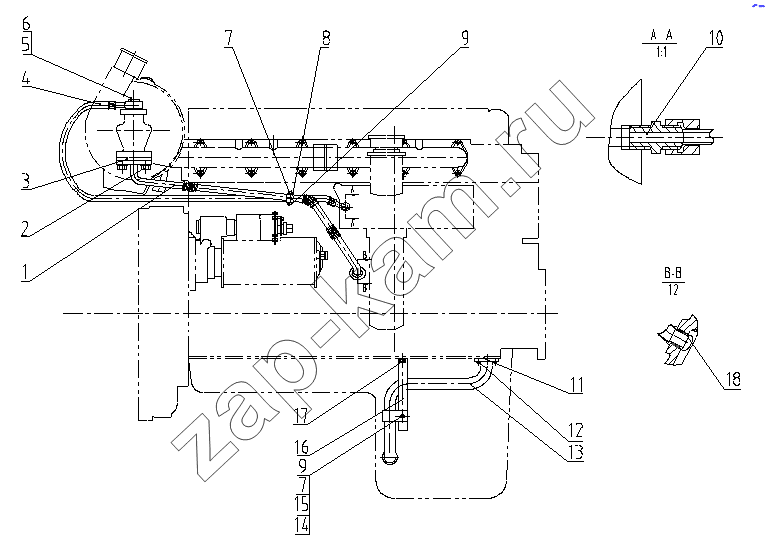

D19-000-88 ENGINE OIL LINES GROUP
/ SDEC 6CL280-2
1
2
3
4
5
6
7
7
8
9
9
10
11
12
13
14
15
16
17
18
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | S00003328 | TURBOCHARGER OIL RETURN TUBE ASSY | 1; | - | |
| 2 | B00001999 | HEX HEAD BOLT | 2; | - | |
| 3 | D19-113-02 | Прокладка | 1; | - | |
| 4 | D19-110-03C | OIL INLET PIPE, TURBOCHARGER | 1; | - | |
| 5 | B00002193 | WASHER | 2; | - | |
| 6 | B00002178 | BANJO BOLT | 1; | - | |
| 7 | B00002118 | HEX HEAD BOLT | 2; | - | |
| 8 | D19-003-01A | CLAMP ASSY | 2; | - | |
| 9 | B00000843 | NUT, HEX FLANGE HEAD CAP | 2; | - | |
| 10 | D19-118-01 | Соединительный элемент | 1; | - | |
| 11 | D19-114-01A | GASKET, PIPE FLANGE-OIL SUCTION PUMP | 1; | - | |
| 12 | B00003351 | HEXAGON SOCKET HEAD CAP SCREW | 2; | - | |
| 13 | D19-001-42 | OIL SUCTION PIPE ASSY, OIL SUCTION PUMP | 1; | - | |
| 14 | B00001297 | PLAIN WASHER | 1; | - | |
| 15 | B00001252 | SPRING WASHER | 1; | - | |
| 16 | D19-105-30 | BRACE, OIL SUCTION PIPE-OIL SUCTION PUMP | 1; | - | |
| 17 | B00002111 | HEX HEAD BOLT | 2; | - | |
| 18 | D02A-171-80 | O-RING | 2; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
