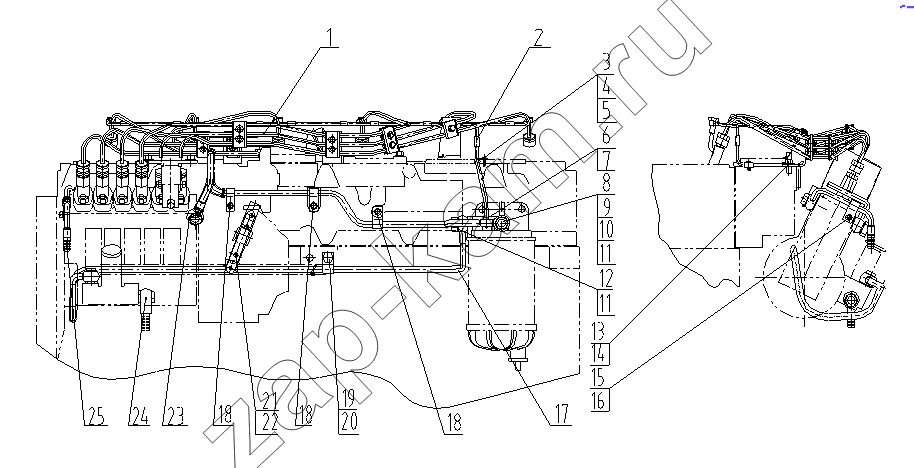

D26-000-128 FUEL LINES GROUP
/ SDEC 6CL280-2
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
18
18
19
20
21
22
23
24
25
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | D26-020-08 | HIGH PRESSURE FUEL PIPE ASSY | 1; | |
| 2 | D26-008-34A | OIL RETURN PIPE | 1; | |
| 3 | D26-117-01 | Зажим | 2; | |
| 4 | B00000582 | HEXAGON HEAD BOLT | 2; | |
| 5 | B00001293 | PLAIN WASHER | 2; | |
| 6 | B00002185 | BANJO BOLT | 1; | |
| 7 | B00001555 | RUBBER COATED HARD WASHER | 2; | |
| 8 | B00001724 | HEXAGON PIPE PLUG | 1; | |
| 9 | B00001545 | RUBBER COATED HARD WASHER | 1; | |
| 10 | D26-121-31 | BANJO BOLT | 1; | |
| 11 | B00001547 | RUBBER COATED HARD WASHER | 4; | |
| 12 | B00002179 | BANJO BOLT | 1; | |
| 13 | B00002145 | HEX HEAD BOLT | 1; | |
| 14 | B00000846 | NUT, HEX FLANGE HEAD CAP | 2; | |
| 15 | B00002130 | HEX HEAD BOLT | 1; | |
| 16 | D26-117-31 | CLAMP | 1; | |
| 17 | D26-115-41 | FUEL SUPPLY PUMP OUTLET TUBE | 1; | |
| 18 | D26-117-34 | CLAMP | 3; | |
| 19 | D26-117-39 | CLAMP | 1; | |
| 20 | B00002134 | HEX HEAD BOLT | 1; | |
| 21 | D26-128-03 | HANDLE | 1; | |
| 22 | B00002143 | HEX HEAD BOLT | 2; | |
| 23 | D26-114-31A | FUEL INJECTION PUMP FUEL INLET TUBE | 1; | |
| 24 | D26-007-01 | Сварное соединение | 1; | |
| 25 | D26-030-03 | Трубка, обратная топливная линия | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
