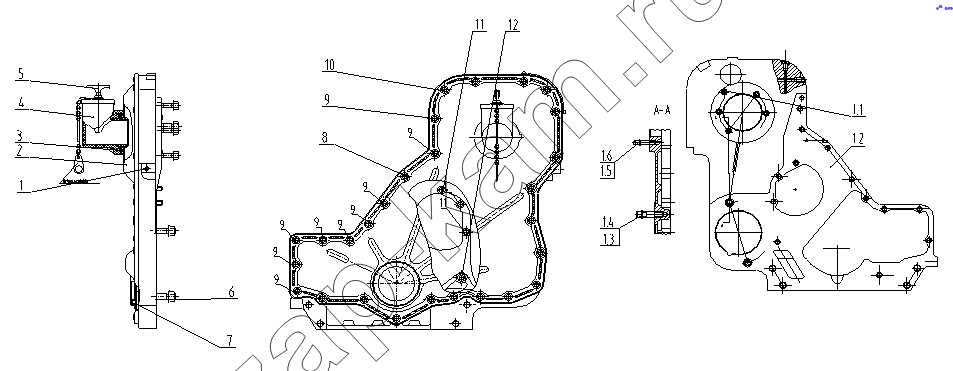

GEAR HOUSING GROUP
/ SDEC 6CL320-2
1
1.1
1.2
1.3
1.4
1.5
1.6
2
3
4
5
6
7
8
9
9
9
9
9
9
9
9
9
10
11
12
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | D02B-001-40 | GEAR HOUSING ASSY | 1; | |
| 1.1 | S00011222 | SCREW PLUG ASSEMBLY, GEAR HOUSING | 1; | |
| 1.2 | B00000836 | NUT, HEX FLANGE HEAD CAP | 2; | |
| 1.3 | B00001125 | STUD | 2; | |
| 1.4 | B00000833 | NUT, HEX FLANGE HEAD CAP | 4; | |
| 1.5 | B00001104 | STUD | 4; | |
| 1.6 | B00001391 | O-RING | 1; | |
| 2 | D02B-102-40 | COVER | 1; | |
| 3 | D02B-109-03 | SEALING RING | 1; | |
| 4 | D02B-108-04C | PIPE ELBOW, OIL FILLER | 1; | |
| 5 | D02A-006-01A | COVER ASSY, OIL FILLER | 1; | |
| 6 | D02B-106-40 | PTO GASKET | 1; | |
| 7 | D02B-104-02A | CRANKSHAFT FRONT SEAL | 1; | |
| 8 | B00002147 | HEX HEAD BOLT | 1; | |
| 9 | B00002150 | HEX HEAD BOLT | 9; | |
| 10 | D02B-300-01 | Болт | 17; | |
| 11 | B00002135 | HEX HEAD BOLT | 3; | |
| 12 | B00002142 | HEX HEAD BOLT | 1; |
