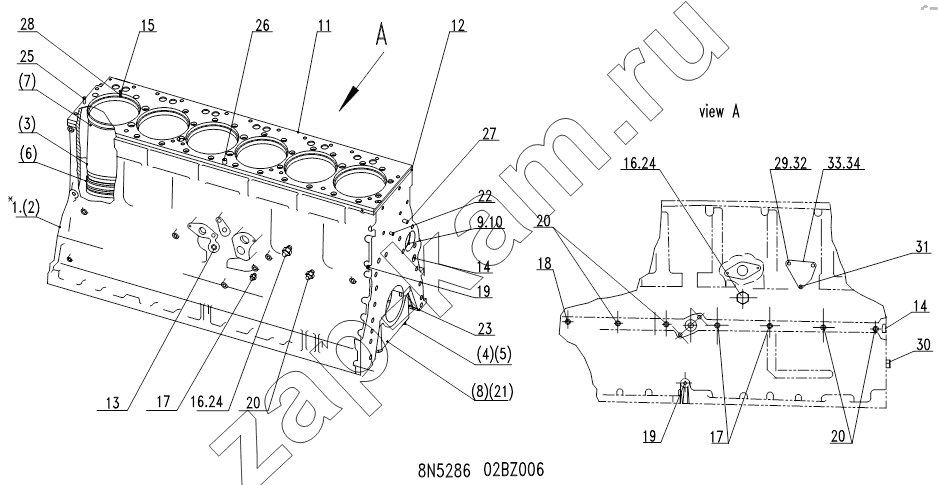

BLOCK AND COVER GP
/ SDEC C6121ZG57a
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
16
17
17
18
19
19
20
20
20
21
22
23
24
24
25
26
27
28
29
30
31
32
33
34
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 7N6550 | BLOCK AS.-CYLINDER | 1; | - | |
| 2 | 4P0623 | BLOCK AS-CYLINDER | 1; | - | |
| 3 | 1105800 | LINER-CYLINDER | 6; | - | |
| 4 | 6N8001 | CAP-CRANKSHAFT BEARING | 6; | - | |
| 5 | 6N8002 | CAP-CRANKSHAFT BEARING | 1; | - | |
| 6 | 5S6670 | SEAL-O-RING | 18; | - | |
| 7 | 2W6134 | BAND-FILLER | 6; | - | |
| 8 | 7S3224 | BOLT | 14; | - | |
| 9 | 7M4046 | BEARING | 4; | - | |
| 10 | 8N4110 | BEARING | 1; | - | |
| 11 | 7N7998 | PLATE | 1; | - | |
| 12 | 7W7546 | GASKET-PLATE | 1; | - | |
| 13 | 4B5387 | PLUG | 1; | - | |
| 14 | 3B0623 | PLUG | 1; | - | |
| 15 | 1S9540 | DOWEL | 1; | - | |
| 16 | 8M9307 | PLUG | 1; | - | |
| 17 | 2B0858 | PLUG-PIPE | 3; | - | |
| 18 | 7H3171 | PLUG-PIPE | 1; | - | |
| 19 | 5M6214 | PLUG-PIPE | 1; | - | |
| 20 | 5M6213 | PLUG | 4; | - | |
| 21 | 2S5658 | WASHER | 14; | - | |
| 22 | 5S8462 | STUD | 1; | - | |
| 23 | GB/T308-9.5250 | STEEL SPHERE | 1; | - | |
| 24 | 6F7062 | WASHER | 1; | - | |
| 25 | 8K1207 | PIN | 2; | - | |
| 26 | 5B7652 | DOWEL | 2; | - | |
| 27 | 8B6349 | DOWEL | 2; | - | |
| 28 | 3S5496 | SEAL | 1; | - | |
| 29 | 5M2894 | WASHER | 2; | - | |
| 30 | 362A001 | DOWEL | 2; | - | |
| 31 | 8M3267 | BOLT | 1; | - | |
| 32 | 0L1351 | BOLT | 2; | - | |
| 33 | 8L8662 | COVER | 1; | - | |
| 34 | 5S8055 | WASHER | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
