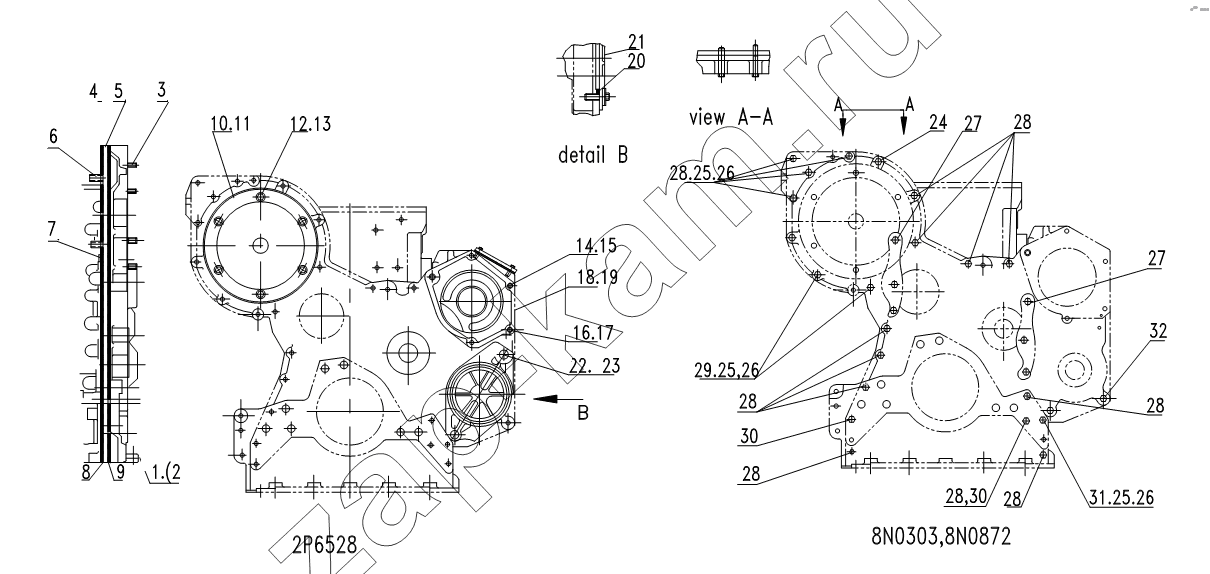

FRONT HOUSING, COVER AND FASTENER GP
/ SDEC C6121ZG57a
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
25
26
26
26
27
27
28
28
28
28
28
28
28
29
30
30
31
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 610923 | HOUSING AS.-FRONT | 1; | |
| 2 | 4P9863 | HOUSING-FRONT | 1; | |
| 3 | 9X2485 | STUD | 6; | |
| 4 | 1W7816 | PLATE AS.-FRONT | 1; | |
| 5 | 1W7110 | PLATE-FRONT | 1; | |
| 6 | 6H0192 | STUD | 3; | |
| 7 | 5M6214 | PLUG-PIPE | 1; | |
| 8 | 8N0110 | GASKET-FRONT PLATE | 1; | |
| 9 | 1W3900 | GASKET-FRONT CORER | 1; | |
| 10 | 9N5769 | COVER-FRONT HOUSING | 1; | |
| 11 | 6N7887 | GASKET-FRONT HOUSING COVER | 1; | |
| 12 | 3S2713 | NUT | 6; | |
| 13 | 8M9024 | WASHER-HARD | 6; | |
| 14 | 3B1915 | BOLT | 3; | |
| 15 | 5M2894 | WASHER | 3; | |
| 16 | 0S1566 | BOLT | 2; | |
| 17 | 5P8247 | WASHER | 2; | |
| 18 | 1W4542 | COVER | 1; | |
| 19 | 2P0220 | GASKET | 1; | |
| 20 | 5F3106 | SEAL | 1; | |
| 21 | S7N8374 | COVER | 1; | |
| 22 | 0S1566 | BOLT | 2; | |
| 23 | 5P8247 | WASHER | 2; | |
| 24 | 1C2251 | BOLT | 2; | |
| 25 | 5M2894 | WASHER | 8; | |
| 26 | 6V8801 | HUT | 8; | |
| 27 | 308535 | BOLT | 6; | |
| 28 | 0L2070 | BOLT | 15; | |
| 29 | 0L2070 | BOLT | 2; | |
| 30 | 0L2070 | BOLT | 2; | |
| 31 | 0L2070 | BOLT | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
