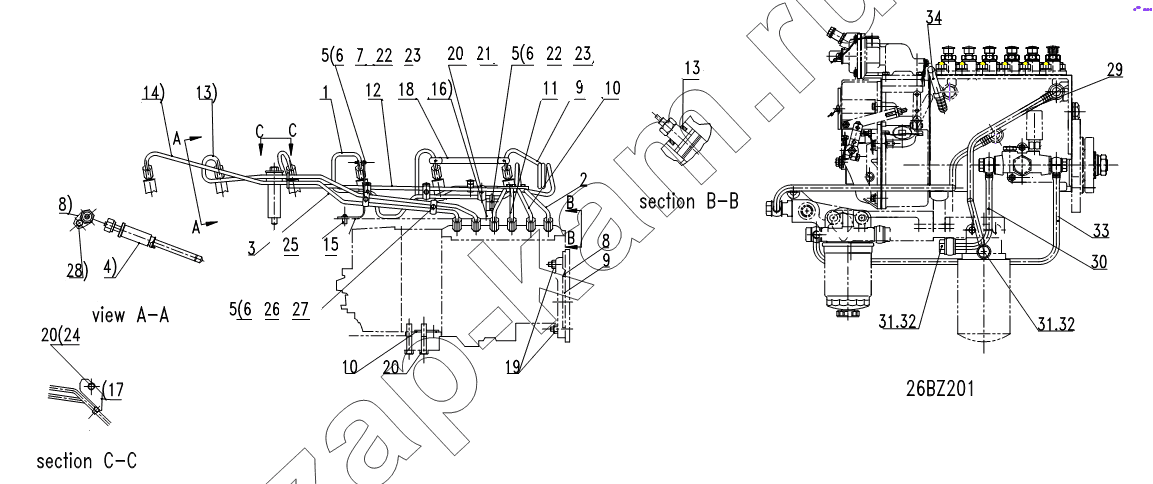

FUEL INJECTION AND DRAIN LINES GP
/ SDEC C6121ZG57a
1
2
3
4
5
5
5
6
6
6
7
8
8
9
9
10
10
11
12
13
13
14
15
16
17
18
19
20
20
20
21
22
22
23
23
24
25
26
27
28
29
30
31
31
32
32
33
34
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 5P4939 | 5P4939 | BOLT | 8; | - | |
| 1 | 26AB201 | LINES GP | 1; | - | |
| 2 | 26AB202 | LINES GP-FUEL INJECTION (D) | 1; | - | |
| 3 | 26AB203 | LINES GP-FUEL INJECTION (D) | 1; | - | |
| 4 | 8N7005 | NOZZLE AS.-DIRECT INJECTION FUEL VALVE | 6; | - | |
| 5 | 1W9168 | CLAMP-FUEL LINE | 12; | - | |
| 6 | 1W9169 | CLAMP-FUEL LINE | 12; | - | |
| 7 | 1W9167 | CLAMP AS.-FUEL LINE | 3; | - | |
| 8 | 7C3469 | CLAMP-NOZZLE | 6; | - | |
| 9 | 26AB204 | LINE AS.-FUEL INJECTION | 1; | - | |
| 10 | 26AB205 | LINE AS.-FUEL INJECTION | 1; | - | |
| 11 | 26AB206 | LINE AS.-FUEL INJECTION | 1; | - | |
| 12 | 26AB207 | LINE AS.-FUEL INJECTION | 1; | - | |
| 13 | 26AB208 | LINE AS.-FUEL INJECTION | 1; | - | |
| 14 | 26AB209 | LINE AS.-FUEL INJECTION | 1; | - | |
| 15 | 4P2578 | BRACKET | 1; | - | |
| 16 | 7C7614 | BRACKET AS. | 1; | - | |
| 17 | 1229405 | BRACKET AS. | 1; | - | |
| 18 | 9Y7524 | CLAMP | 1; | - | |
| 19 | 3S2713 | NUT | 3; | - | |
| 20 | 5M2894 | WASHER | 2; | - | |
| 21 | 0S1591 | BOLT | 1; | - | |
| 22 | 9N3388 | LOCK | 5; | - | |
| 23 | 4B4274 | WASHER | 4; | - | |
| 24 | 0T0055 | BOLT | 1; | - | |
| 25 | 2P3200 | BOLT | 1; | - | |
| 26 | 26AL101 | BOLT | 8; | - | |
| 27 | GB/T93-5 | WASHER | 8; | - | |
| 28 | 1T0416 | BOLT | 6; | - | |
| 29 | 26BB201 | PUMP PIPE LINE | 1; | - | |
| 30 | 26BB203 | OUTLET LINE | 1; | - | |
| 31 | Q/SC642.1-01-M12x1.25x25 | BOLT | 2; | - | |
| 32 | Q/SC1294-12 | Уплотнение, резиновая интегрированная шайба | 4; | - | |
| 33 | 26BB202 | INLET LINE | 1; | - | |
| 34 | 26BB206 | PIPE AS. | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
