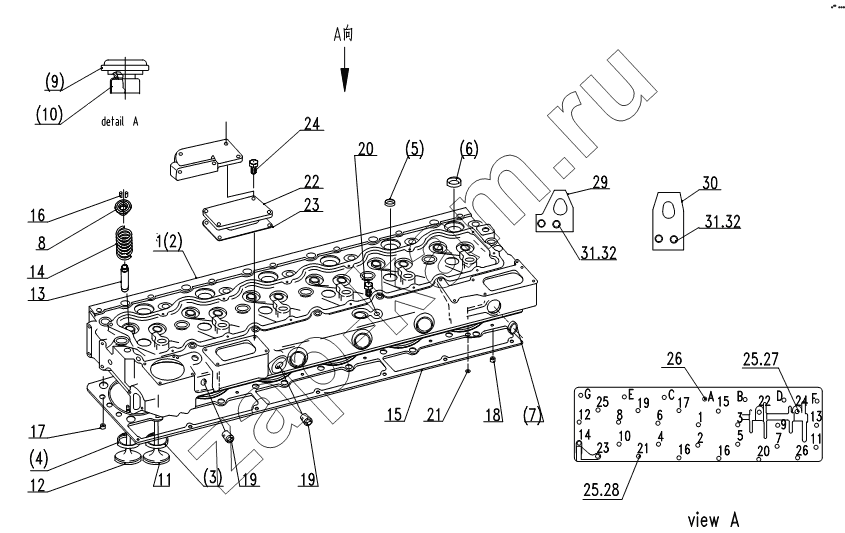

HEAD, COVER, FASTENER AND LIFTING GP
/ SDEC C6121ZG57a
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
25
26
27
28
29
30
31
31
32
32
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 7N8866 | HEAD AS. | 1; | |
| 2 | 7C3906 | HEAD-CYLINDER | 1; | |
| 3 | 7N4448 | INSERT-VALVE SEAT | 6; | |
| 4 | 7N8855 | INSERT-VALVE SEAT | 6; | |
| 5 | 3B0623 | PLUG | 6; | |
| 6 | 3P1896 | PLUG | 13; | |
| 7 | 3S8313 | PLUG | 7; | |
| 8 | 1W5300 | ROTOCOIL AS. | 12; | |
| 9 | 8N7782 | ROTOCOIL ASSEMBLY | 12; | |
| 10 | 6N7174 | SHIELD-OIL | 12; | |
| 11 | 6N9915 | VALVE | 6; | |
| 12 | 6N9916 | VALVE | 6; | |
| 13 | 1487425 | GUIDE | 12; | |
| 14 | 7S7144 | SPRING | 12; | |
| 15 | 7E6167 | GASKET | 1; | |
| 16 | 2A4429 | LOCK | 24; | |
| 17 | 9Y1798 | SEAL-WATER | 18; | |
| 18 | 7N8018 | SEAL-WATER | 6; | |
| 19 | 2B0858 | PLUG-PIPE | 3; | |
| 20 | 5M6213 | PLUG | 1; | |
| 21 | 3S5496 | SEAL | 1; | |
| 22 | 1P6758 | COVER | 1; | |
| 23 | 5S6735 | WASHER | 1; | |
| 24 | 0S1588 | BOLT | 4; | |
| 25 | 2S0736 | WASHER | 25; | |
| 26 | 5B9603 | BOLT | 7; | |
| 27 | 1B7709 | BOLT | 5; | |
| 28 | 1D4595 | BOLT | 20; | |
| 29 | 8N8722 | PLATE | 1; | |
| 30 | 8N8721 | PLATE | 1; | |
| 31 | 6V1999 | BOLT | 4; | |
| 32 | 8D5054 | WASHER | 4; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
