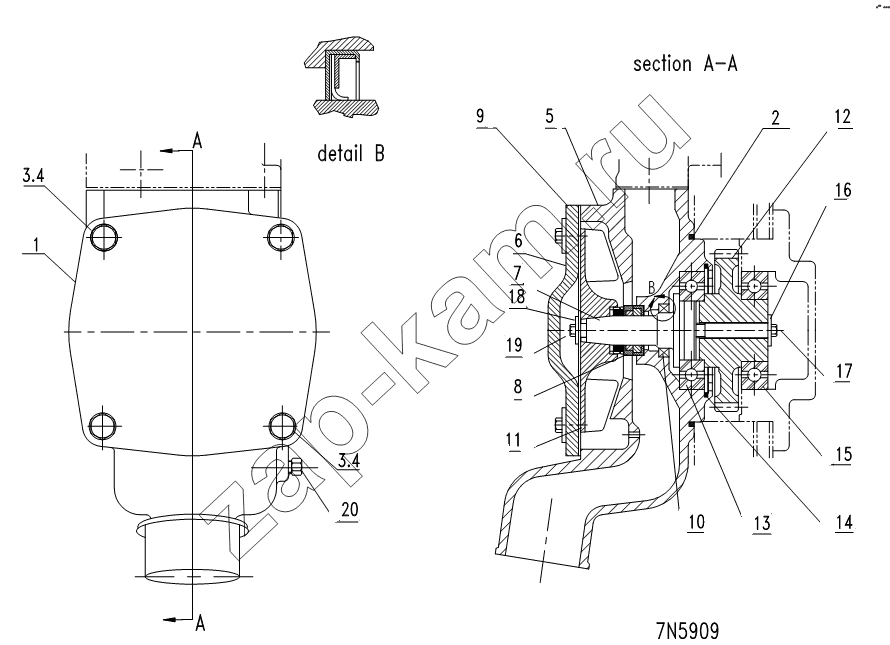

PUMP GP-WATER
/ SDEC C6121ZG57a
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 2W8001 | PUMP AS. | 1; | - | |
| 2 | 5F3106 | SEAL | 1; | - | |
| 3 | 0T0055 | BOLT | 2; | - | |
| 4 | 5M2894 | WASHER | 2; | - | |
| 5 | 20AL001 | HOUSING-WATER PUMP | 1; | - | |
| 6 | 20AL004 | COVER-WATER PUMP | 1; | - | |
| 7 | 20AL002 | SHAFT-WATER PUMP | 1; | - | |
| 8 | 30419-0 | SEAL GP-BASIC | 1; | - | |
| 9 | 20AL005 | GASKET | 1; | - | |
| 10 | 20AL006a | SEAL-FRAME TYPE | 1; | - | |
| 11 | 20AL003 | IMPELLER-WATER PUMP | 1; | - | |
| 12 | 7W0450 | GEAR ASSEMBLY-WATER PUMP | 1; | - | |
| 13 | GB/T276-6208/C3 | BEARING | 1; | - | |
| 14 | GB/T893.1-80 | RING-RETAINING | 1; | - | |
| 15 | GB/T276-6207/C3 | BEARING | 1; | - | |
| 16 | 20AL007 | WASHER | 1; | - | |
| 17 | 20AL008 | BOLT | 1; | - | |
| 18 | GB/T93-10 | WASHER | 2; | - | |
| 19 | GB/T5783-M10x25 | BOLT | 2; | - | |
| 20 | 5M6213 | PLUG | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
