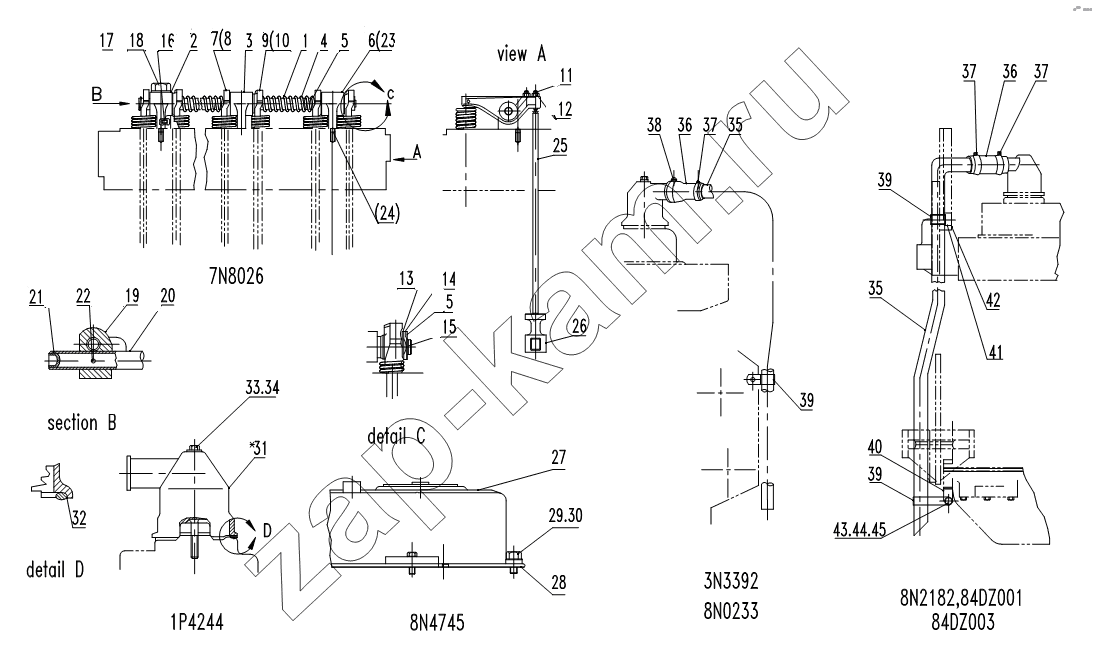

VALVE MECHANISM, COVER, BREATHER AND FUMES DISPOSAL GP
/ SDEC C6121ZG57a
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
36
36
37
37
37
38
39
39
39
40
41
42
43
44
45
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 8N4576 | MECHANISM GP.-VALVE(A) (BASIC) | 1; | - | |
| 2 | 8N3252 | ARM SHAFT AS. -ROCKER | 1; | - | |
| 3 | 5S5878 | BRACKET-ROCKER ARM SHAFT | 4; | - | |
| 4 | 4B4910 | SPRING | 5; | - | |
| 5 | 9H1110 | WASHER | 12; | - | |
| 6 | 8S1499 | BRACKET ASSEMBLY-ROCKER ARM SHAFT | 1; | - | |
| 7 | 8N3327 | ARM GP-V ROCKER | 6; | - | |
| 8 | 9Y1521 | ARM GP-V ROCKER | 6; | - | |
| 9 | 8N3325 | ARM GP-V ROCKER | 6; | - | |
| 10 | 9Y1516 | ARM GP-V ROCKER | 6; | - | |
| 11 | 5S5917 | SCREW-VALVE ROCKER AD JUSTING | 12; | - | |
| 12 | 3S2713 | NUT | 12; | - | |
| 13 | 9M9886 | WASHER | 2; | - | |
| 14 | 9H1112 | SPRING | 2; | - | |
| 15 | 9H1113 | RING-RETAINING | ; | - | |
| 16 | 8M4448 | SEAL-O RING | 1; | - | |
| 17 | 1B7709 | BOLT | 1; | - | |
| 18 | 2S0736 | WASHER | 1; | - | |
| 19 | 7N8015 | BRACKET-ROCKER ARM SHAFT | 1; | - | |
| 20 | 8N3251 | SHAFT AS.-ROCKER ARM | 1; | - | |
| 21 | 84AL002 | PLUG | 2; | - | |
| 22 | 5M4606 | DOWEL | 1; | - | |
| 23 | 8S1498 | BRACKET-ROCKER ARM SHAFT | 1; | - | |
| 24 | 1L5072 | DOWEL | 1; | - | |
| 25 | 5S5918 | ROD-VALVE PUSH | 12; | - | |
| 26 | 7S3161 | LIFTER-VALVE | 12; | - | |
| 27 | 2W1086 | COVER AS.-CYLINDER HEAD | 1; | - | |
| 28 | 1331247 | GASKET-CYLINDERHEADCOVER | 1; | - | |
| 29 | 0S1617 | BOLT | 15; | - | |
| 30 | 3B4505 | 16 | 15; | - | |
| 31 | 2W9162 | CAP AS.-BREATHE | 1; | - | |
| 32 | 4L9564 | SEAL-O-RING | 1; | - | |
| 33 | 3H3243 | BOLT | 1; | - | |
| 34 | 9N0869 | WASHER-HARD | 1; | - | |
| 35 | 84DL003 | TUBE-FUMES DISPOSAL | 1; | - | |
| 36 | 1N4102 | HOSE | 1; | - | |
| 37 | Q/SC1302-2144 | CLAMP | 1; | - | |
| 38 | Q/SC1302-2751 | CLAMP | 1; | - | |
| 39 | 1S4557 | CLIP | 1; | - | |
| 40 | 84DL002 | CLIP | 1; | - | |
| 41 | 5B0546 | SPACER | 1; | - | |
| 42 | 8B9725 | BOSS | 1; | - | |
| 43 | 5P2228 | BOLT | 1; | - | |
| 44 | 8T4223 | WASHER-HARD | 1; | - | |
| 45 | 6V8188 | NUT-FULL | 1; | - | |
| 46 | 0T0573 | BOLT | 1; | - | |
| 47 | 5M2894 | WASHER | ; | - | |
| 48 | GB/T894.1-18 | RING-RETAINING | 2; | - | |
| 49 | 161-1033 | SPRING | ; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
