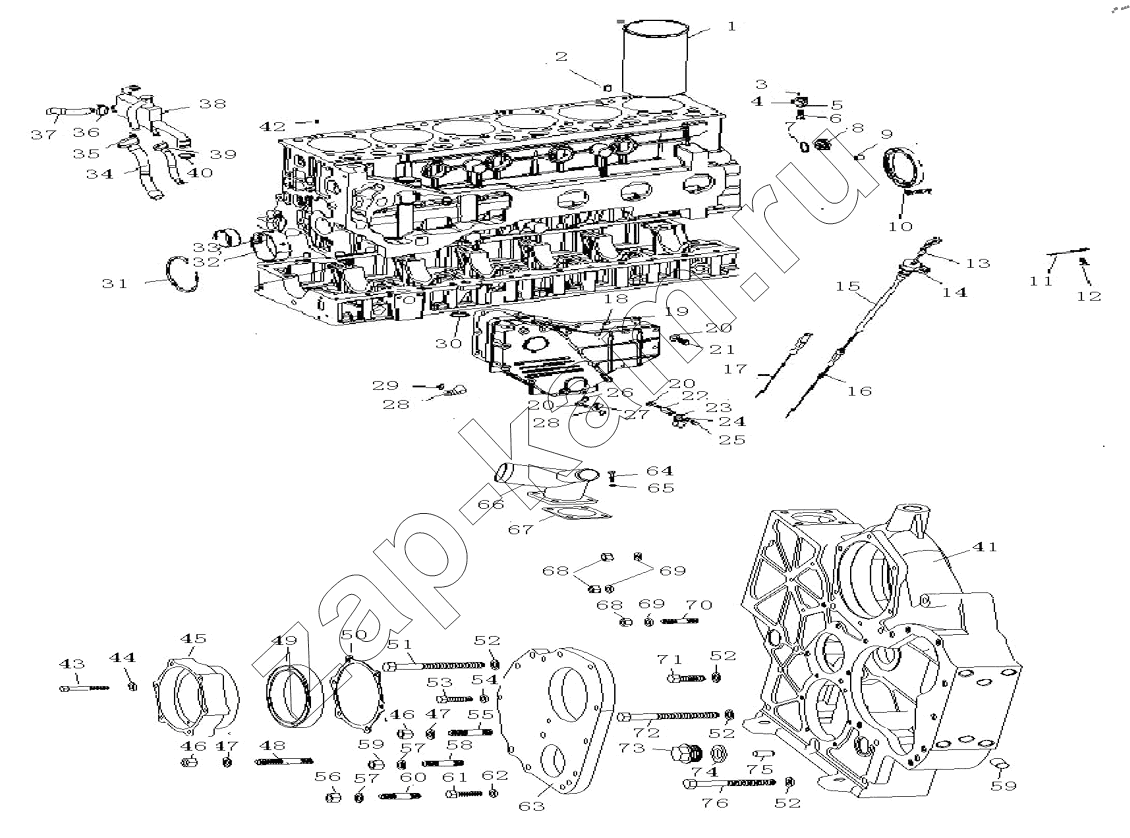

Cylinder Block
/ SITRAK D10.34-50
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
46
47
47
48
49
50
51
52
52
52
52
53
54
55
56
57
57
58
59
59
60
61
62
63
64
65
66
67
68
68
69
69
70
71
72
73
74
75
76
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | VG1540010006 | Cylinder liner | 6; | - | |
| 2 | 190003901604 | Pin | 6; | - | |
| 3 | 190003909603 | Pin | 6; | - | |
| 4 | VG2600010659 | Nozzle assembly | 6; | - | |
| 5 | VG9003080001 | Gasket | 6; | - | |
| 6 | 190003962621 | Hollow bolt | 6; | - | |
| 7 | VG2600010735 | Gasket | 1; | - | |
| 8 | VG1460070011 | Plug | 1; | - | |
| 9 | 190003901604 | Pin | 2; | - | |
| 10 | VG1047010050 | Oil seal | 1; | - | |
| 11 | VG1800210011 | Cover | 1; | - | |
| 12 | 190003802511 | Bolt | 2; | - | |
| 13 | VG1500010600 | Dipstick tube components | 1; | - | |
| 14 | VG2600010447 | Clip | 1; | - | |
| 15 | VG2600010446 | Hose | 1; | - | |
| 16 | VG2600010705 | Dipstick tube components | 1; | - | |
| 17 | VG1500010175 | Hose | 1; | - | |
| 18 | VG1034010015A | Cover | 1; | - | |
| 19 | VG1540010015B | Cooler shim | 1; | - | |
| 20 | 190003932023 | Wave washer | 2; | - | |
| 21 | 190003800467 | Bolt | 6; | - | |
| 22 | VG1500010031 | Block | 1; | - | |
| 23 | VG1500019067 | Clip | 1; | - | |
| 24 | 190003932023 | Wave washer | 27; | - | |
| 25 | Q150B0816 | Bolt | 1; | - | |
| 26 | VG9003080005 | Gasket | 3; | - | |
| 27 | 190003962020 | Plug | 3; | - | |
| 28 | VG609E110049 | Plate | 1; | - | |
| 29 | 190003930261 | Washer | 1; | - | |
| 30 | VG1400010032 | Gasket | 2; | - | |
| 31 | VG1500010125 | Shim assembly | 2; | - | |
| 32 | VG1540010022 | Bushing | 7; | - | |
| 33 | VG1540010021 | Bushing | 7; | - | |
| 34 | VG12G00040038 | Hose | 1; | - | |
| 35 | 190003989340 | Hose clamp | 1; | - | |
| 36 | 90003989301 | Hose clamp | 2; | - | |
| 37 | VG1095010034 | Hose | 1; | - | |
| 38 | VG1034010050 | Oil separator | 1; | - | |
| 39 | 190003989336 | Шланговый хомут | 2; | - | |
| 40 | Q734B2650265 | O-ring | 1; | - | |
| 41 | AZ1034010007 | Gear Case | 1; | - | |
| 42 | 190003909626 | Pin | 6; | - | |
| 43 | 190011260039 | Bolt | 6; | - | |
| 44 | VG9003080005 | Gasket | 6; | - | |
| 45 | VG2600010928 | Base | 1; | - | |
| 46 | Q340B10 | Шестигранная гайка | 2; | 100 ₽ | |
| 47 | Q41810 | Волнообразная пружинная шайба | 5; | - | |
| 48 | Q1201040F3 | Stud | 2; | - | |
| 49 | VG1047010038 | Oil seal | 1; | - | |
| 50 | VG2600010934 | Gasket | 1; | - | |
| 51 | Q150B1085 | Bolt | 2; | - | |
| 52 | 190003931122 | Spring washer | 10; | - | |
| 53 | Q150B0825 | Болт с шестигранной головкой | 1; | - | |
| 54 | Q41808 | Wave washer | 1; | - | |
| 55 | Q1201030F3 | Stud | 1; | - | |
| 56 | Q340B10 | Шестигранная гайка | 3; | 100 ₽ | |
| 57 | Q41810 | Волнообразная пружинная шайба | 3; | - | |
| 58 | Q1201025F3 | Stud | 1; | - | |
| 59 | 190003900085 | Pin | 4; | - | |
| 60 | Q1201035F3 | Stud | 1; | - | |
| 61 | Q150B1025 | Bolt | 5; | - | |
| 62 | Q41810 | Волнообразная пружинная шайба | 1; | - | |
| 63 | VG1034010006 | Cover | 1; | - | |
| 64 | 190003802321 | Bolt | 1; | - | |
| 65 | 190003931082 | Spring washer | 1; | - | |
| 66 | VG1095010040 | Tube assembly | 1; | - | |
| 67 | VG14010086 | Gasket | 1; | - | |
| 68 | 190003871252 | Nut | 6; | - | |
| 69 | 190003932023 | Wave washer | 6; | - | |
| 70 | 190003813429 | Stud | 3; | - | |
| 71 | 190003802523 | Bolt | 3; | - | |
| 72 | 190003800571 | Bolt | 1; | - | |
| 73 | 190003962051 | Plug | 2; | - | |
| 74 | VG2600010735 | Gasket | 2; | - | |
| 75 | 190003901507 | Pin | 4; | - | |
| 76 | 190003800566 | Bolt | 4; | - | |
| 77 | VG407010046 | Gasket | 1; | - | |
| 78 | 190003989480 | Plug | 1; | - | |
| 79 | 190003813467 | Stud | 2; | - | |
| 80 | VG61000010134 | Gasket | 1; | - | |
| 81 | 190003813429 | Stud | 1; | - | |
| 82 | VG1500019089 | Oil return pipe assembly | 1; | - | |
| 83 | VG1034010009 | Steering pump Shim | 1; | - | |
| 84 | 190003802493 | Bolt | 27; | - | |
| 85 | 190003802437 | Bolt | 6; | - | |
| 86 | 190003802419 | Bolt | 1; | - | |
| 87 | 190003932023 | Wave washer | 14; | - | |
| 88 | 190003800465 | Bolt | 1; | - | |
| 89 | 190003930271 | Washer | 2; | - | |
| 90 | 190003813638 | Stud | 6; | - | |
| 91 | Q1201250F3 | Studs | 2; | - | |
| 92 | VG1500010005 | Block | 2; | - | |
| 93 | 190003888453 | Nut | 8; | - | |
| 94 | Q41810 | Волнообразная пружинная шайба | 2; | - | |
| 95 | Q150B1030 | Bolt | 1; | - | |
| 96 | 190003931122 | Spring washer | 12; | - | |
| 97 | Q617B18 | Plug | 1; | - | |
| 98 | VG9003080007 | Gasket | 1; | - | |
| 99 | 190003802321 | Bolt | 4; | - | |
| 100 | 190003931082 | Spring washer | 4; | - | |
| 101 | 190003936101 | Washer | 1; | - | |
| 102 | VG2600010831 | Anti-winding safety sign | 2; | - | |
| 103 | VG2600010832 | Anti-scald safety mark | 1; | - | |
| 104 | VG288730061 | O-ring | 1; | - | |
| 105 | VG29135 | Cover | 1; | - | |
| 106 | 190003802419 | Bolt | 2; | - | |
| 107 | 190003932023 | Wave washer | 2; | - | |
| 108 | VG2600070097 | Hose | 1; | - |
