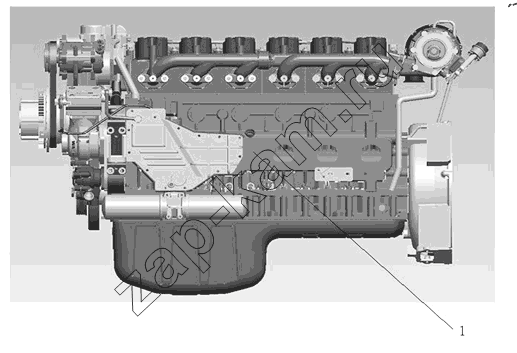

Cylinder Block Assembly
/ SITRAK D10.34-50
1
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | AZ1034010030 | Cylinder Block Assembly | 1; | |
| 1.1 | 190003989289 | Plug | 4; | |
| 1.2 | 190003982121 | Plug | 4; | |
| 1.3 | 190003989210 | Plug | 9; | |
| 1.4 | 190003901604A | Pin | 2; | |
| 1.5 | Q5211220 | Pin | 1; | |
| 1.6 | VG1560010029 | Bushing | 5; | |
| 1.7 | VG1096010010A | Bushing | 1; | |
| 1.8 | 190003989480 | Plug | 1; | |
| 1.9 | VG2600010990 | Bushing | 1; | |
| 1.10 | 190003989204 | Plug | 1; | |
| 1.11 | 190003989215 | Plug | 4; | |
| 1.12 | 190003989288 | Plug | 1; | |
| 1.13 | VG14010114 | Bolt | 13; | |
| 1.14 | VG14010217 | Bolt | 1; | |
| 1.15 | VG1500010185 | Bolt | 21; | |
| 1.16 | 190003802493 | Bolt | 27; | |
| 1.17 | VG188250083 | Washer | 27; | |
| 1.18 | 190003989289 | Plug | 4; | |
| 1.19 | 190003982121 | Plug | 4; | |
| 1.20 | 190003989210 | Plug | 9; | |
| 1.21 | 190003901604A | Pin | 2; | |
| 1.22 | Q5211220 | Pin | 1; | |
| 1.23 | VG1560010029 | Bushing | 5; | |
| 1.24 | 190003989480 | Plug | 1; | |
| 1.25 | VG2600010990 | Bushing | 1; | |
| 1.26 | 190003989204 | Plug | 1; | |
| 1.27 | 190003989215 | Plug | 4; | |
| 1.28 | 190003989288 | Plug | 1; | |
| 1.29 | VG14010114 | Bolt | 13; | |
| 1.30 | VG14010217 | Bolt | 1; | |
| 1.31 | VG1500010185 | Bolt | 21; | |
| 1.32 | 190003802493 | Bolt | 27; | |
| 1.33 | VG188250083 | Washer | 27; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
