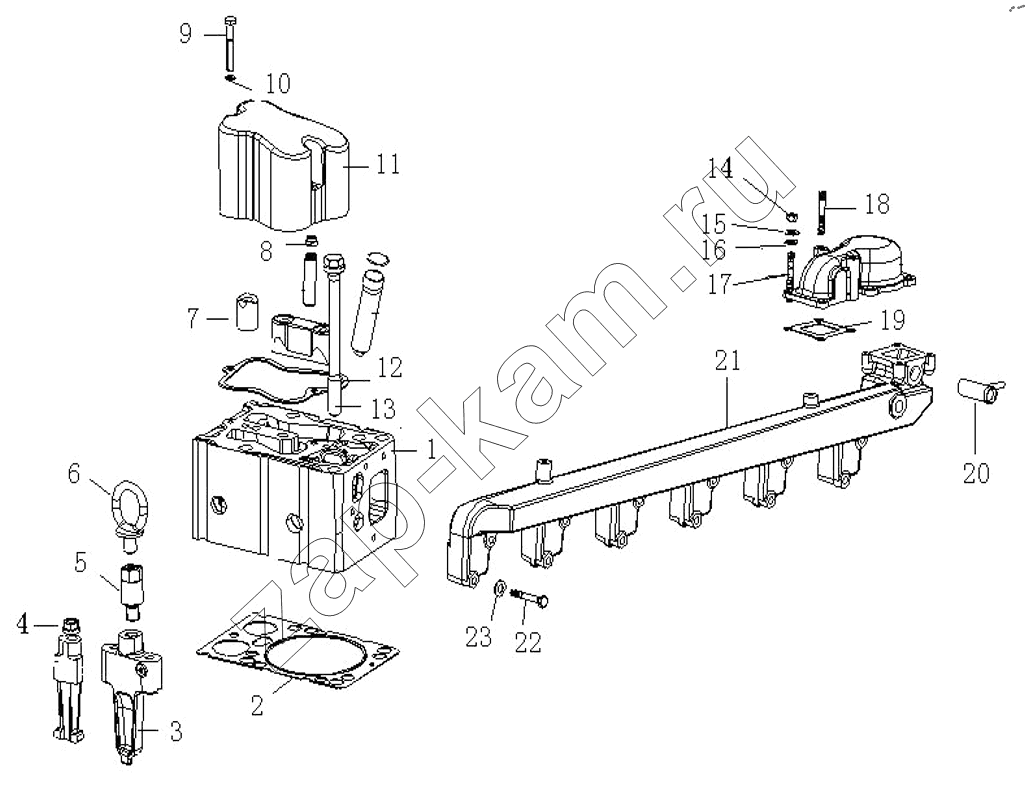

Cylinder Head
/ SITRAK D10.34-50
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | AZ1034040030 | Cylinder Head Assembly | 6; | |
| 1 | AZ1034040018 | Cylinder Head Assembly | 6; | |
| 1,1 | AZ1034040031 | Cylinder Head | 6; | |
| 2 | VG1500040065 | Gasket | 6; | |
| 3 | VG1200040027 | Block | 2; | |
| 4 | VG1200040034 | Nut | 21; | |
| 5 | VG1092040016 | Bolt | 2; | |
| 6 | VG14010388 | Bolt | 2; | |
| 7 | VG1200040023A | Block | 5; | |
| 8 | VG1560040032 | Sleeve | 12; | |
| 9 | 190003800466 | Bolt | 12; | |
| 10 | 190003932023 | Wave washer | 12; | |
| 11 | VG1500040066 | Cover | 6; | |
| 12 | VG14040021 | Gasket | 6; | |
| 13 | VG1500040023 | Bolt | 24; | |
| 14 | 190003871252 | Nut | 4; | |
| 15 | 190003932023 | Wave washer | 4; | |
| 16 | 190014040007 | Washer | 4; | |
| 17 | 190003813429 | Stud | 2; | |
| 18 | 190003813470 | Stud | 2; | |
| 19 | VG1096040331 | Gasket | 1; | |
| 20 | VG1500060045 | Nozzle assembly | 1; | |
| 20 | VG1500060045A | Nozzle assembly | 1; | |
| 21 | VG1034040027 | coolant manifold | 1; | |
| 22 | 190003800466 | Bolt | 6; | |
| 23 | 190003932023 | Wave washer | 12; | |
| 24 | VG1500040014 | Base | 6; | |
| 25 | VG1500040012 | Block | 2; | |
| 26 | VG9003080003 | Gasket | 1; | |
| 27 | 190003962014 | Plug | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
