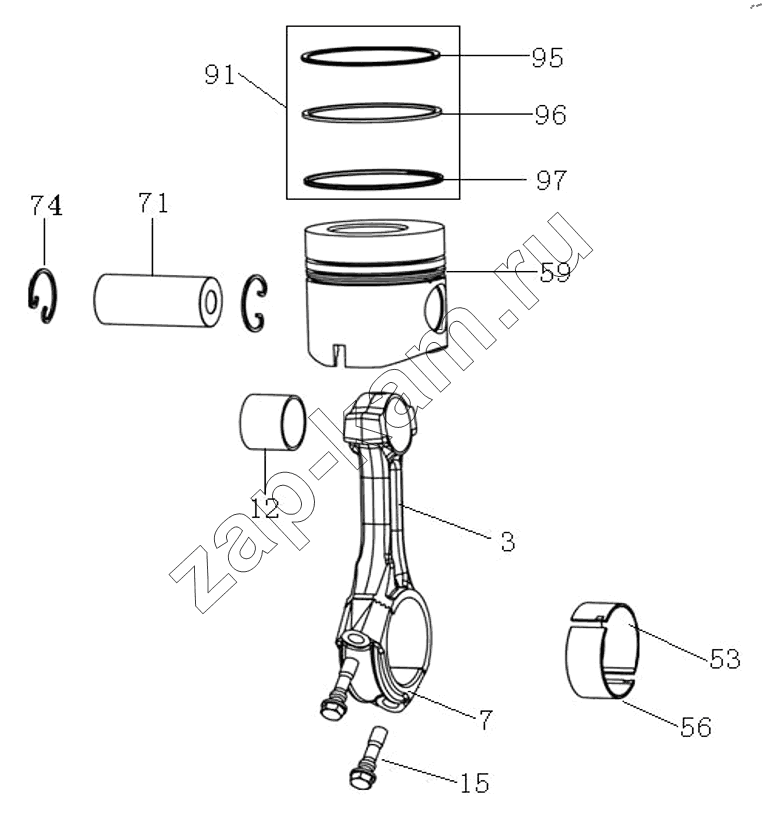

Piston and Connecting rod
/ SITRAK D10.34-50
3
7
12
15
53
56
59
71
74
91
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 161500030009 | Connecting rod assembly | 6; | |
| 3 | 161500030008 | Connecting rod | 1; | |
| 7 | 161500030022 | Cover | 1; | |
| 12 | VG1500030077 | Bushing | 1; | |
| 15 | VG1500030023 | Bolt | 2; | |
| 19 | 161500030009/2 | Connecting rod assembly | 1; | |
| 20 | 161500030008/2 | Connecting rod | 1; | |
| 24 | 161500030022/2 | Cover | 1; | |
| 29 | VG1500030077 | Bushing | 1; | |
| 32 | VG1500030023 | Bolt | 2; | |
| 46 | VG1500030077 | Bushing | 1; | |
| 49 | VG1500030023 | Bolt | 2; | |
| 53 | VG1560037034 | Bushing | 6; | |
| 56 | VG1560037033 | Bushing | 6; | |
| 59 | VG1560037011 | Piston | 6; | |
| 63 | VG1540030005 | Piston rings | 1; | |
| 71 | VG1560030013 | Pin | 6; | |
| 74 | VG1560030012 | Circlip | 12; | |
| 79 | VG1540030007 | Ring | 1; | |
| 80 | VG1540030006 | Ring | 1; | |
| 81 | VG1540030008 | Oil ring | 1; | |
| 91 | VG1099030006 | Piston rings | 6; | |
| 98 | VG1540030005 | Piston rings | 1; | |
| 99 | VG1099030006 | Piston rings | 6; | |
| 107 | VG1099030006 | Piston rings | 6; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
