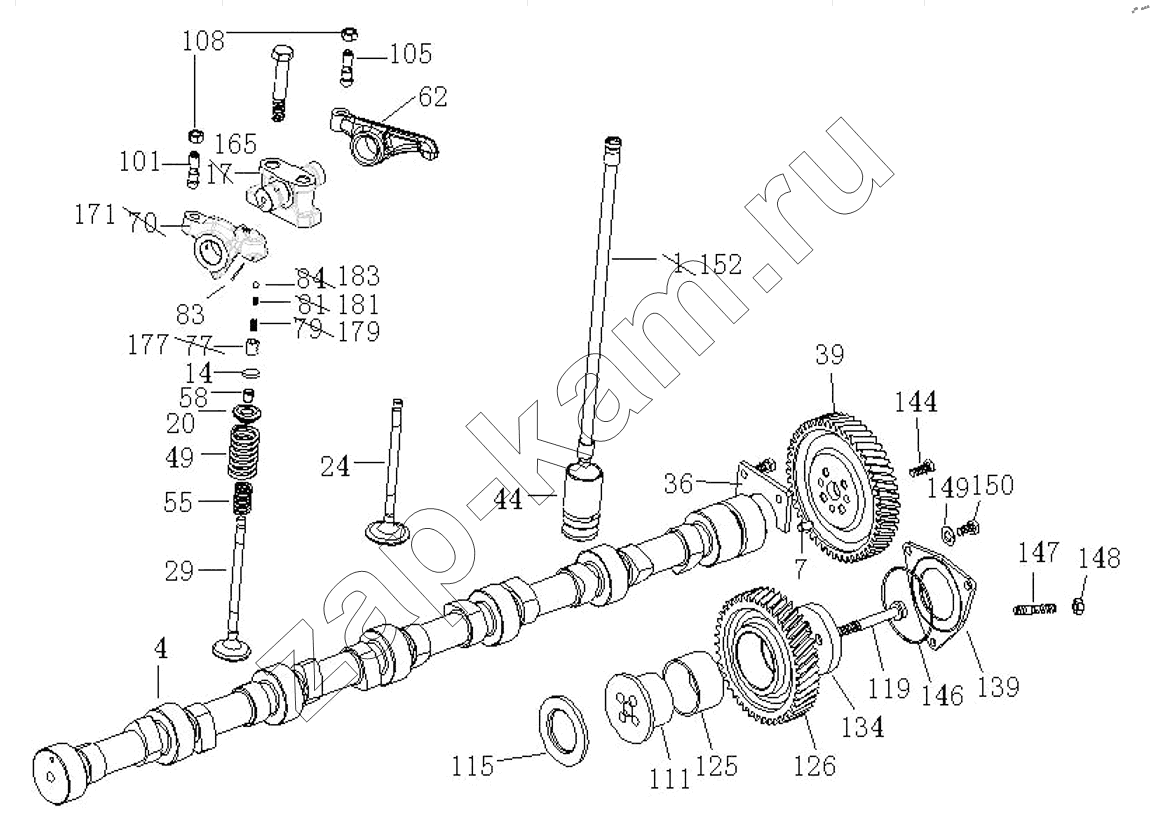

Valve-Gear Mechanism
/ SITRAK D10.34-50
4
4
7
14
20
24
29
36
39
44
49
55
58
62
101
105
108
111
115
119
125
126
134
139
144
146
147
148
149
150
152
165
171
177
179
181
183
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 4 | VG1500050097A | Camshaft assembly | 1; | |
| 4 | VG1500050097 | Camshaft assembly | 1; | |
| 6 | VG1500050096A | Camshaft | 1; | |
| 6 | VG1500050096 | Camshaft | 1; | |
| 7 | 190003901409 | Pin | 1; | |
| 14 | VG1500050105 | Valve cap | 12; | |
| 20 | VG1500050109 | Base | 12; | |
| 24 | VG1560051001 | Inlet valve | 6; | |
| 29 | VG1560050041 | Exhaust valve | 6; | |
| 36 | VG14050133 | Shim | 1; | |
| 39 | VG14050053 | Camshaft timing gear | 1; | |
| 44 | VG1500050032 | Valve tappet | 12; | |
| 49 | VG1500050002 | Valve spring | 12; | |
| 52 | VG14050017 | Spring base | 6; | |
| 55 | VG1500050001 | Valve spring | 12; | |
| 58 | VG1500050025 | Clip | 24; | |
| 62 | VG14050048 | Rocker arm | 6; | |
| 71 | VG1500050043 | Rocker arm | 1; | |
| 73 | VG1500050037 | Plug | 1; | |
| 75 | VG1500050038 | Plug | 3; | |
| 101 | VG1500050017 | Screw | 6; | |
| 105 | VG14050010 | Screw | 6; | |
| 108 | VG2130050065 | Nut | 18; | |
| 111 | VG1540059031 | Shaft | 1; | |
| 115 | VG1540059032 | Gasket | 1; | |
| 119 | VG1560050059 | Bolt | 4; | |
| 123 | VG1560050053 | Gear assembly | 1; | |
| 125 | VG1560050054 | Bushing | 1; | |
| 126 | VG1560050052 | Gear | 1; | |
| 134 | VG1560050045 | Plate | 1; | |
| 139 | VG1560050046A | Cover | 1; | |
| 143 | 190003802399 | Bolt | 2; | |
| 144 | 190003802443 | Bolt | 4; | |
| 146 | 190003120602 | Gasket | 1; | |
| 147 | 190003813414 | Stud | 2; | |
| 148 | 190003871252 | Nut | 2; | |
| 149 | 190003932023 | Wave washer | 3; | |
| 150 | 190003862419 | Screw | 1; | |
| 152 | VG1092050020 | Push rod assembly | 12; | |
| 154 | VG1092050019 | Rod | 1; | |
| 155 | VG1096050031 | Head | 1; | |
| 156 | VG1096050033 | Ball joint | 1; | |
| 165 | VG1500050120 | Rocker arm base | 6; | |
| 171 | VG1500050030 | Rocker arm parts | 6; | |
| 173 | VG1500050031 | Rocker arm assembly | 1; | |
| 174 | VG1500050033 | Rocker arm | 1; | |
| 177 | VG1500050034 | Rocker arm piston | 1; | |
| 179 | VG1500050035 | Piston spring | 1; | |
| 181 | VG1500050036 | Ball spring | 1; | |
| 182 | 190016220001 | Needle | 1; | |
| 183 | 190016210015 | Ball | 1; | |
| 208 | VG1500050121 | Block | 6; | |
| 211 | VG1500050011 | Adjusting screw ass. | 6; | |
| 213 | VG1500050012 | Adjusting screw | 1; | |
| 214 | VG1500050013 | Ball seat | 1; | |
| 219 | Q150B12100TF2 | Bolt | 12; |
