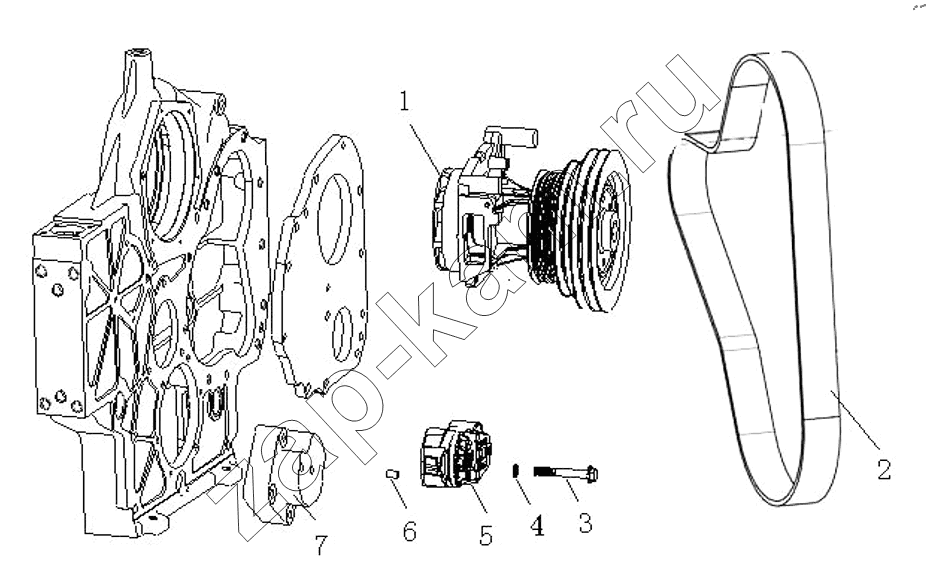

Water pump and fan
/ SITRAK D10.34-50
1
2
3
4
5
6
7
7
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | VG1500060051 | Water pump assembly | 1; | |
| 2 | VG2600020226 | Belt | 1; | |
| 3 | Q150B1625 | Bolt | 1; | |
| 4 | 190003930271 | Washer | 1; | |
| 5 | VG2600060313 | Tensioner | 1; | |
| 6 | Q5211022 | Pin | 1; | |
| 7 | VG1034060018 | Tensioning wheel permanent seat | 1; | |
| 7 | VG1034060006 | Tensioning wheel permanent seat | 1; | |
| 8 | 190003802424 | Bolt | 6; | |
| 9 | 190003888451 | Nut | 6; | |
| 10 | VG140608 | Gasket | 1; | |
| 11 | 190003800467 | Bolt | 1; | |
| 12 | 190003802424 | Bolt | 1; | |
| 13 | 190003932023 | Wave washer | 2; | |
| 14 | VG1096060033 | Hose | 1; | |
| 15 | 190003989308 | Hose clamp | 2; | |
| 16 | 190003802432 | Bolt | 1; | |
| 17 | 190014040007 | Washer | 1; | |
| 18 | MQ6-03216-8415 | Шестигранный фланцевой болт | 1; | |
| 19 | VG1560060023 | Nozzle | 1; | |
| 20 | VG1034060009 | Connecting Piece | 1; | |
| 21 | VG1034060005 | Bracket | 1; | |
| 22 | Q150B1090 | Bolt | 1; | |
| 23 | 190014070002 | Washer | 1; | |
| 24 | VG14060024 | Gasket | 1; | |
| 25 | VG2600060460 | Grease nipple | 1; | |
| 26 | Q1200840 | Stud | 2; | |
| 27 | Q41808 | Wave washer | 2; | |
| 28 | Q1841040 | Bolt | 1; | |
| 29 | Q41810 | Волнообразная пружинная шайба | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
